JBL

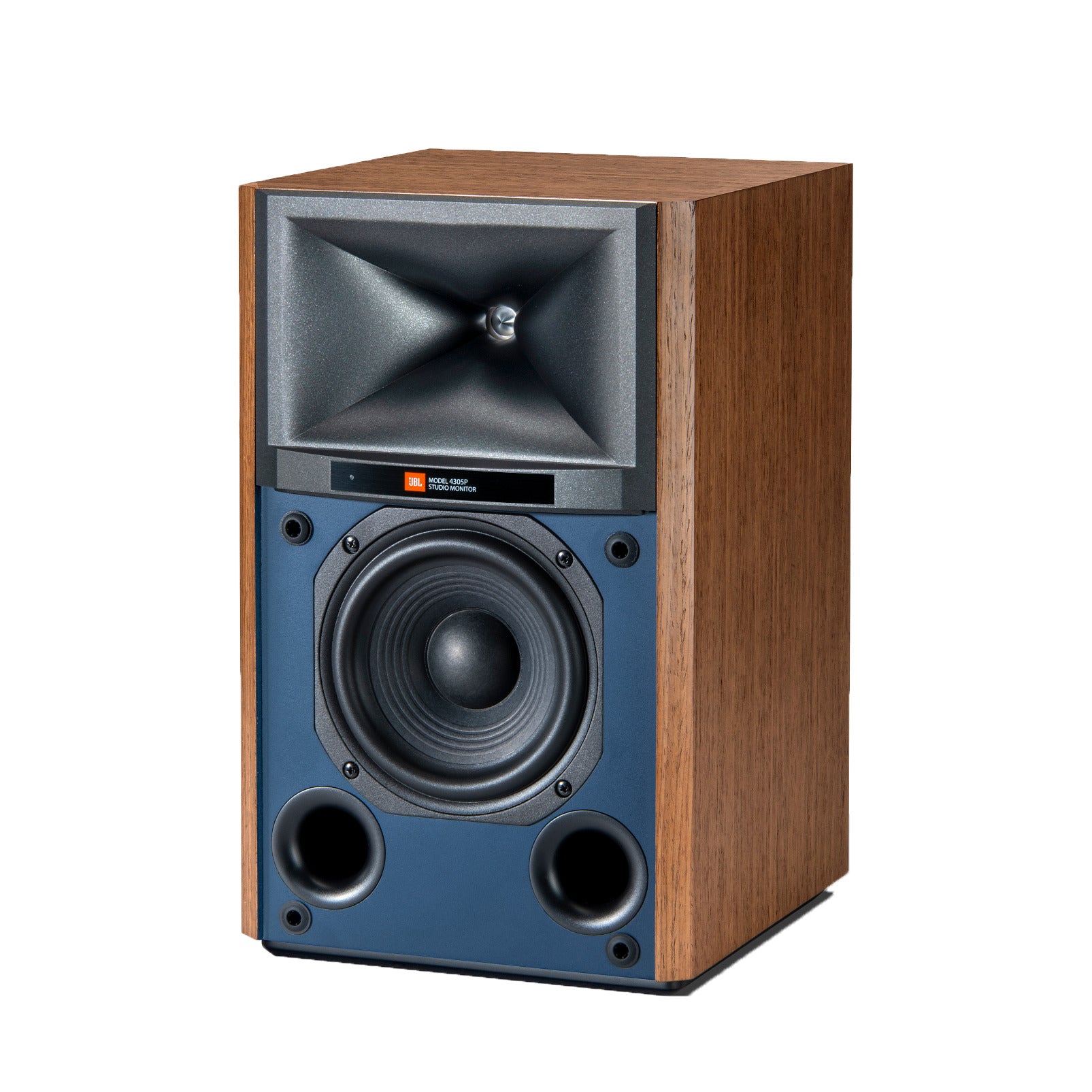

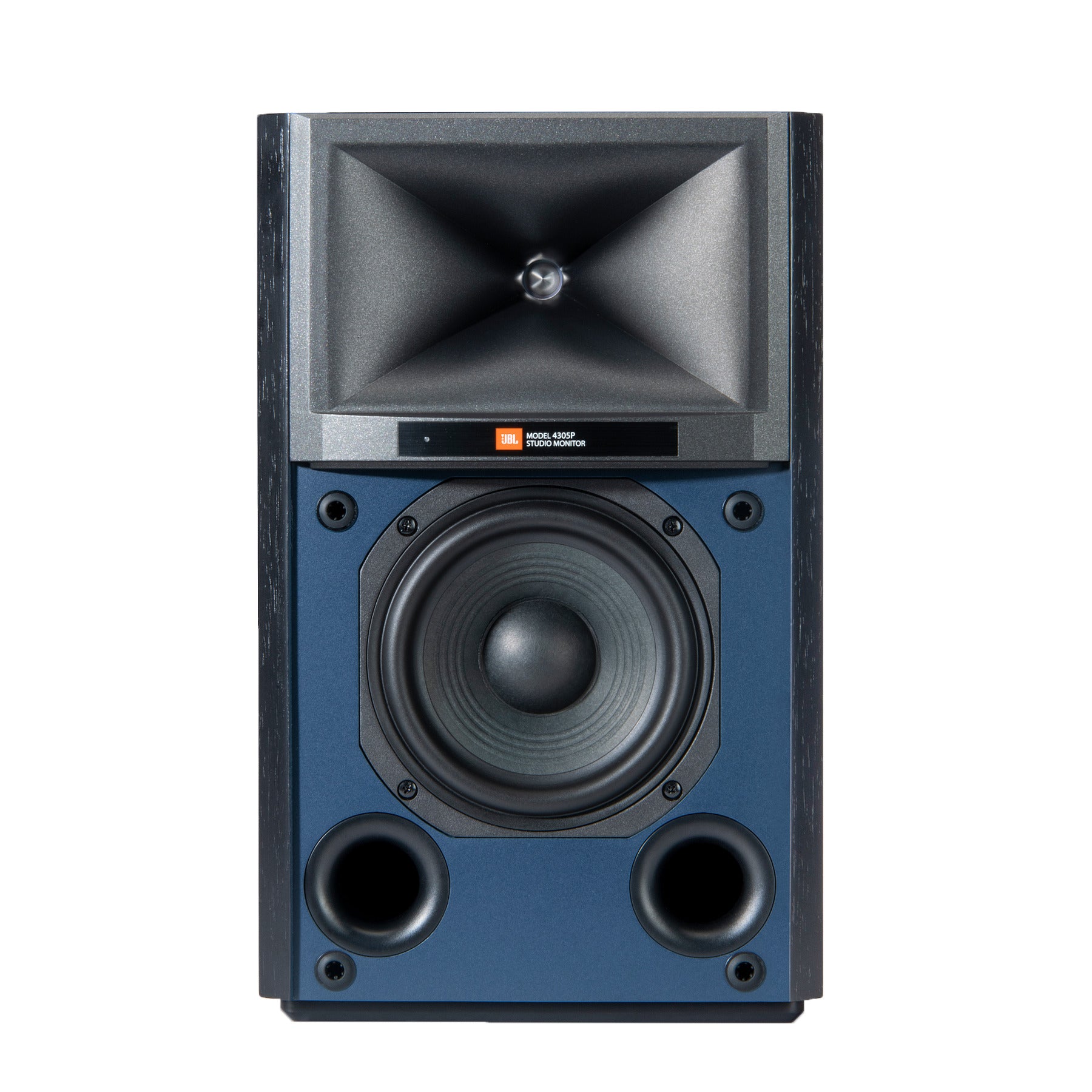

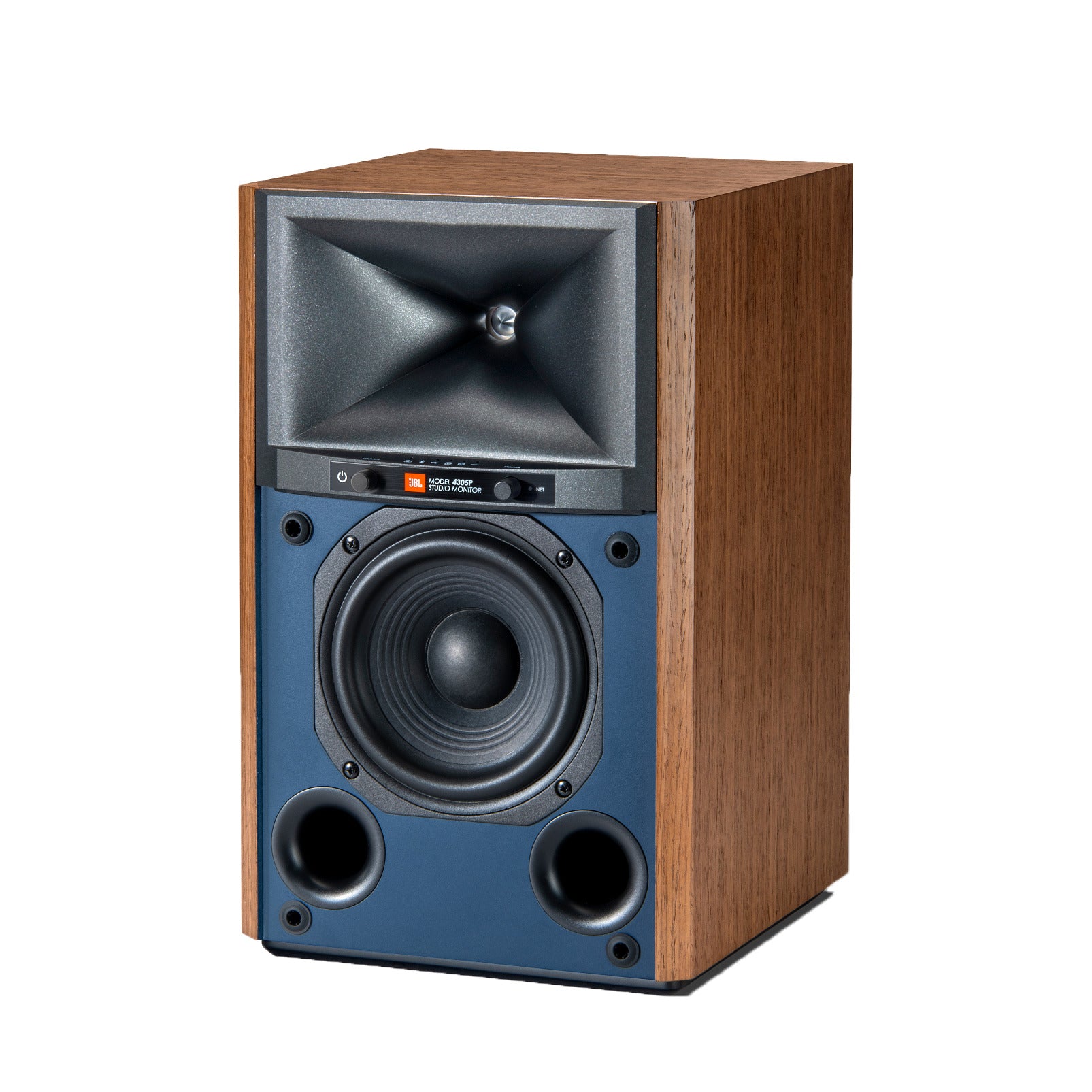

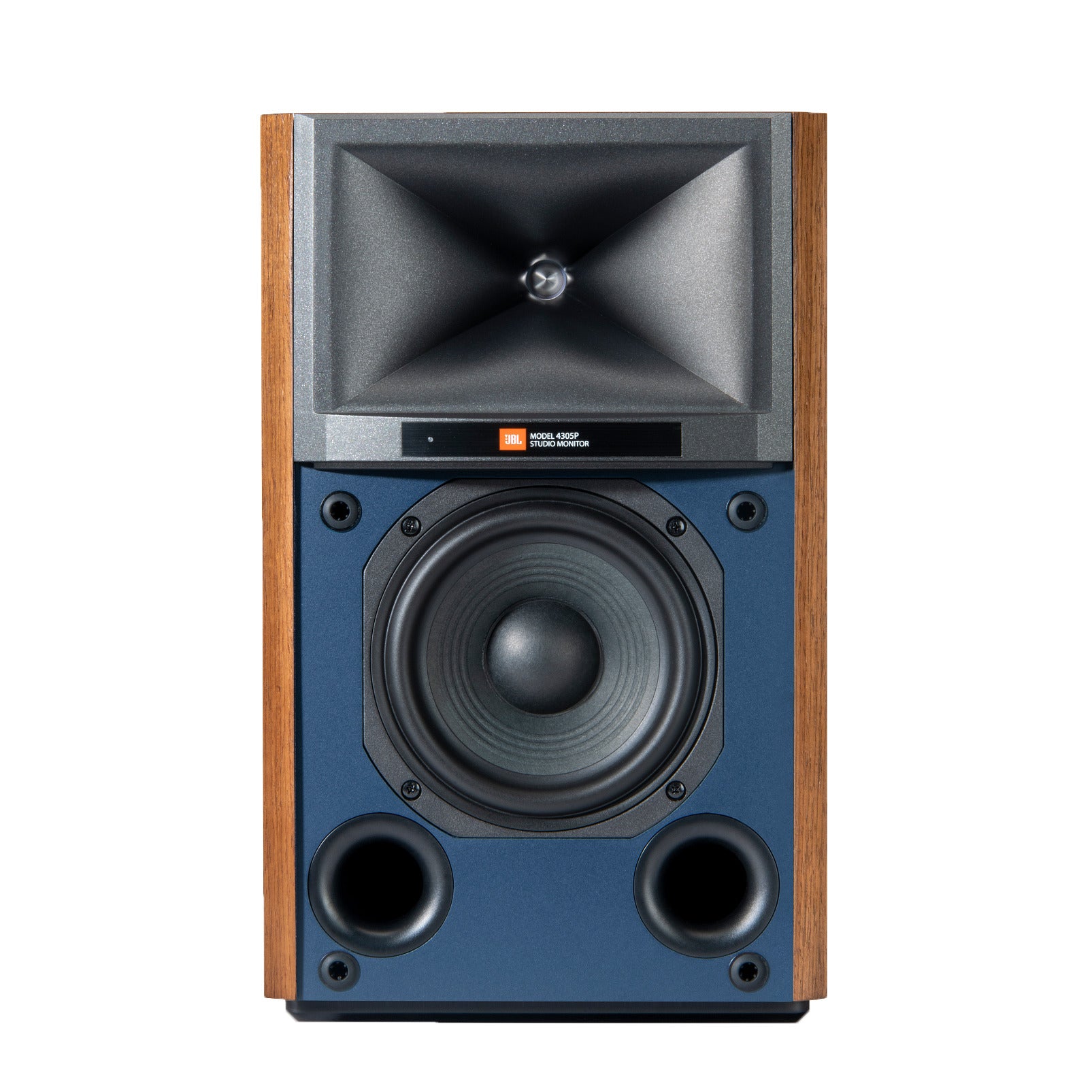

4305P Studio Monitor
Powered Bookshelf Loudspeaker System

The JBL 4305P Studio Monitor is a completely self-contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono input for use with balanced or unbalanced signals.
Features

Wireless Streaming Audio via Chromecast, AirPlay 2, Roon Ready and Bluetooth
Extensive Digital and Analog Connectivity
24-Bit/192kHz High-resolution DAC

Patented JBL Driver Technologies:

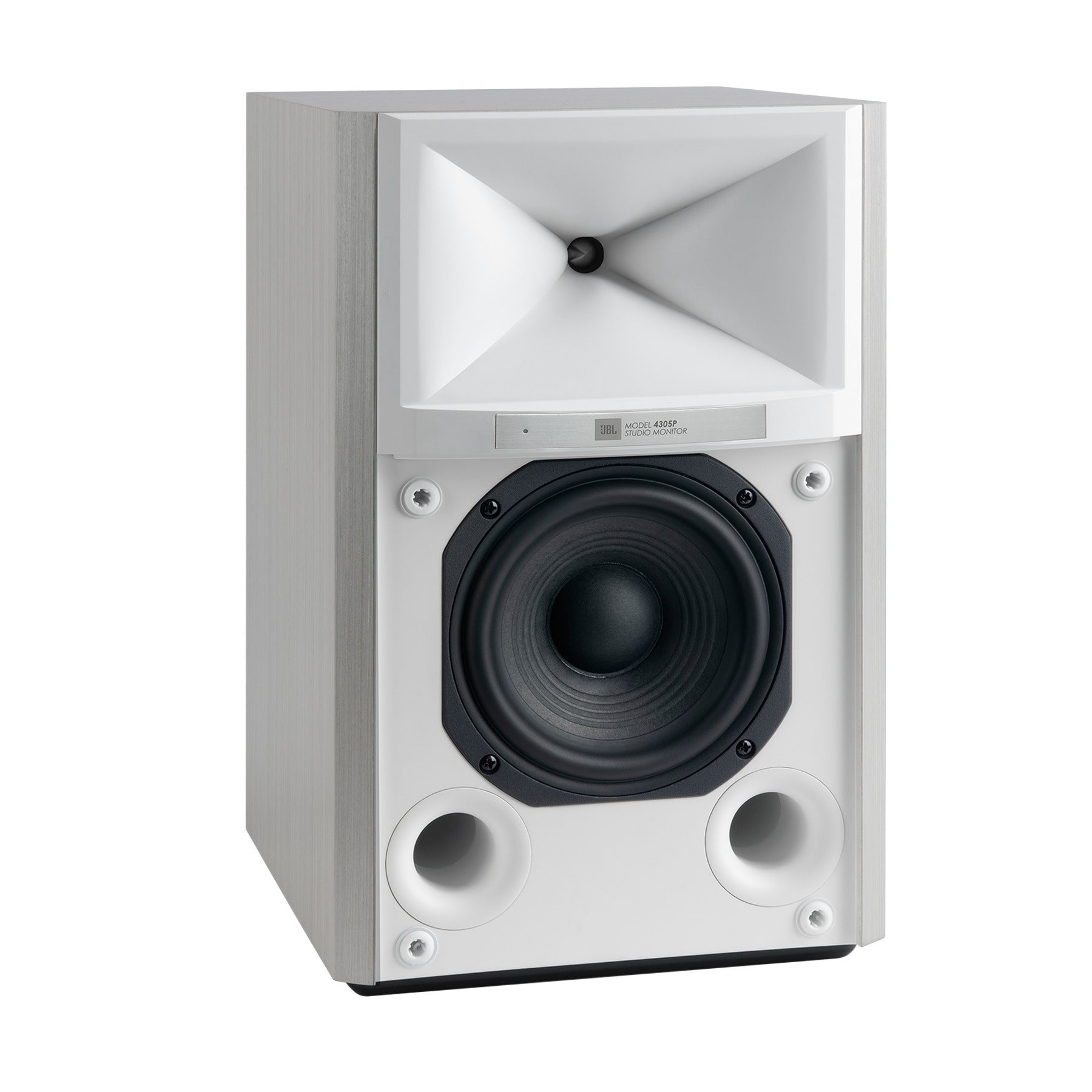

2410H-2 / 1-inch (25mm) Compression Driver with High-Definition Imaging™ Horn

JW130P-4 / 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames

300W Total RMS System Power

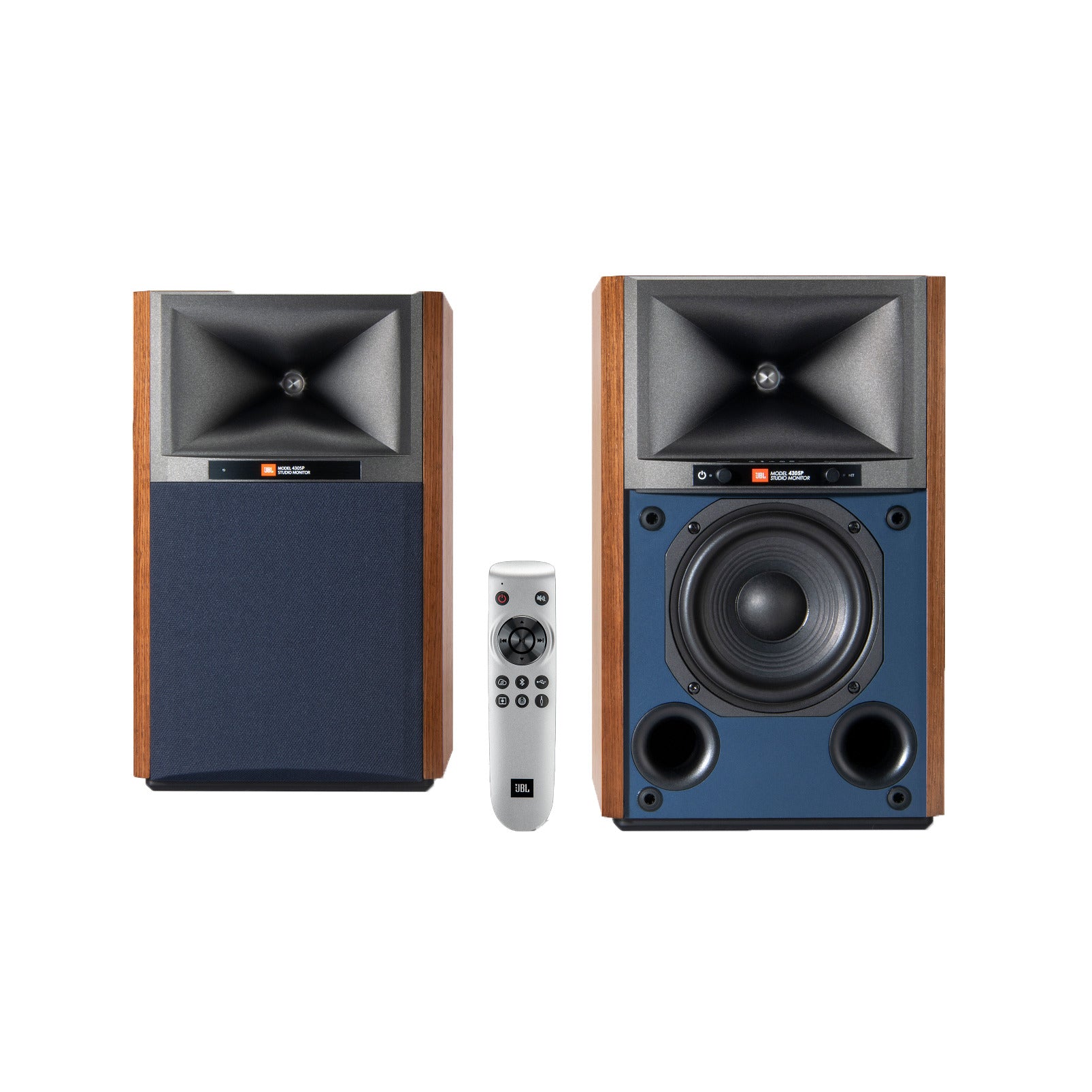

Bluetooth Wireless Remote Control

Premium Wood Veneer Cabinet Finish
Speaker Type
Compact, Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity
Low Frequency Driver Size and Material
JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
High Frequency Driver Size and Material
2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns
Recommended Amplifier Power
300W Class D System Power, 150W RMS per Speaker (25W per HF Compression Driver + 125W per LF Woofer)
Audio Resolution
Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks)
Frequency Response
44 Hz-40 kHz (-6 dB)
Crossover Frequency
1.7 kHz
Dispersion
90° Horizontal x 60° Vertical (2kHz to 20kHz)
Sound Controls

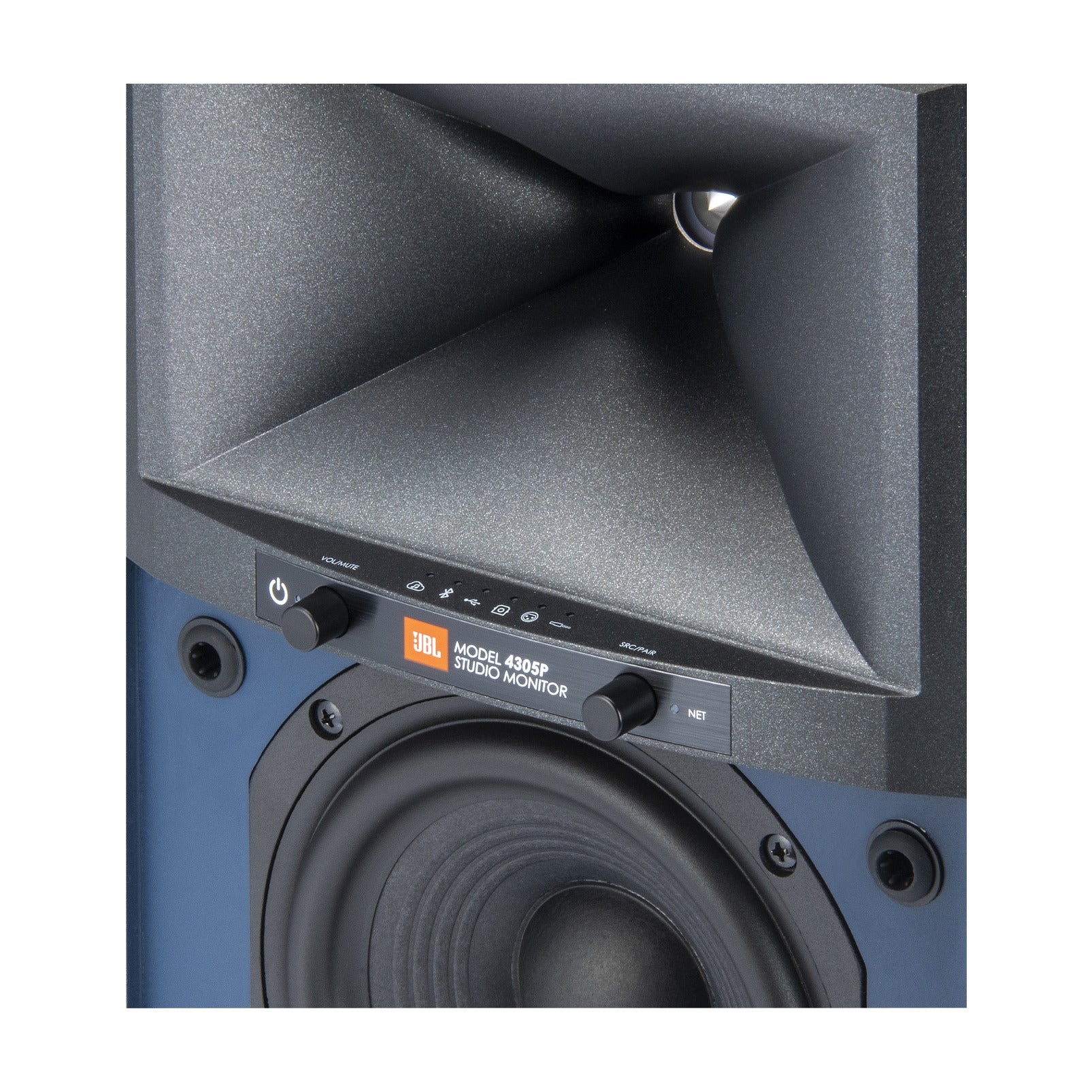

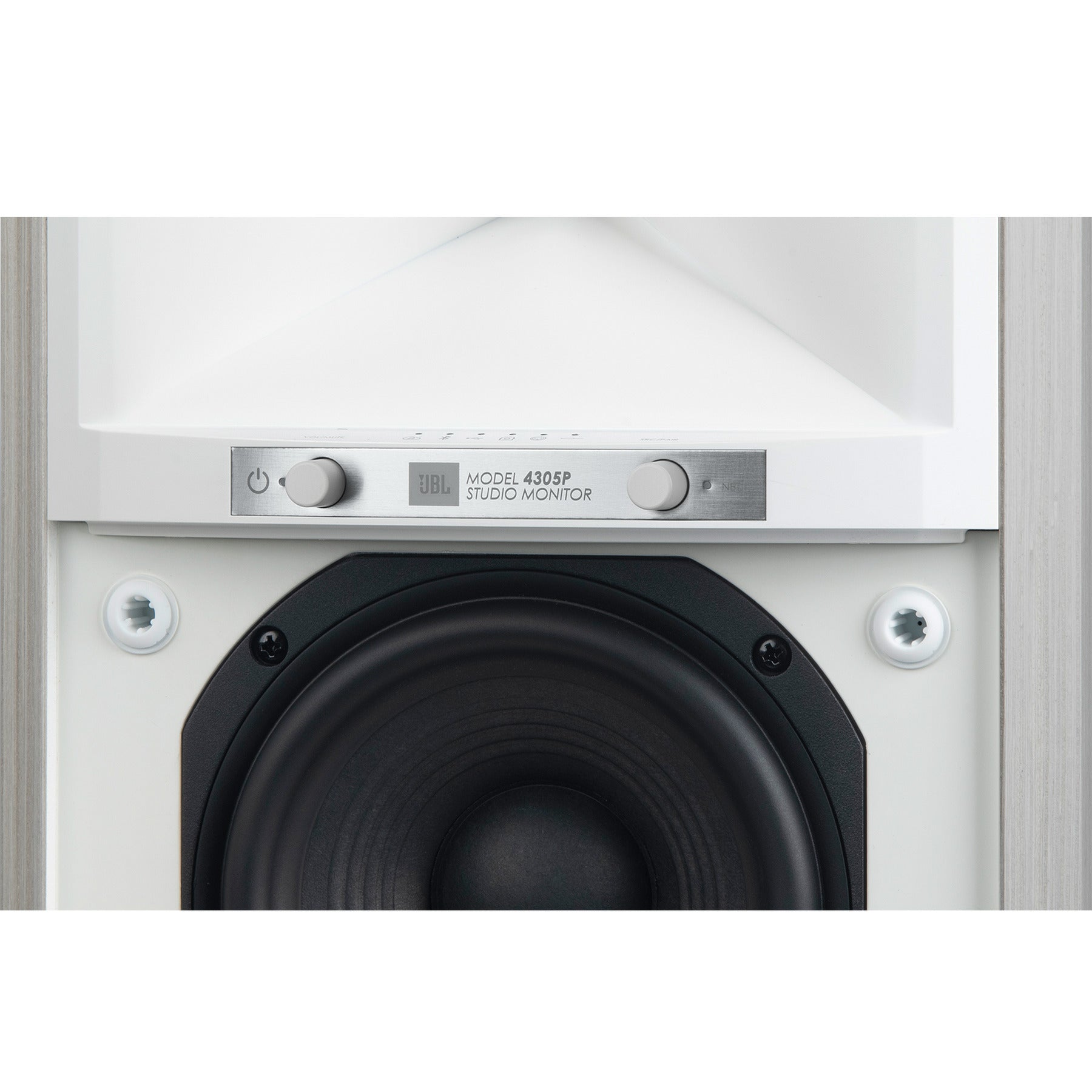

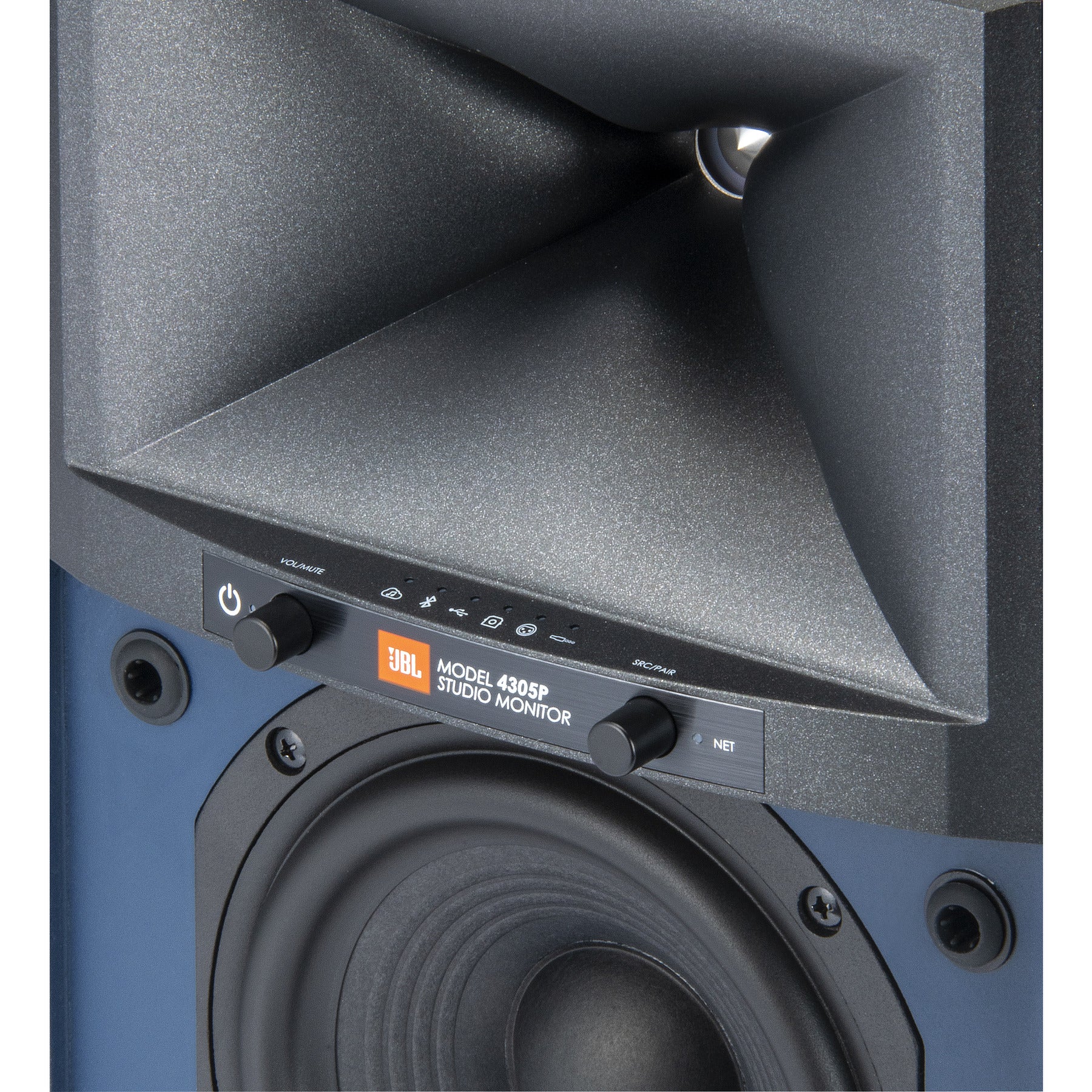

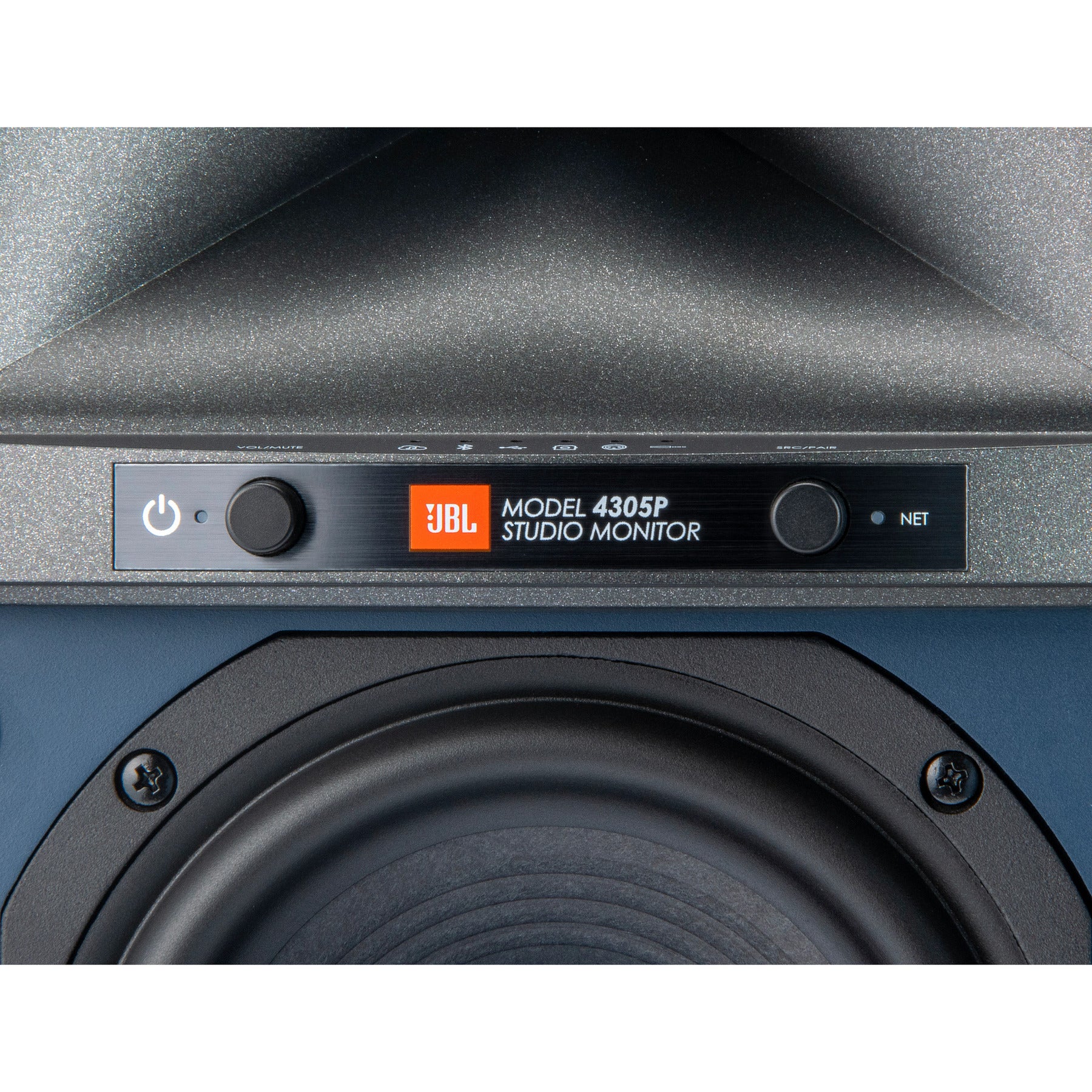

Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)
Wireless Inputs
WiFi streaming, Bluetooth 5.1

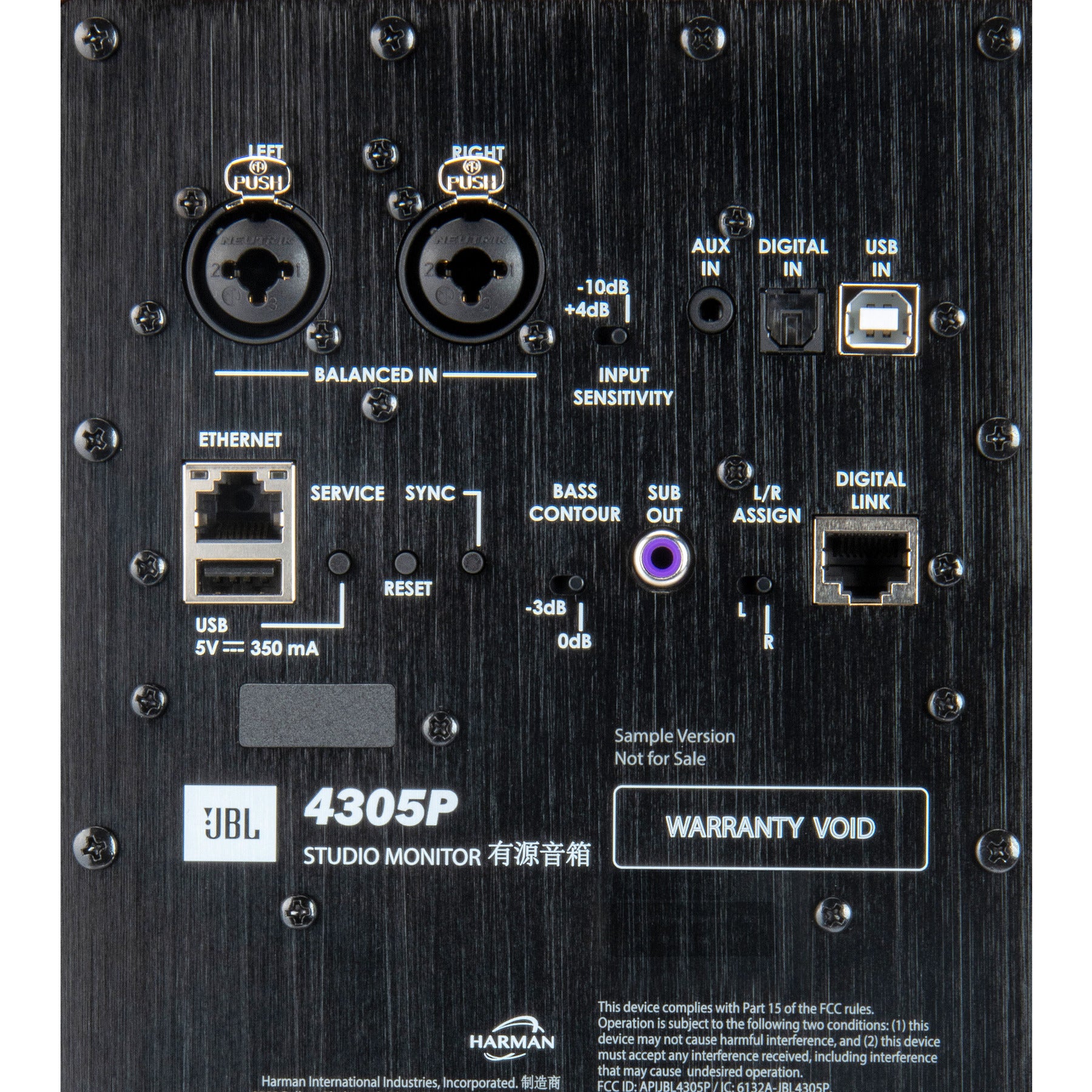

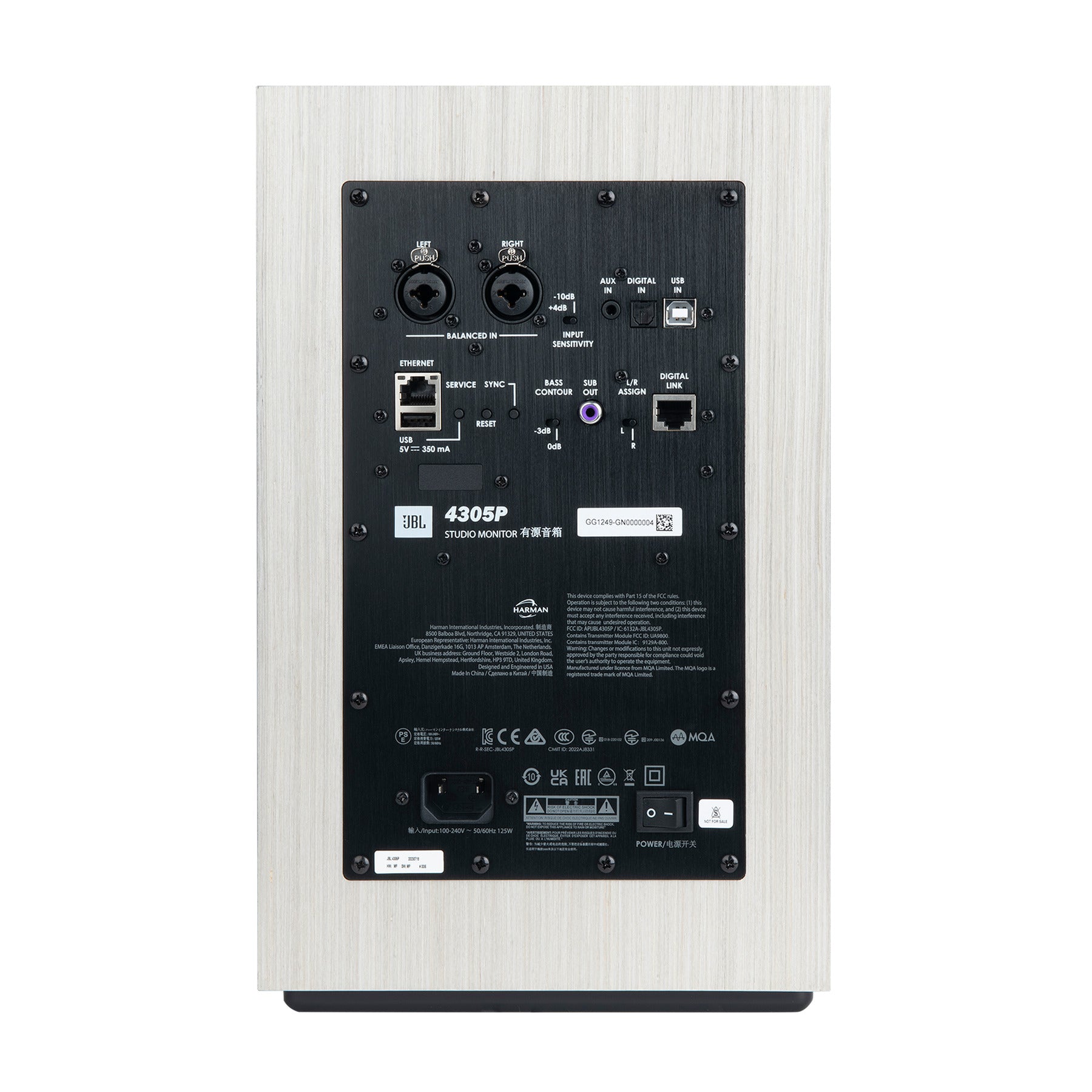

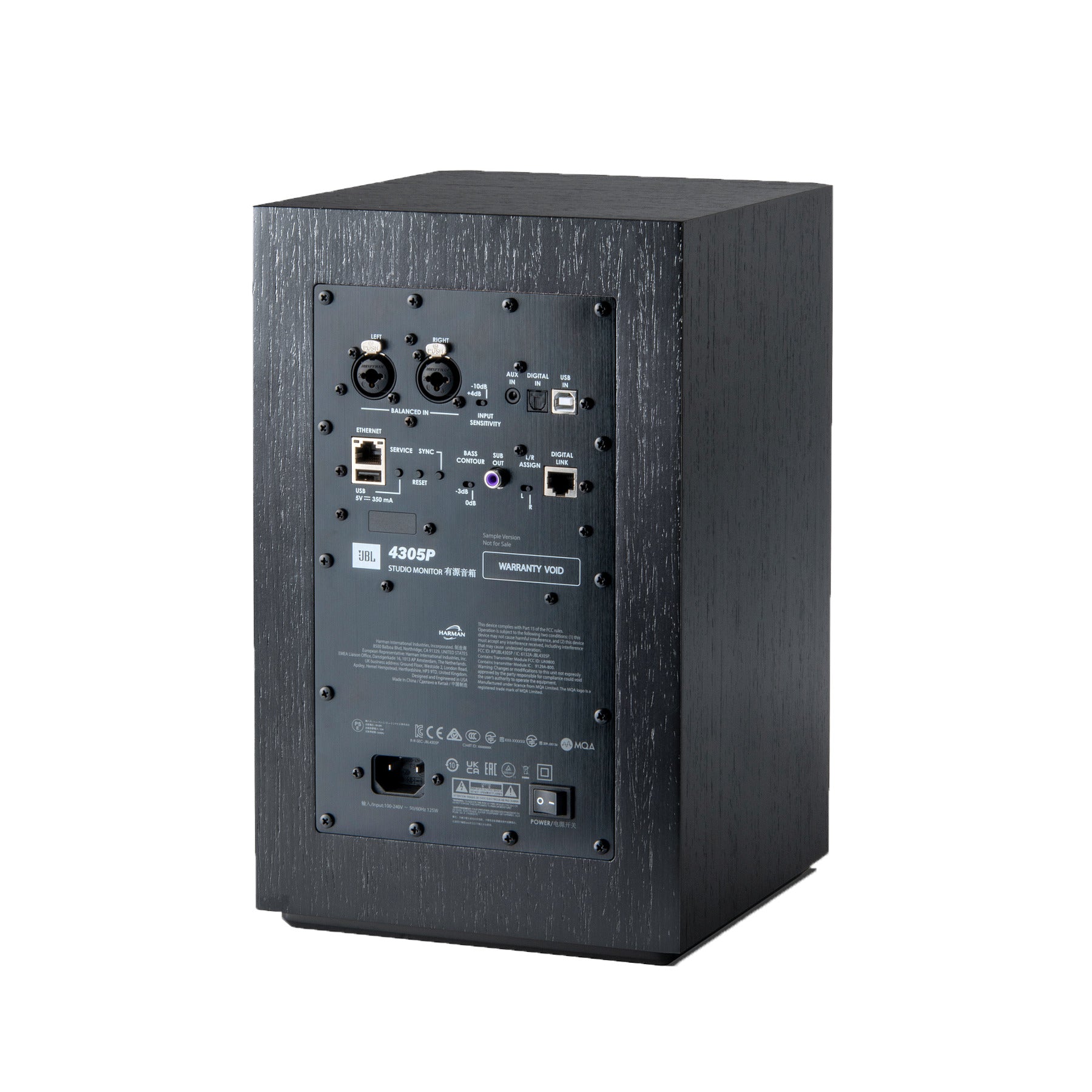

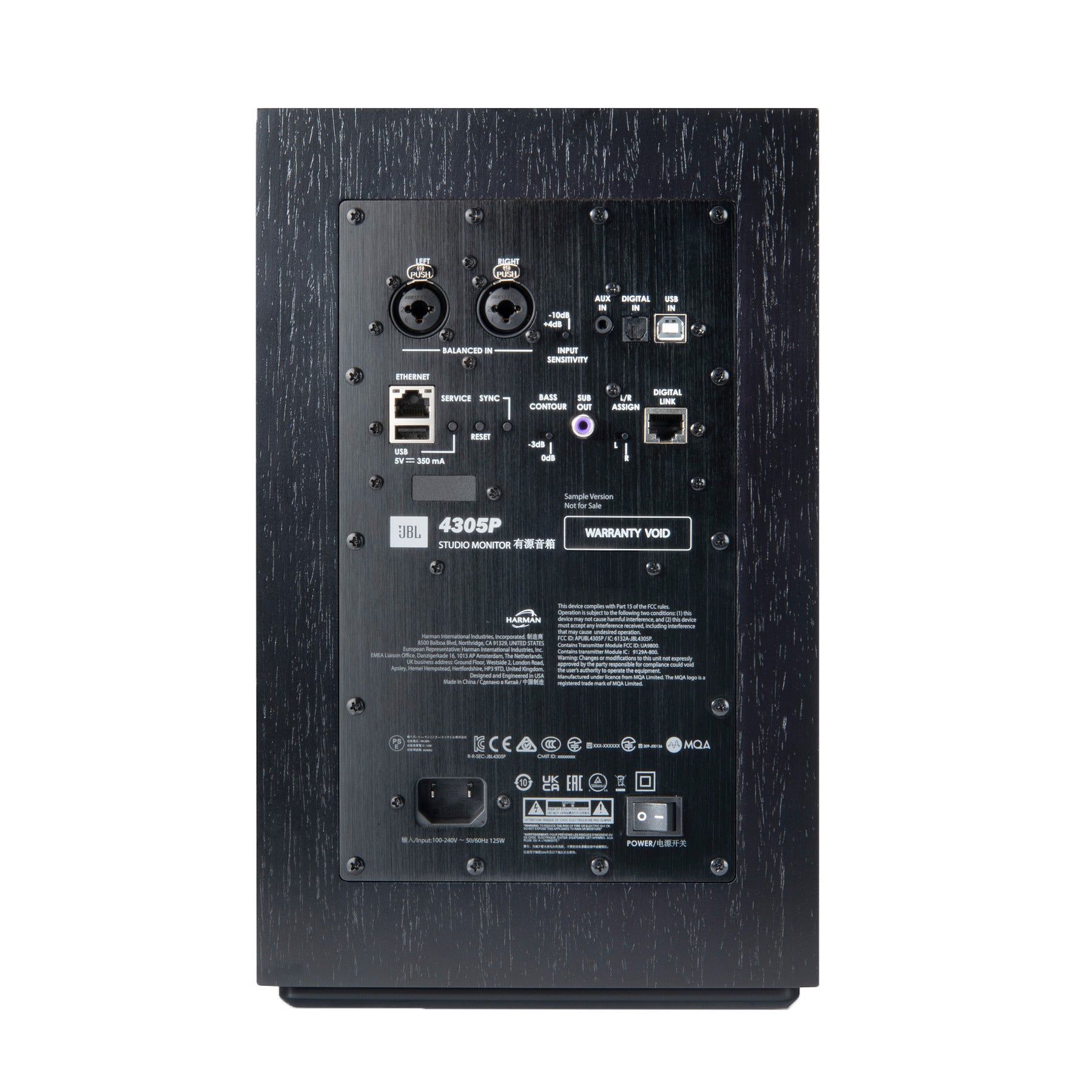

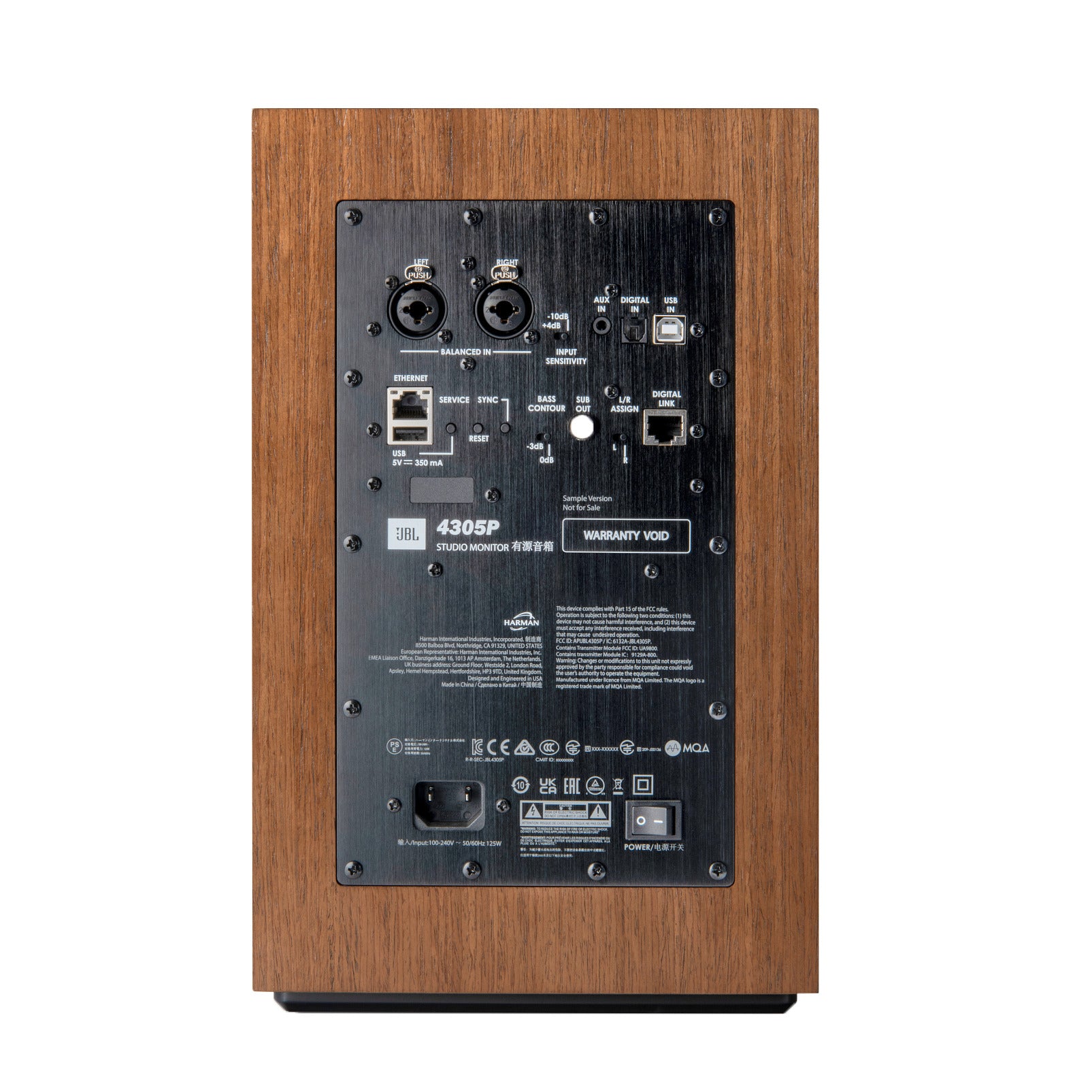

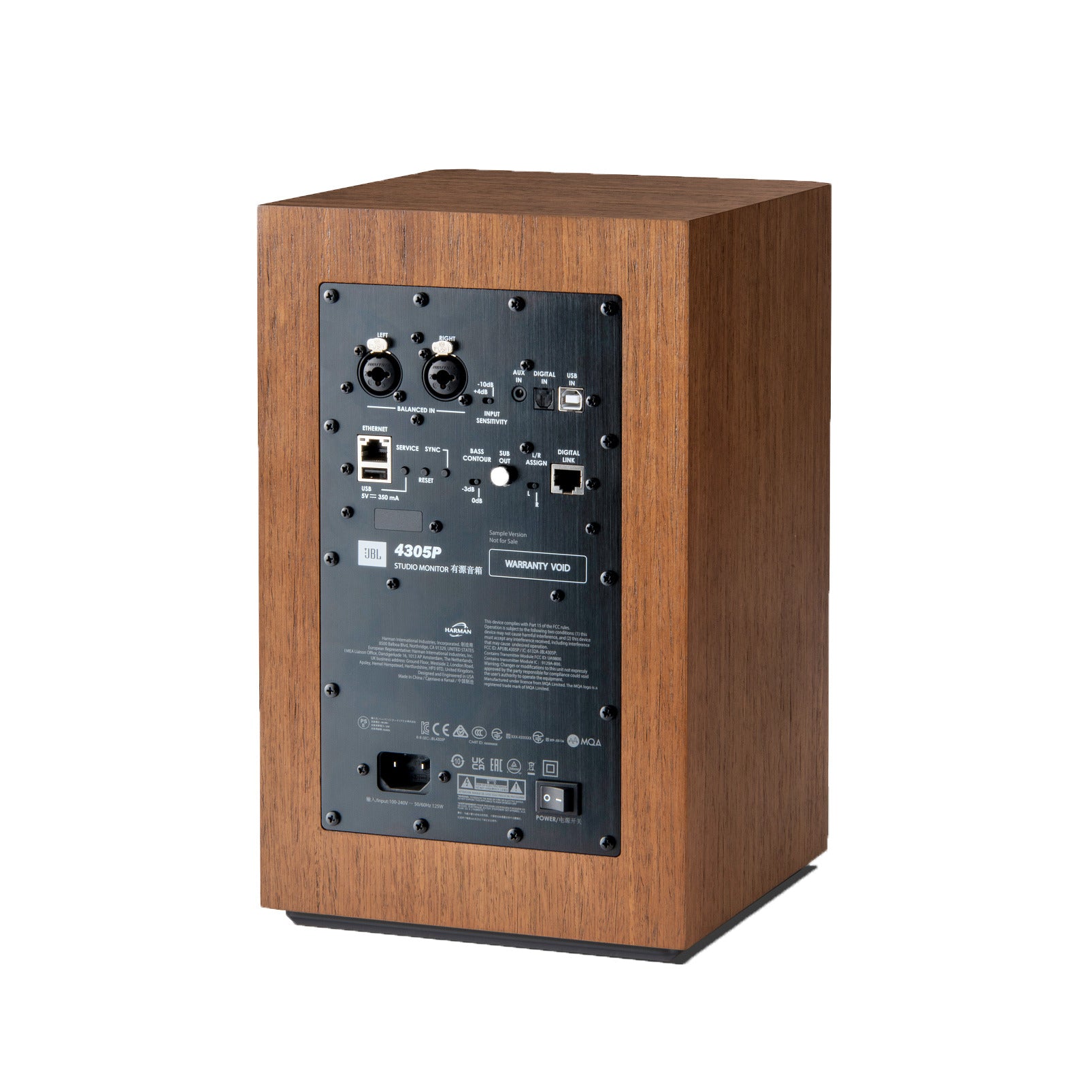

Wired Inputs
Analog - XLR/¼" Combo and 3.5mm stereo, Digital - Asynchronous USB-B and Toslink/Optical
Wired Inputs, Digital
Asynchronous USB-B and Toslink/Optical
Supported Digital Audio Sample Rates (PCM 2CH)
Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF - Up to 192kHz Bluetooth - Up to 48kHz
Music Formats Supported (Local Media)
AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA
Subwoofer Output
Autosensing w/ Auto-engage of 80Hz High Pass Filter

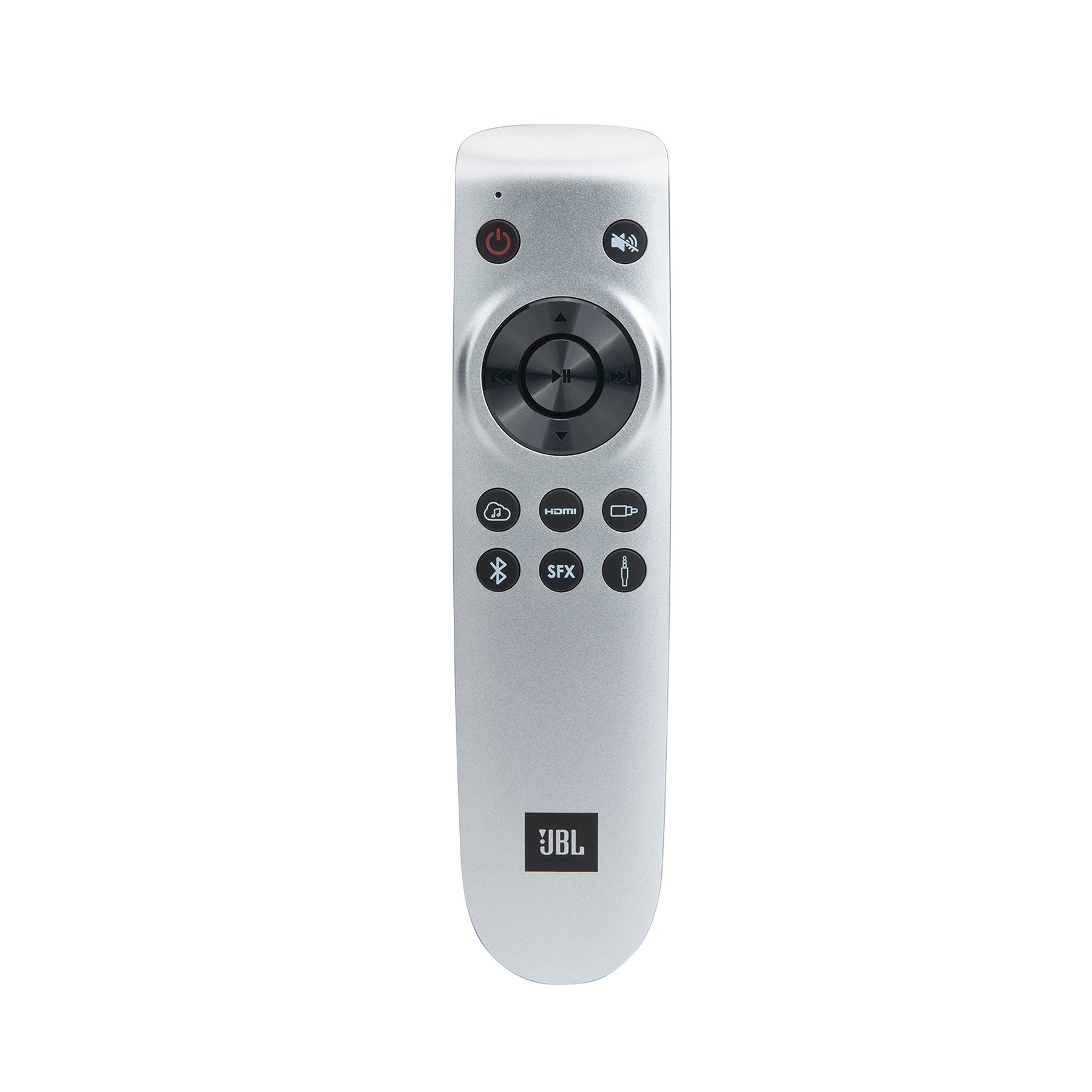

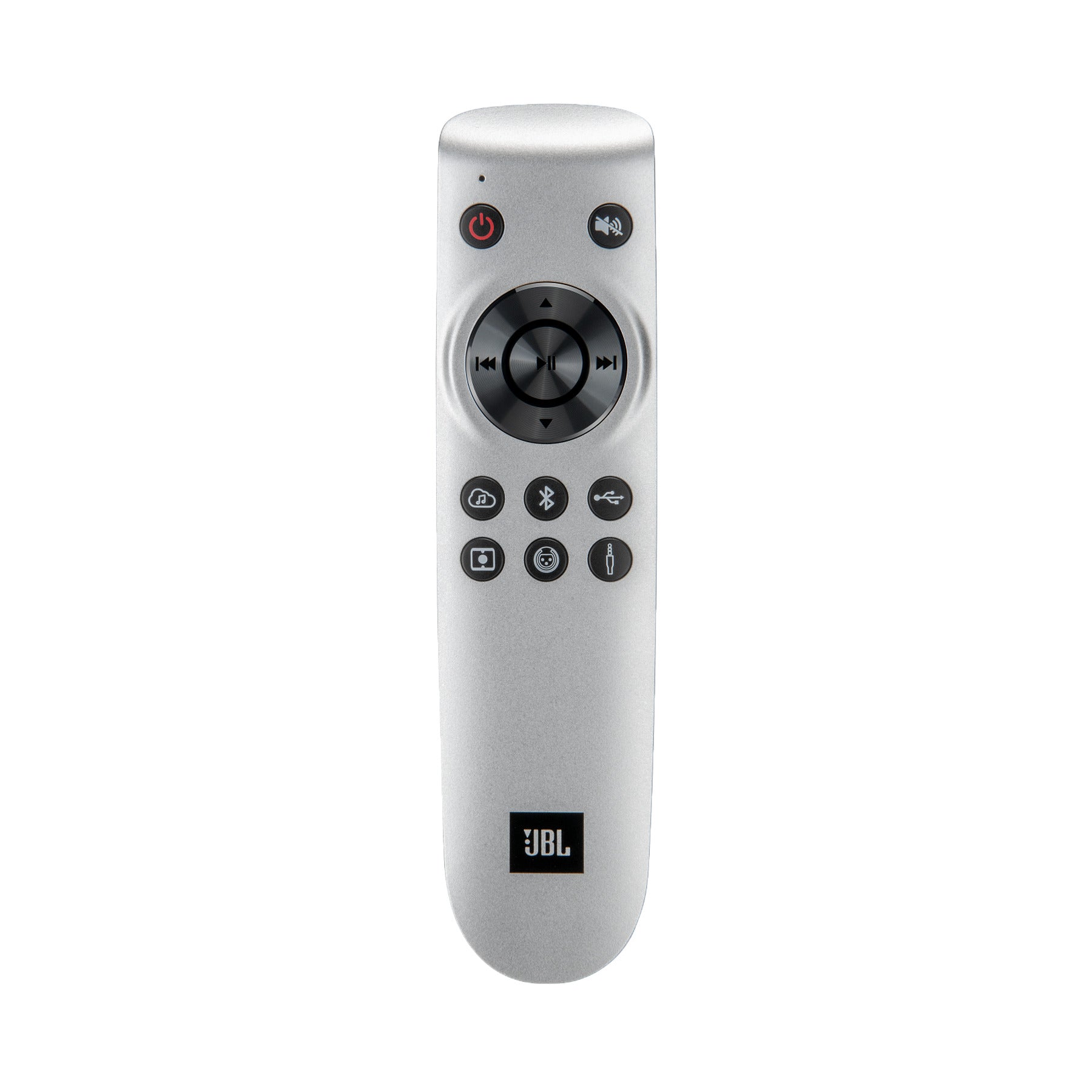

Remote Control Type
BTLE Wireless
Bluetooth Audio
Version 5.1, Profiles - SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
Bluetooth Profiles
SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)
Enclosure

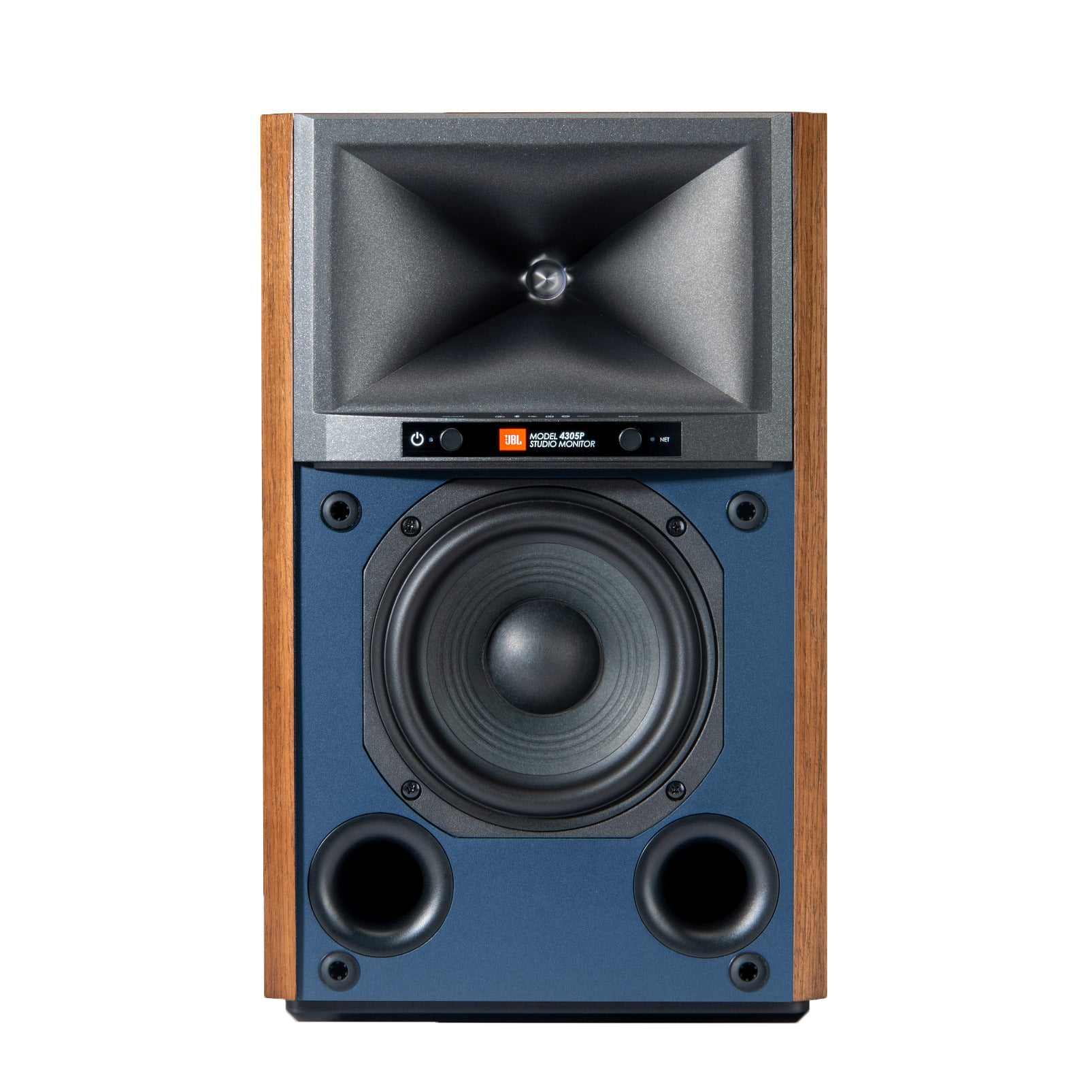

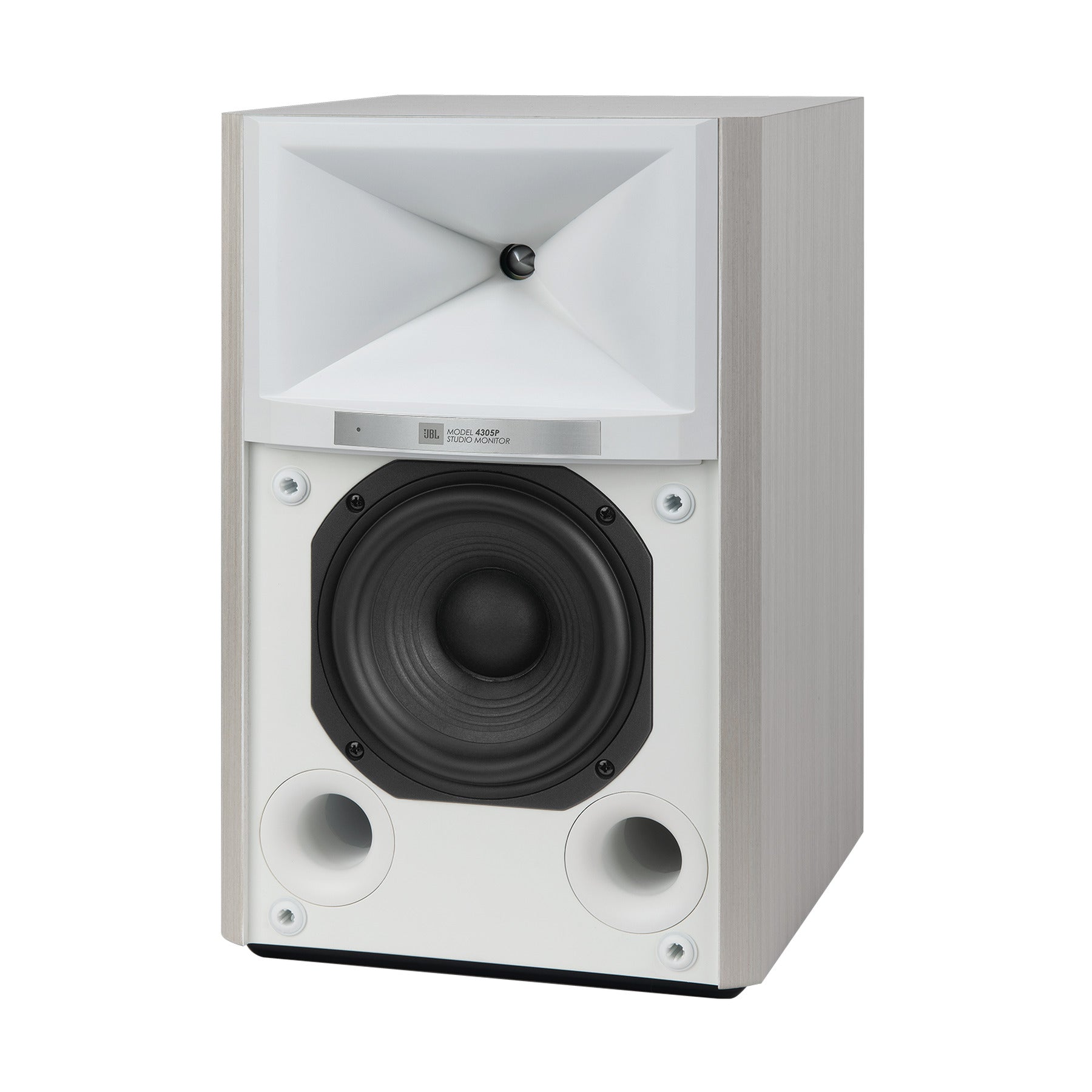

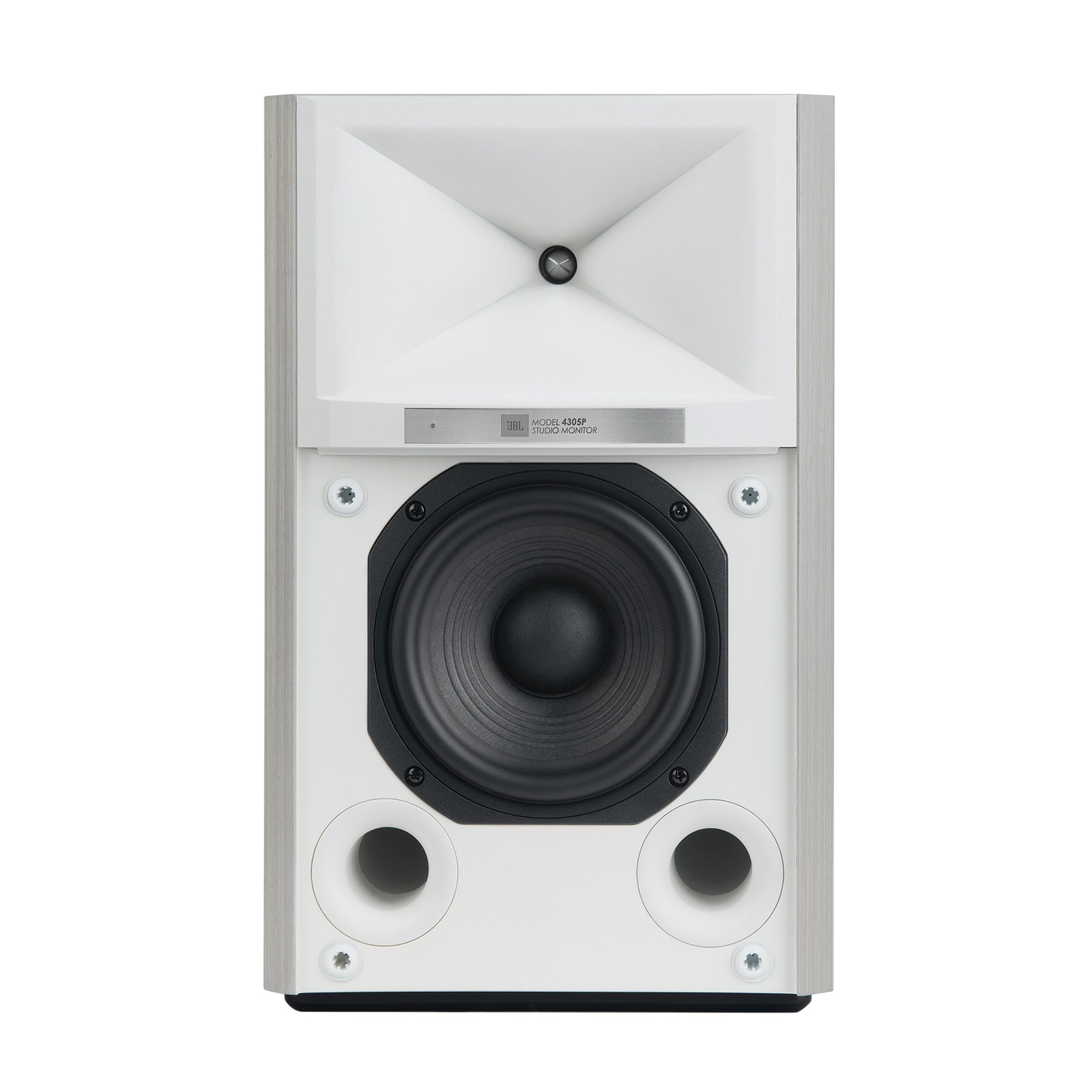

Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, White Aspen, Furniture-Grade Wood Veneer

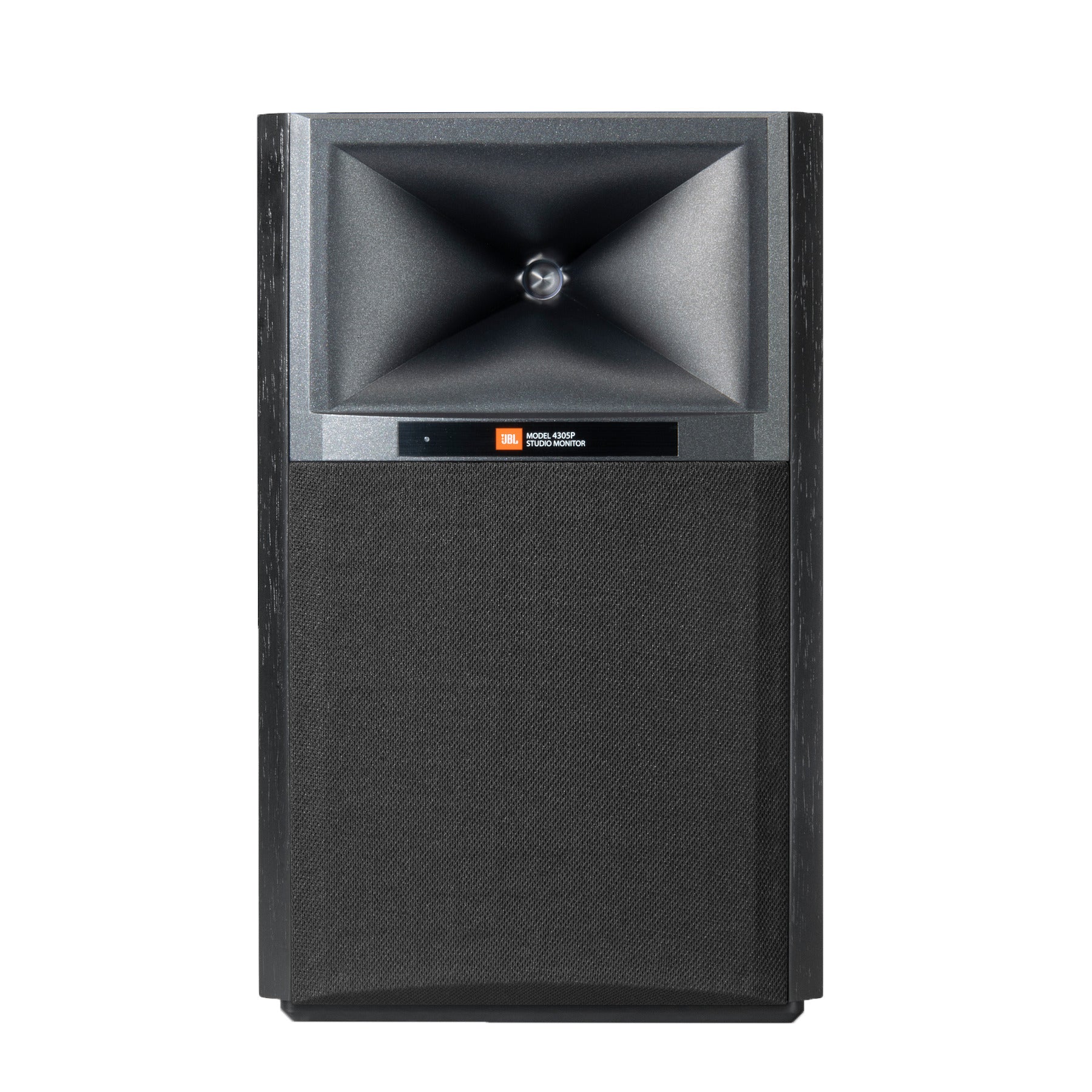

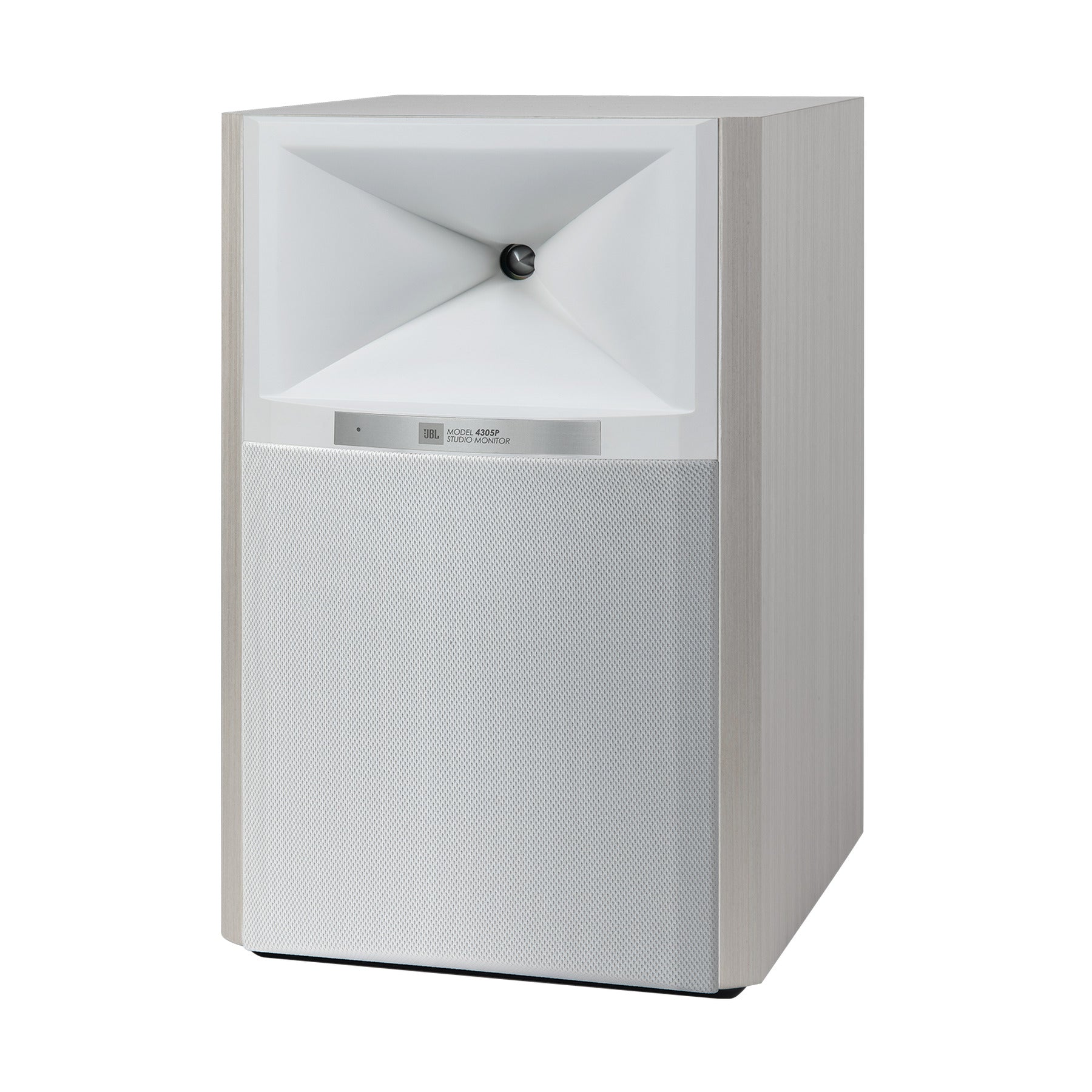

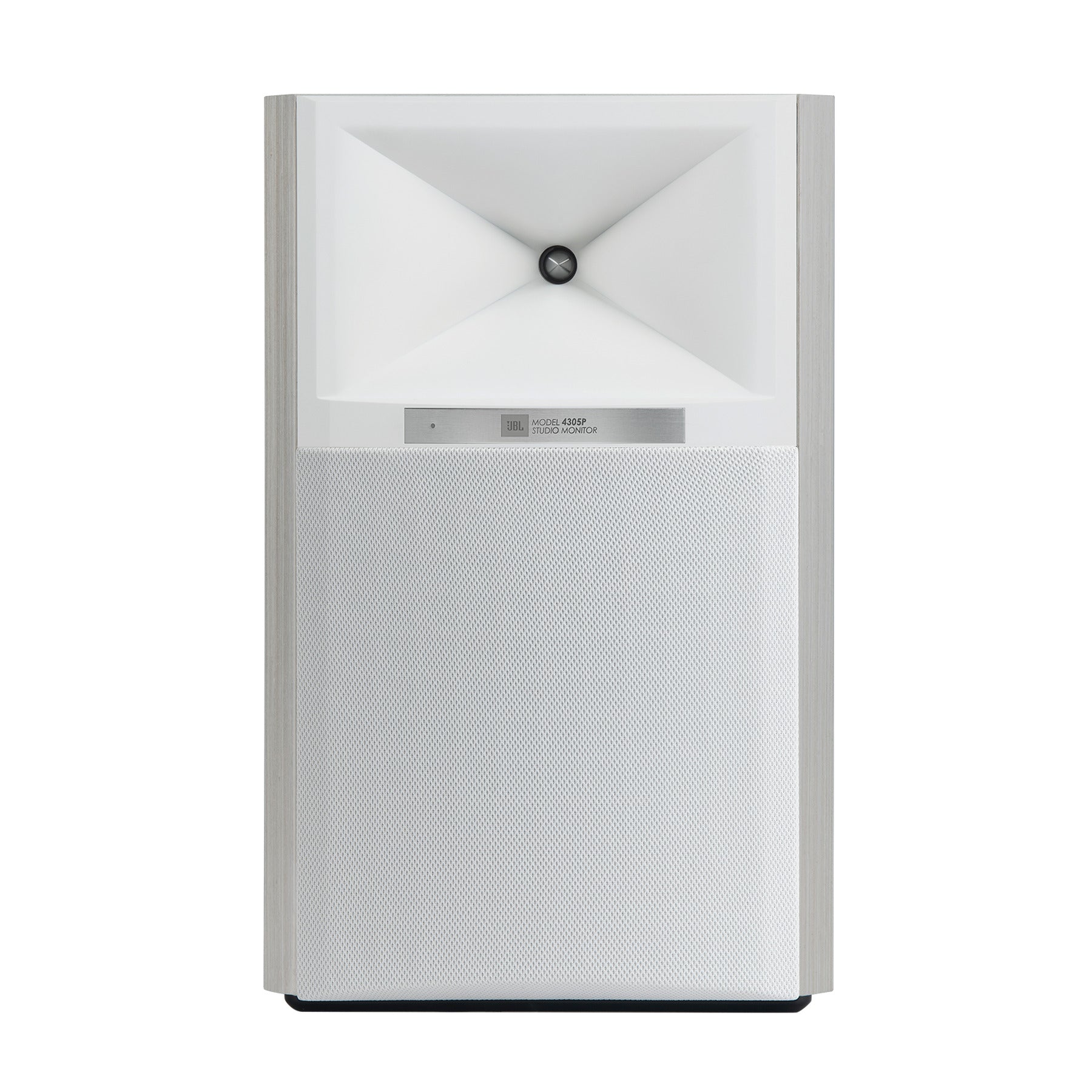

Grille

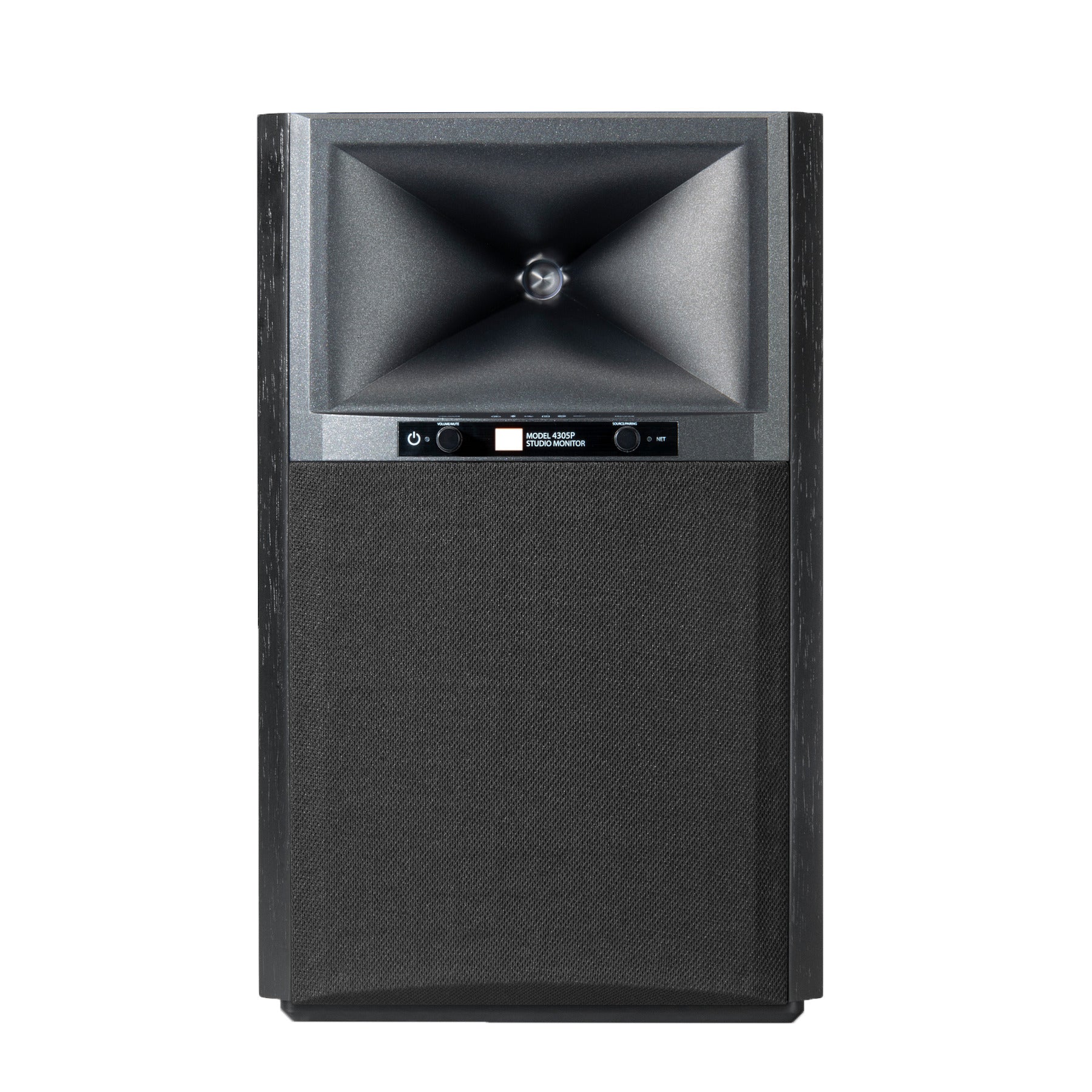

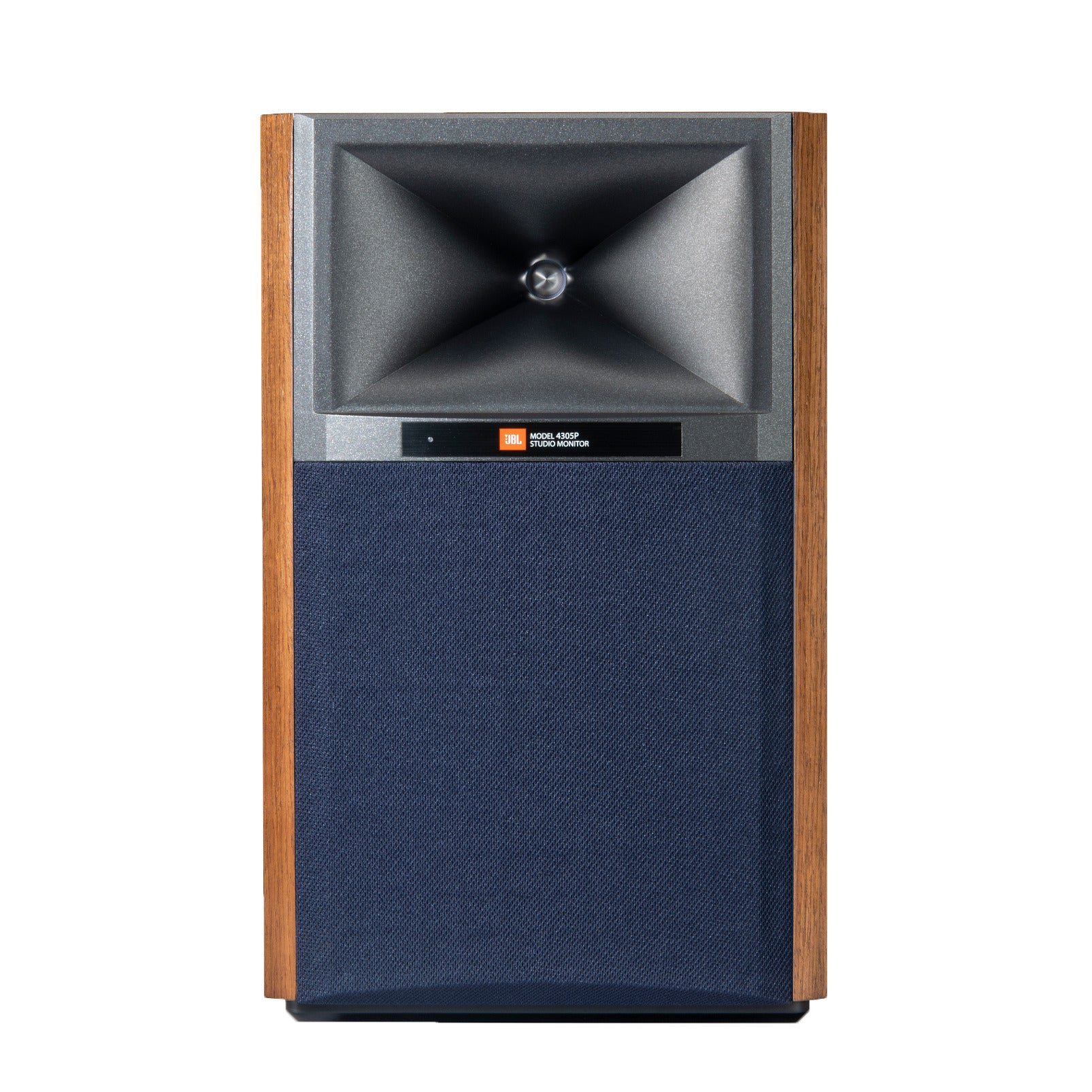

Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), White (with Matte White Cabinet) Acoustically Transparent Cloth Grille
Net Speaker Dimensions with grille
13.2” H x 8.3” W x 8.8” D (336mm x 210mm x 223.3mm)
Gross Shipping Dimensions
23.5” L x 11.4” W x 18.0” H (597mm x 290mm x 458mm)
Gross Shipping Weight
36.5 lbs (16.6 kg)
AC Input Voltage
100 - 240 VAC (+/-10%), 50/60Hz
Net Speaker Weight
Primary - 15.0 lbs (6.8kg), Secondary - 14.1 lbs (6.4kg)
Shipping Units of Measure
System Pairs
