IsoTek EVO3 Super Titan Power Conditioner
Colour/Amp
IsoTek EVO3 Super Titan Power Conditioner
Black 20A
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: United Kingdom
EVO3 SUPER TITAN
EVO3 Super Titan is the ultimate statement in high-current power conditioning technology, delivering extremely low-impedance, high-current power conditioning for high-end power amplifiers, with a transient ability of 35,500W. Super Titan is the world’s most powerful audiophile mains conditioner.
-
Removes both Common Mode and Differential Mode mains noise.
-
RFI reduction 85dB.
-
Independent outlets – no outlets are connected together, stopping Differential Mode mains noise cross-contamination.
-

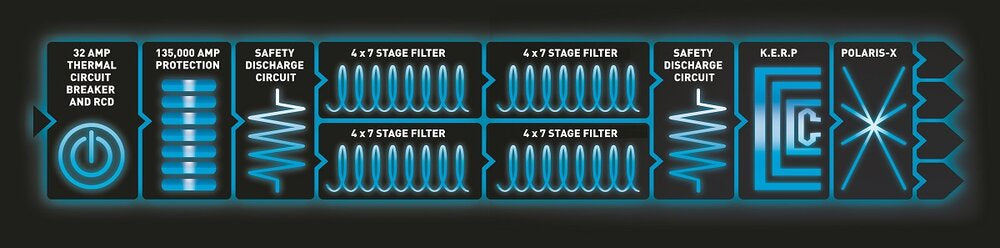

Unique conditioning network incorporating a group of four seven-stage filters in a series parallel configuration, delivering extremely low-impedance, high-current power.
-
KERP© (Kirchoff’s Equal Resistance Path) ensures equal resistance and equal power delivery across all outlets.
-
135,000A of instantaneous protection, featuring IsoTek’s unique sequential protection system with earth fault protector.
-
Four outlets delivering 7,360W continuous power with 35,500W transient ability.
-
Unique ISIS© isolation system – totally eliminates resonance from the sub-chassis of Super Titan.
-
Available with 32A, UK, EU and US outlet.
FEATURES
-
Ultimate high-current low impedance power conditioner
-
Suitable for all audio and AV components especially the largest power amplifiers
-
4 high quality outlets at 32A or standard socket configuration
-
Improved multi-award winning Direct Coupled Design© circuit
-
Full resonance control isolation (ISIS) rack system built in
-
UK, EU, US, Australian and Swiss specifications available
Design
IsoTek’s EVO3 Super Titan represents (probably) the most powerful power cleaning system in the world, specifically designed for high end power amplifiers. The device is capable of running at 32A with the correct input feed. The Super Titan will dramatically lower noise floor, give greater soundstage with enhanced separation between instruments, a greater sense of air, space and overall timing. Bass will become deeper, yet more articulate allowing you to hear and almost touch a more holographic soundstage.
Housed in a machined aluminium case with full resonance control isolation system (ISIS) EVO3 Super Titan is a statement product that totally redefines what is possible with the cleaning of the mains supply.

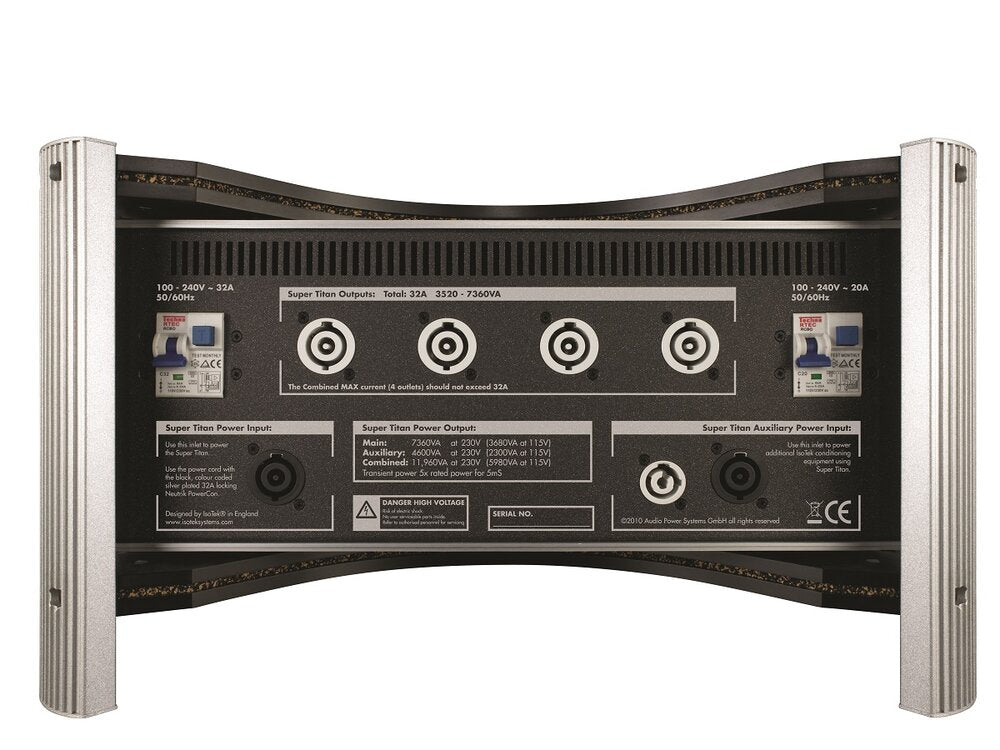

Number of outlets | 4 + Multi-Link/Auxiliary |
---|---|
Type of outlets (32A) | Silver-plated 32 Amp Neutrik |
Type of outlets (20A) | UK, EU, US, CH, AU, ZA |
Mains inlet | Silver-plated 32 Amp Neutrik |
Mains voltage | 100-240V / 50-60Hz |
Maximum current | 32 Amp continuous |
Total power (nominal 230V) | 7,360W continuous power |
Transient power | 14,720W |
Surge protection | 135,000 Amp instantaneous |
Dimensions | 500 x 300 x 500mm (W x H x D) |
Weight | 27kg |
