Gaia Titan Theis

For premium high fidelity speakers.

Modern high end speakers are exotic and perform with great accuracy, providing punch without missing the most subtle details. Similar to performance tires on a race car, the GAIA-TITAN’s allow high end speakers to reach their full potential, delivering remarkable natural openness and clarity.

GAIA-TITAN series feature the same patented isolation technology as the original award winning GAIA series. The GAIA-TITAN series has 3 models with weight limits ranging from 320 lbs to 620 lbs.

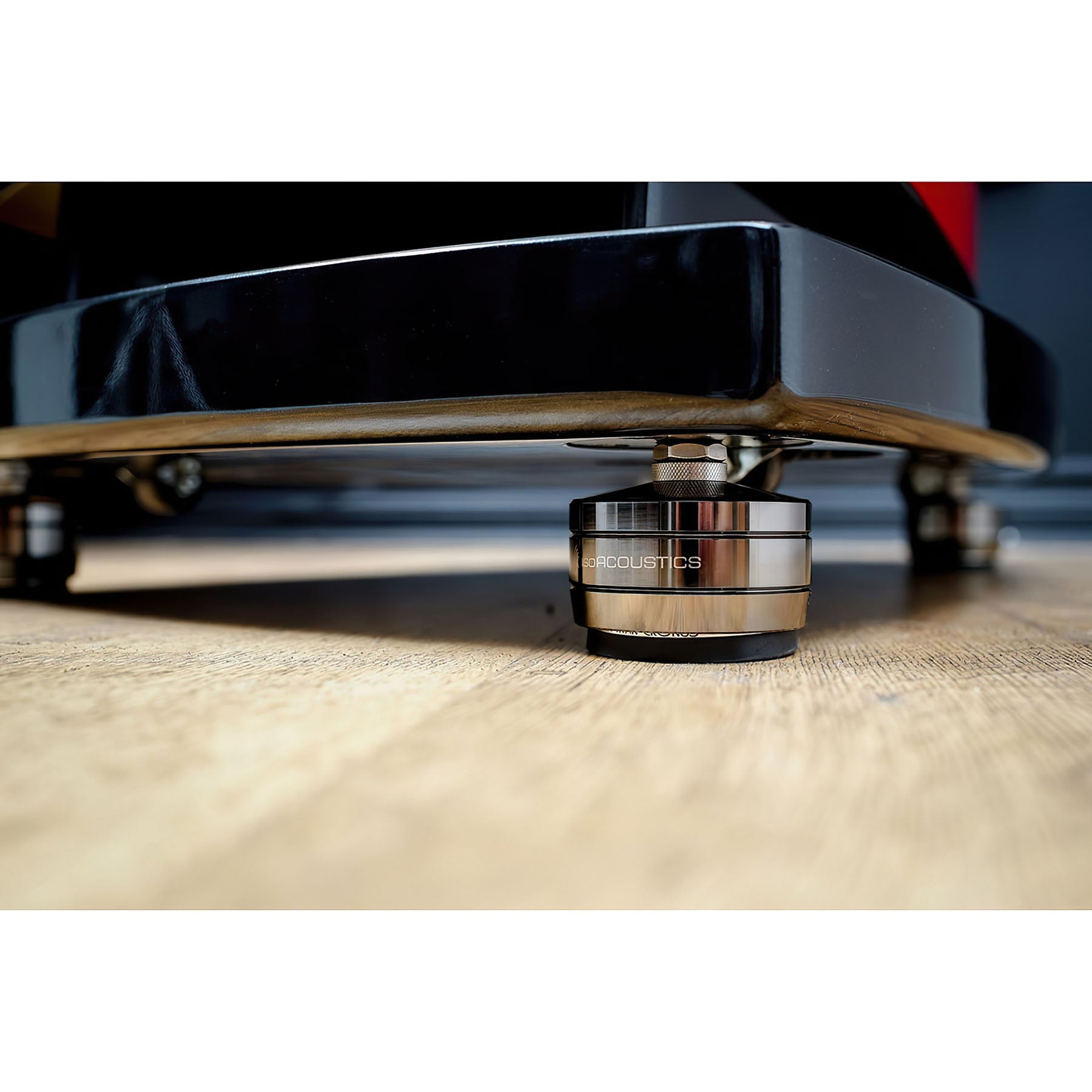

The GAIA isolators are machined stainless steel units that incorporate IsoAcoustics’ patented design to provide a high degree of speaker isolation, while resisting lateral movement and oscillations, to maintain accuracy and alignment with the listening position. Internal reflections from the hard supporting surface are attenuated resulting in greater sound clarity and openness.

The GAIA-TITAN models each come with 3 common thread sizes which will fit most speakers of this size. Alternate sizes are available through IsoAcoustics distributors.

The IsoAcoustics patented isolation design is directional. Optimal results are heard by installing the GAIA-Titan isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces.

The GAIA-Titan’s lower isolator is designed to adhere to the supporting surface. For carpeted flooring, Carpet Discs are available for each GAIA-Titan model which allow the GAIA’s to connect to the solid flooring below.

INSTALLATION

How to install GAIA-TITAN isolators

The GAIA-TITAN models each come with 3 common thread sizes which will fit most speakers of this size. Alternate sizes are available through IsoAcoustics distributors.

The IsoAcoustics patented isolation design is directional. Optimal results are heard by installing the GAIA-TITAN isolators with the logo facing the listening position, or rotated 180 degrees, to align the isolators with the speaker’s motive forces.

The GAIA-TITAN’s lower isolator is designed to adhere to the supporting surface. For carpeted flooring, Carpet Discs are available for each GAIA-TITAN model which allow the isolators to connect to the solid flooring below.

Patented isolation technology

GAIA isolators are made from a high quality stainless steel construction, incorporating the IsoAcoustics design philosophy that combines precision and a passion to deliver extraordinary acoustic results.

THE TECHNOLOGY

GET YOUR SPEAKERS TO

PERFORM AT THEIR BEST

The IsoAcoustics award winning patented isolation design manages the energy of the speaker to provide the best speaker performance.

The effectiveness of the isolation is a result of the shape, thickness, durometer and characteristics of their proprietary isolation material and the way the top and bottom isolators function together with the internal insert to manage vibrations.

• Tighter bass
• Improved soundstage
• Greater sound clarity and openness
• Provides a three-dimensional image of natural spatial sound

Managing energy on-axis

IsoAcoustics stands are directional and designed to be positioned with the logo facing in the same direction as the motive forces of the speakers. As a result, they manage the energy on-axis as opposed to homogenous materials that allow the speakers to oscillate in all directions. This method of managing the energy provides a high degree of isolation, improved sound clarity, focus and openness.

Connection to speaker and supporting surface

IsoAcoustics products are designed to connect to the base of the speaker and to the supporting surface so that the energy is effectively managed by the internal isolators. The shape of the isolators creates a suction cup effect on smooth surfaces or provides a strong friction grip if the surface is textured.

IsoAcoustics offers a variety of models, each tuned for different weight ranges. The weight limits specified by IsoAcoustics are based on the performance curve. The performance of the isolation is declining as the weight approaches the specified weight limits and performance decreases more the further the weight limit is exceeds.

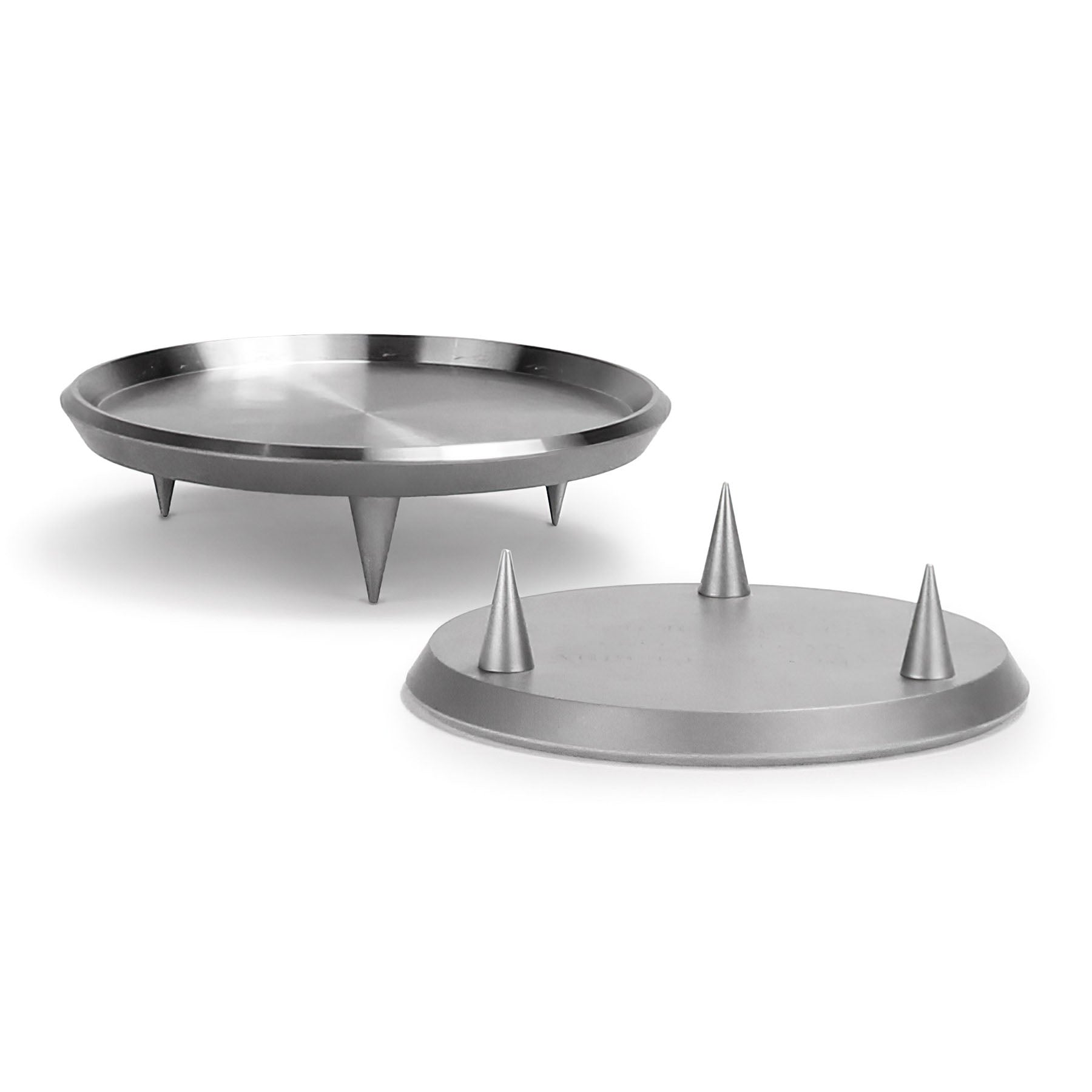

GAIA-TITAN Theis Carpet Spikes

Package includes: 4 units

Dimensions (WxH): 2.72″ x 0.9″ (69mm x 22mm)

Spike length:  0.6″ (15mm)

Material : Stainless Steel

How to install GAIA Carpet Disks

Tilt the speaker or subwoofer to raise the GAIA’s above the ground, then position the carpet spikes underneath the GAIA’s and lower the side back down. Repeat the process on the other side by tilting the other side of the speaker and position the Carpet Disks underneath the GAIA’s before lowering the speaker back down.

You might need to raise and lower each side of the speaker again until the carpet spikes are positioned level on the ground and are properly aligned underneath the GAIA isolators.

The carpet disks installation is the final step. The carpet disks should not be installed until after the GAIA’s are installed and the speaker or subwoofer is in its final position.

Tech

Reviews

“Installing the GAIA isolators on my KEF Blades gave the biggest improvement in sound I have ever heard on the system. Better than changing cables or electronics, the noise floor was lower, the focus was better, and the bass went deeper. All around a total success.”

-HARRY WEISFELD, FOUNDER, VPI INDUSTRIES

“I heard more of the music and less of the speaker. Not only that—instruments and voices were more precisely defined on the soundstage, which itself was wider and higher. A remarkable product.” —

-ROBERT DEUTSCH, STEREOPHILE

Titan Cronos

Machined Stainless Steel

Threads: M10-1.5, M14, ½-13

Weight Cap: 320ibs / 145.15kg

Titan Rhea

Machined Stainless Steel

Threads: M8-1.25, M14, ½-13

Weight Cap: 420ibs / 190kg

Titan Theis

Machined Stainless Steel

Threads: M8-1.25, M14, ½-13

Weight Cap: 620ibs / 27.21kg
