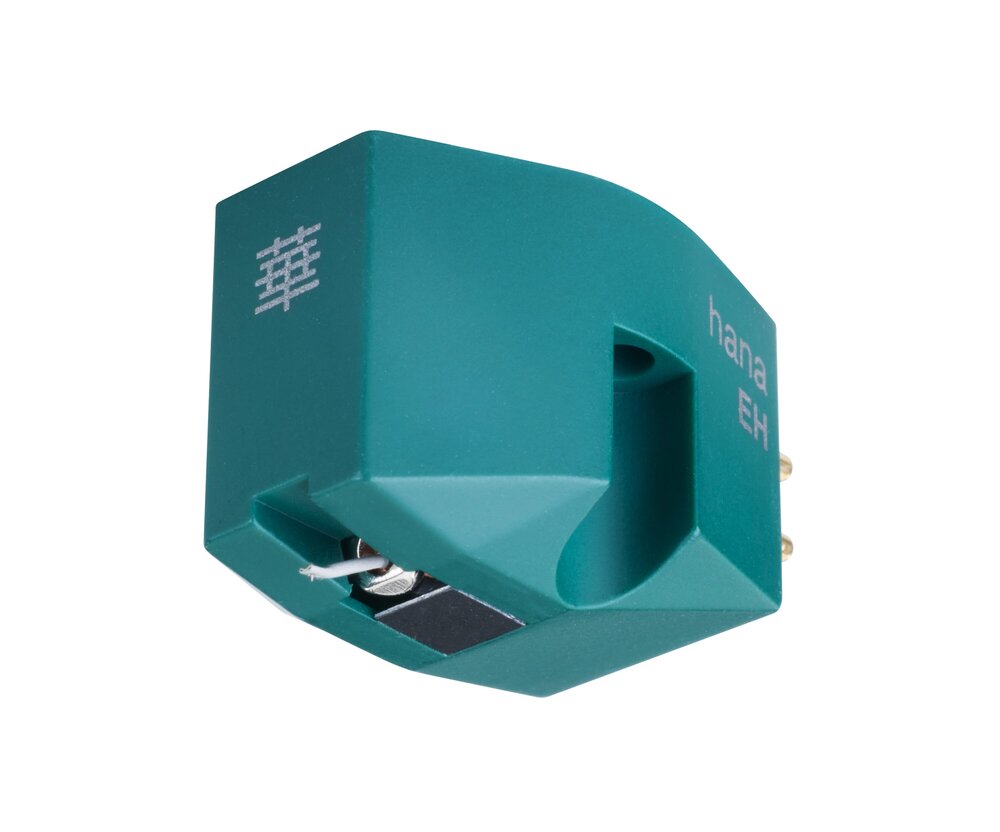

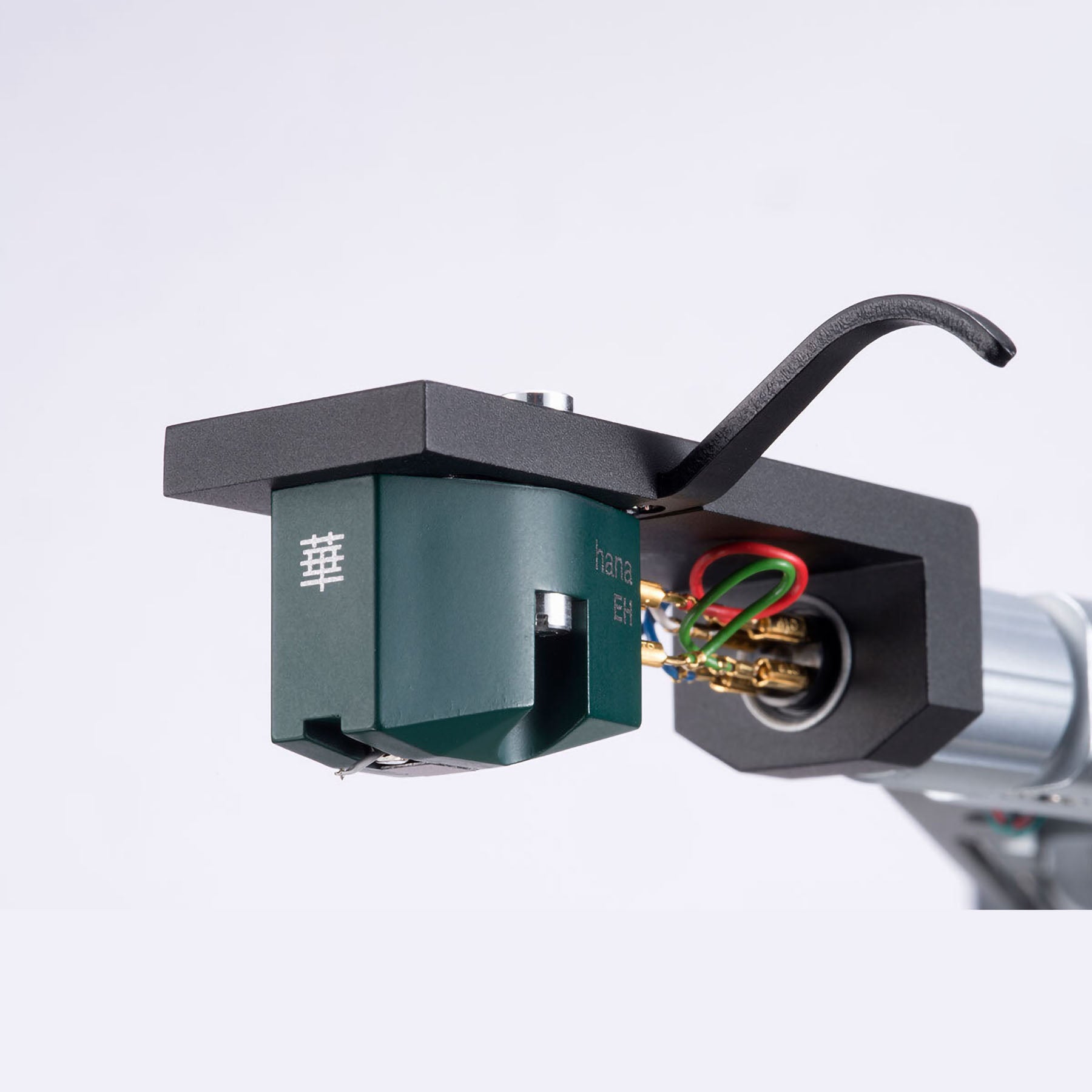

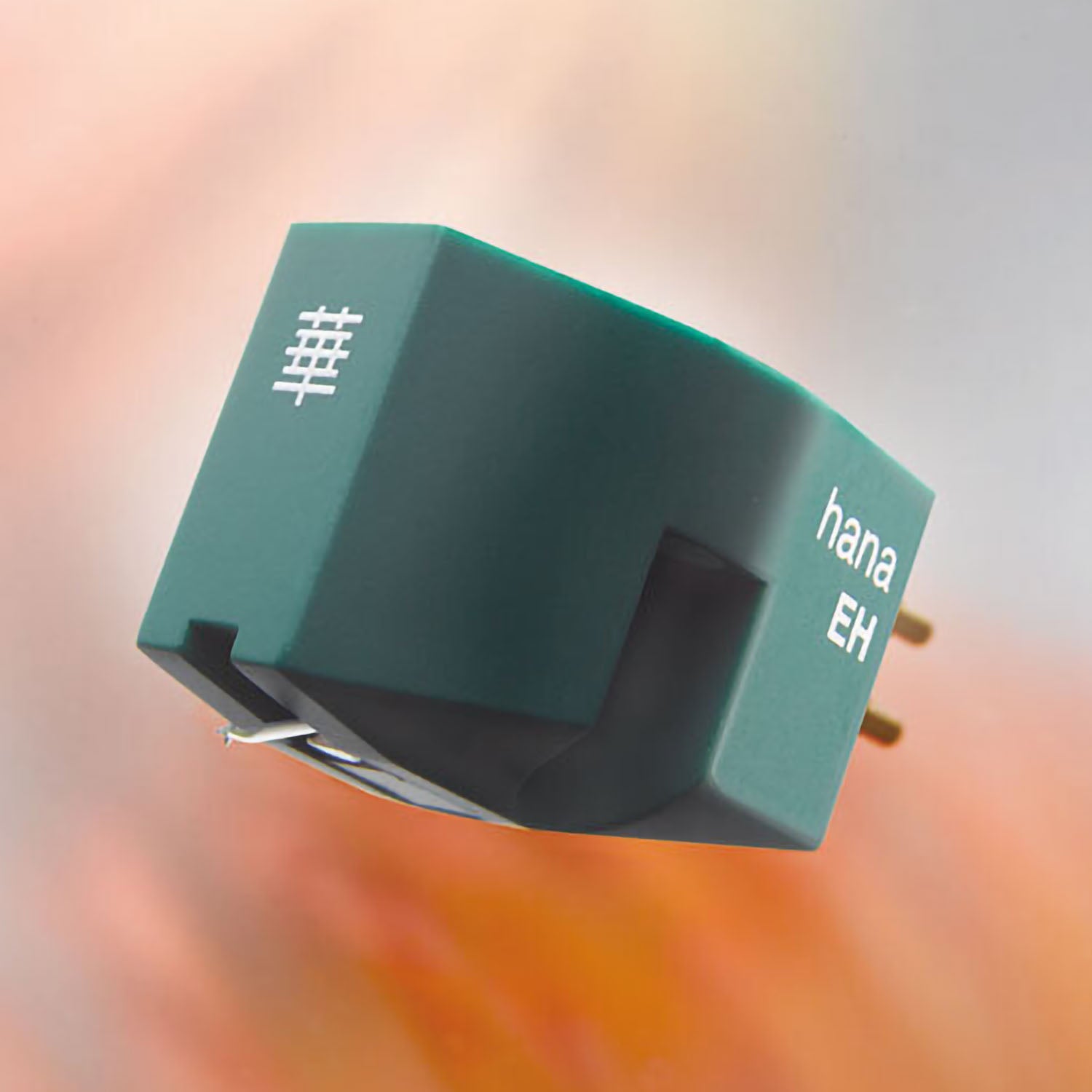

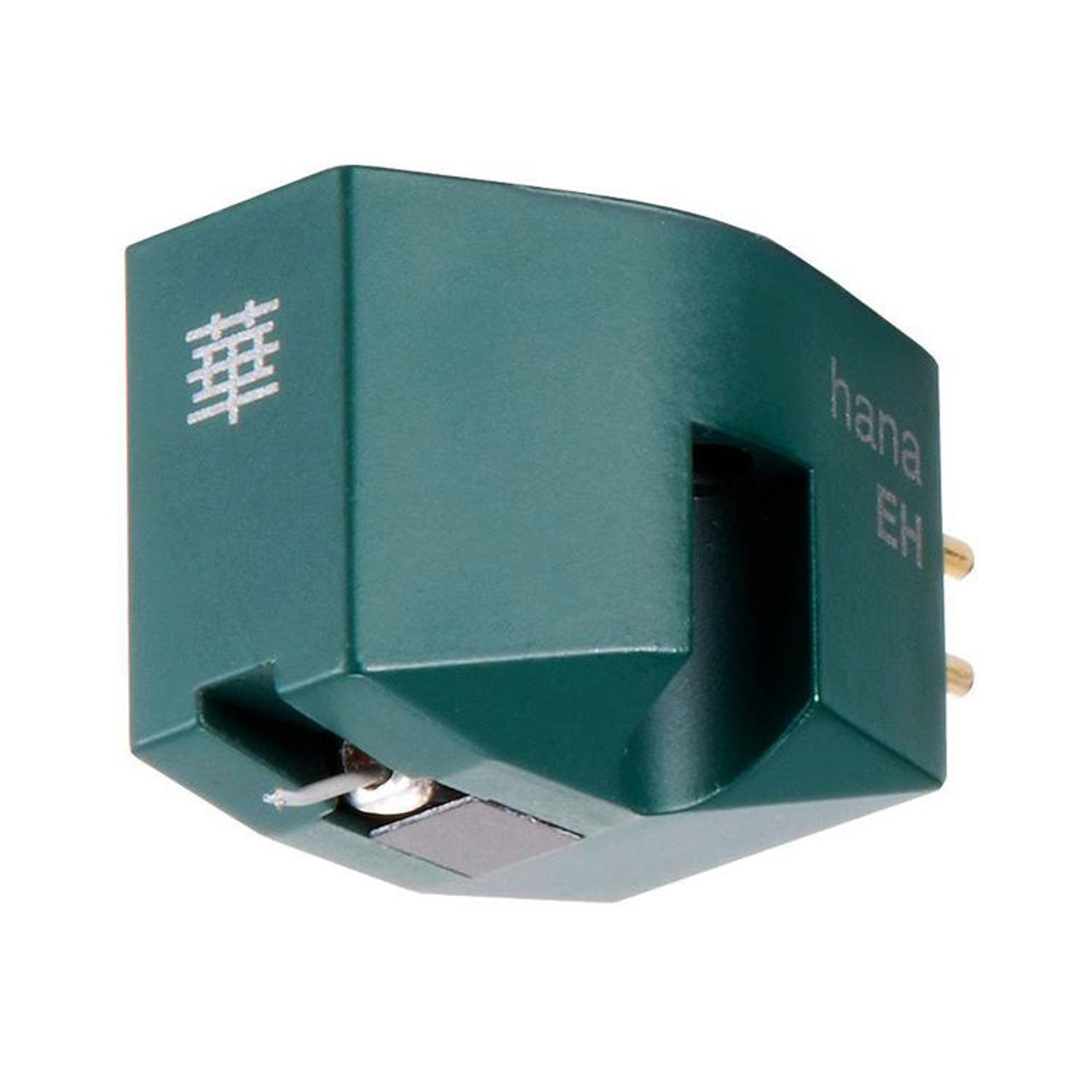

Hana EH
High Output Elliptical MC Cartridge 2.0mV
Introducing a new line from Japan, Hana (which means “brilliant and gorgeous” in the original Japanese). Hana Phono Cartridges use high rigidity aluminum cantilevers, and cross-shaped armatures, providing you with brilliant and gorgeous sound. Hana cartridges are produced by Excel Sound Corporation of Tokyo Japan, a long time OEM cartridge producer.
The Hana Series has been developed with significance placed on ease of use and set-up, as well as high performance reproduction. Hana Cartridges' highly rigid aluminium cantilever are assembled with crossed armatures to reproduce dynamic sound!
Stylus Profile:
Elliptical
Cantilever:
Aluminum
Output Level @ 1kHz:
2.0mV
Output Balance @ 1kHz:
Less Than 2dB
Vertical Tracking Force:
2 grams
Trackability:
70 um/2 grams
Separation @ 1kHz:
25 dB
Frequency Response:
15-25,000 Hz
Impedance @ 1 kHz:
130 Ohms
Suggested Load:
47 K Omms
Cartridge Weight:
5 Grams
Body Color:
Moss Green
