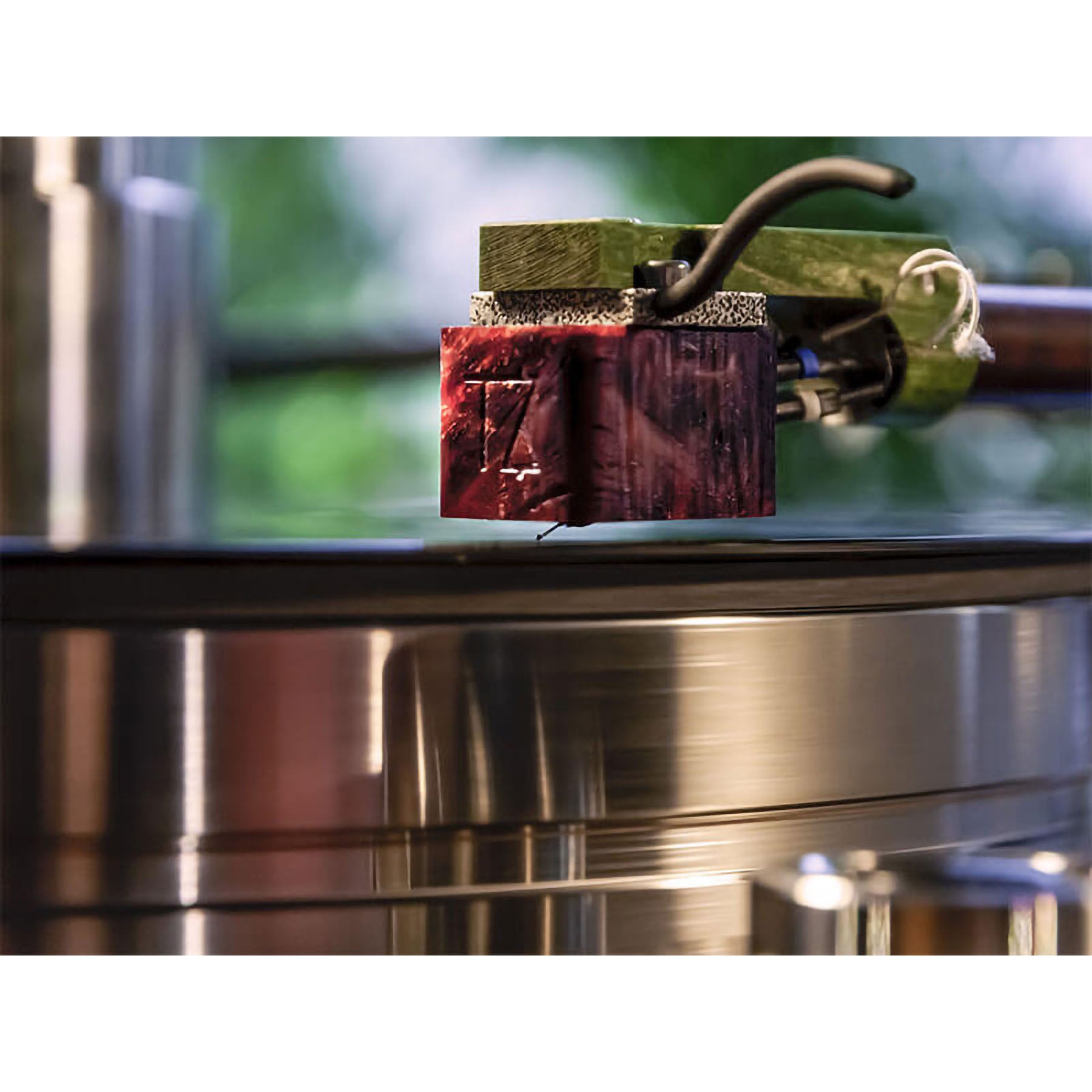

darTZeel NDB-02R
Ruby Cantilever Stereo MC Cartridge
A few years ago, the darTZeel team embarked on a very ambitious project – to make a new cartridge that delivered the best possible performance. Well regarded for the brilliance of their electronics, they had accumulated a lot of experience in working with analog systems and had also worked closely with some very talented and experienced analog experts. Part of the DNA of the ‘darTZeel way’ is to approach design challenges from a different angle, to think differently.
The result of this project is the emergence of two superb cartridges and it is fair to say that it has definitely been worth the wait. Reading the specification sheet is like a wish-list of the most desirable attributes and technologies cultivated in the one cartridge. The NDB-02R features ruby cantilever with a pure, high precision hand polished natural nude diamond. It also features hand-wound silver coated pure copper coils in a unique continuous winding construction. The coil armature is made on an acid etched titanium support and it incorporates a light weight moving assembly for unprecedented reproduction of details. This is the traditional way of making a cartridge taken to an extreme! The NDB-02R is designed to give you the darTZeel analog experience at a cost that is more accessible that it’s big brother, the NDB-01D.
So what is the result of this exercise in construction perfection? The result is a sound that immediately reminds you of the beauty and supreme engagement of the analog paradigm. If you’ve ever wondered why a huge number of audiophiles and music lovers alike prefer vinyl even though we are living in a time with unprecedented development of digital music playback, just listen to this. Pour yourself a glass of quality wine, relax into a comfortable chair and let the music wash over you.
Type | Moving Coil Stereo Cartridge |
---|---|
Cantilever | Ruby cantilever with pure, high precision hand polished natural nude diamond. |
Coils & Mechanism | Hand-wound silver coated pure copper coils in a unique continuous winding construction. Coil armature made on acid etched titanium support. Light weight moving assembly for unprecedented reproduction of details. |
Frequency Response | 10Hz – 100kHz |
Output Level | 0.25mV |
Tracking | > 90 µm |
Tracking Force | 2.2 grams |
Channel Separation | > 32 dB |
Output Impedance | 6 ohms |
