Cayin

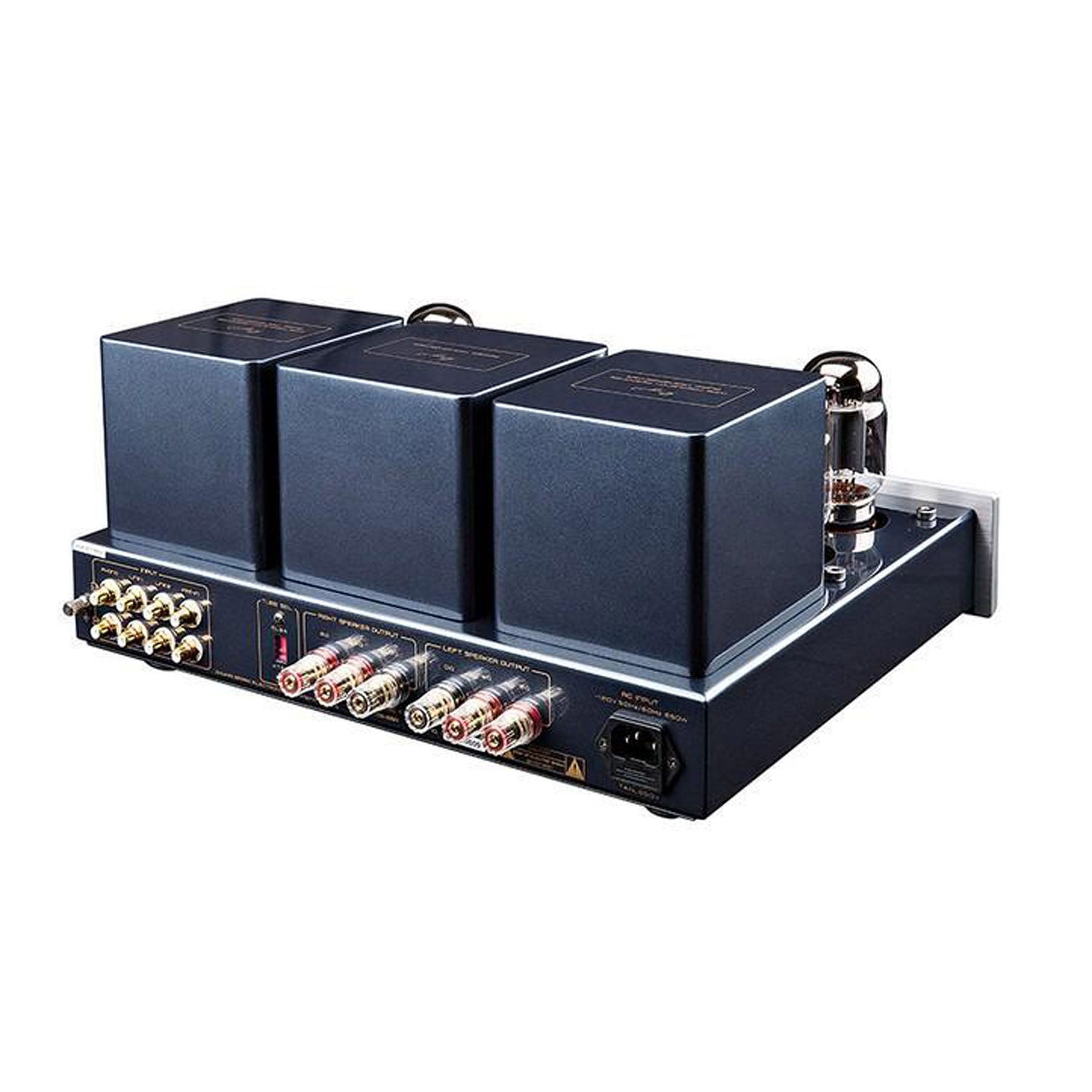

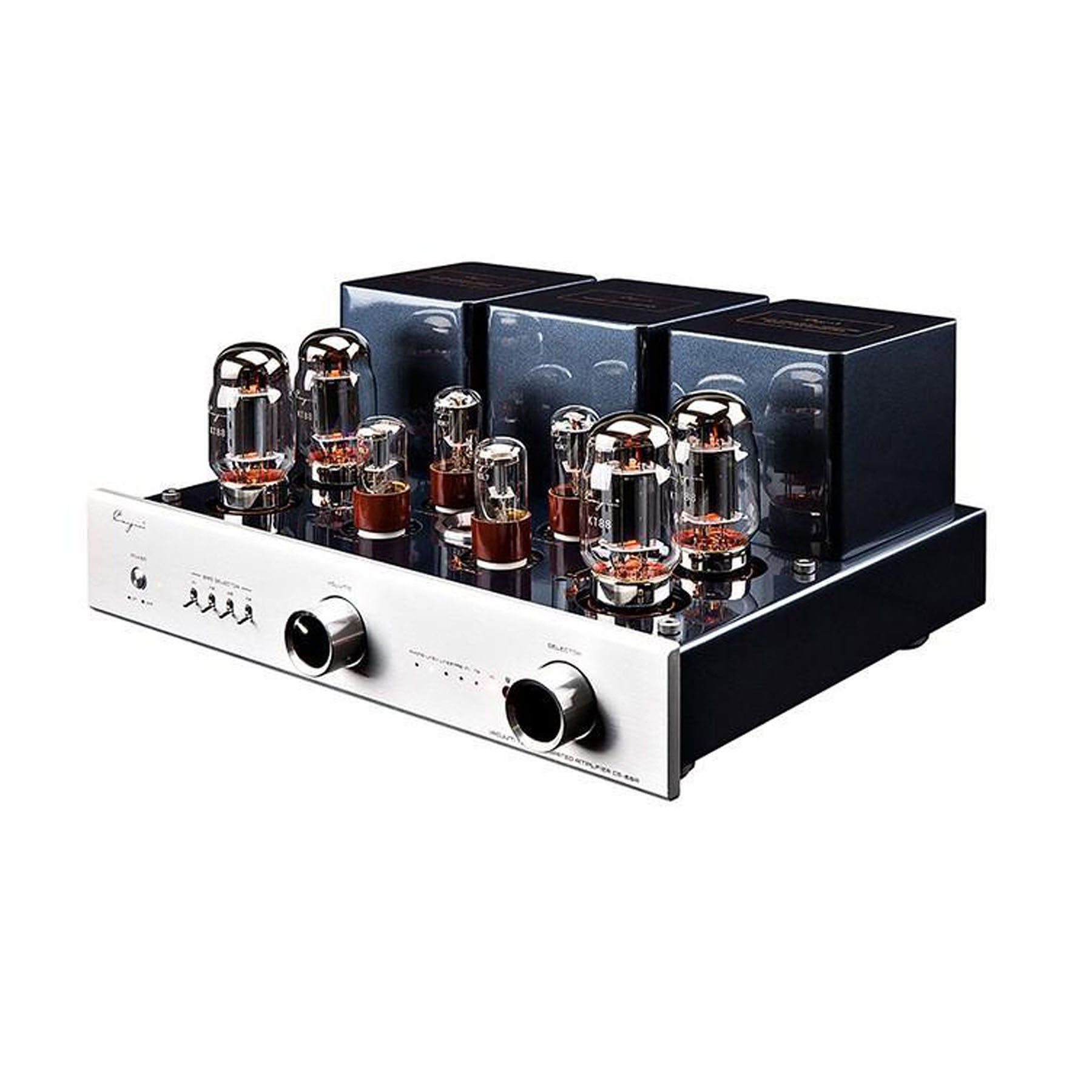

CS-88A MK2 Integrated Amplifier
The brand new successor to the popular Cayin A-88TMK2 Selection now has an MM phono input. And there was also a lot going on behind the 42 cm wide aluminum front panel, which makes the tube amplifier the perfect partner for the likewise new Cayin CS-100CD. Its larger power supply gives it more power and load stability. The new, particularly broadband output transformers also ensure even more fine-tuning in the sound image. The tubes of the Cayin CS-88A make connoisseurs' hearts beat faster: 2 x 6SL7 2 x 6SN7, 4 x KT88 combine to ensure that the hairs on the neck dance when listening to music. The Cayin CS-88A can be fine-tuned with its integrated bias measuring instrument so that the performance is still convincing even after years.
Key Features
- KT88 tube based unit - 45 W ultra, 25 W triode
- 4 x KT88, 2 x 6SM7, 2 x 6Sl7 tubes
- All handmade silver point to point wiring
- Can run KT88 or EL34 tubes via switch
- Phono MM preamp built in
- On-board bias meter for easy adjustments
- Silver finish
- Remote control included
- Designed and tuned in Germany
- Dimensions (W x H x D): 420 x 195 x 382 mm
- Weight: 30 kg
Power Output | 45 W x 2 Ultralinear, 25 W x 2 Triode |
Tubes | 4 x KT88, 2 x 6SM7, 2 x 6Sl7 |
Frequency Response | 10 Hz ~ 42 kHz (-3 dB) |
S/N Ratio | 93 dB |
THD | 1% (1 kHz) |
Output Impedance | 4Ω, 8Ω |
Input Sensitivity | 300 mV (Integrated) / 1000 mV (Pre-In) |
Input Impedance | 100 Kiloohm |
Input Terminals | Line 1, Line 2, Line 3, Pre-In |
Power Consumption | <280 W |
Dimensions (W x H x D) | 420 x 195 x 382 mm |
Weight | 30 kg |
Warranty | 2 years ( 3 months for tubes) |
