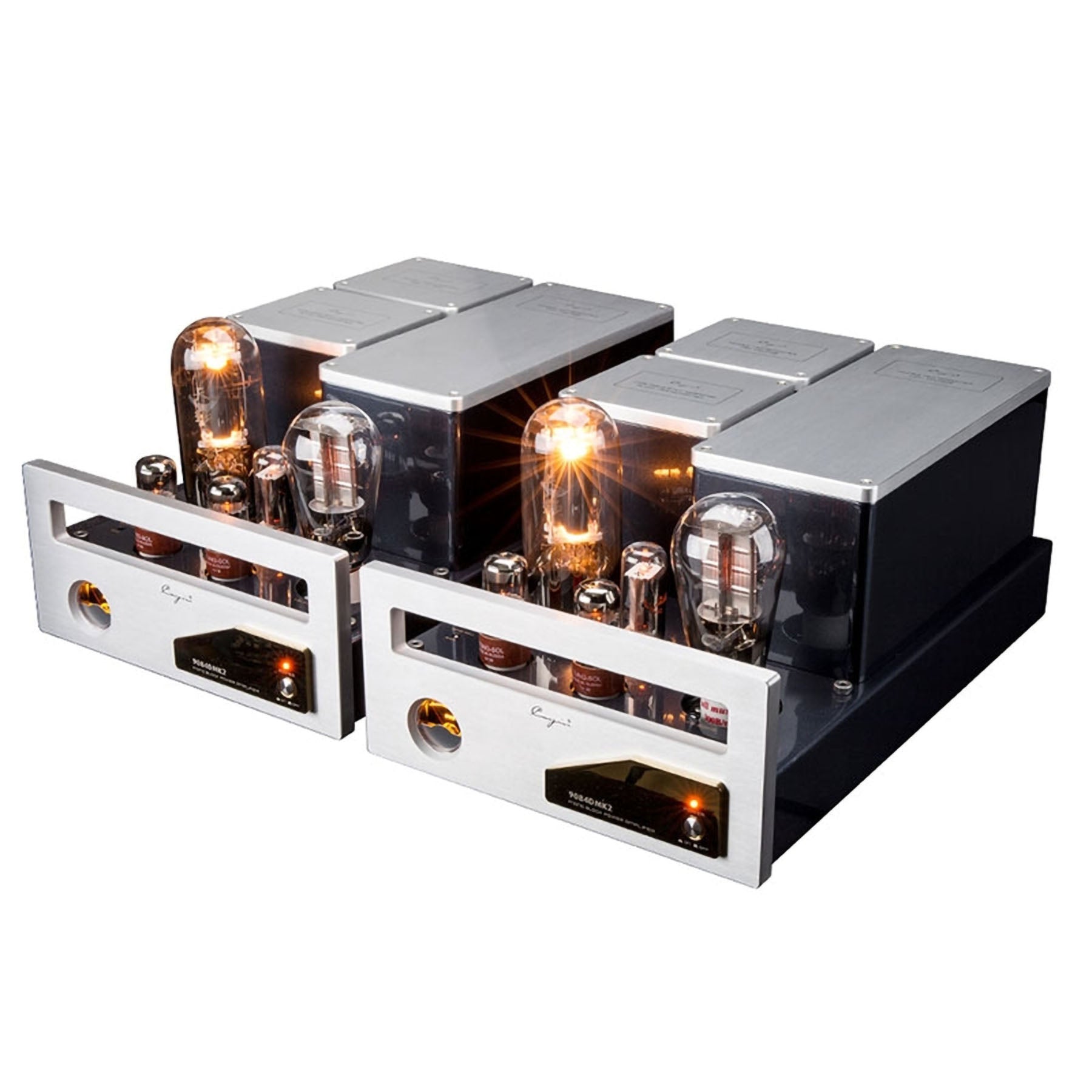

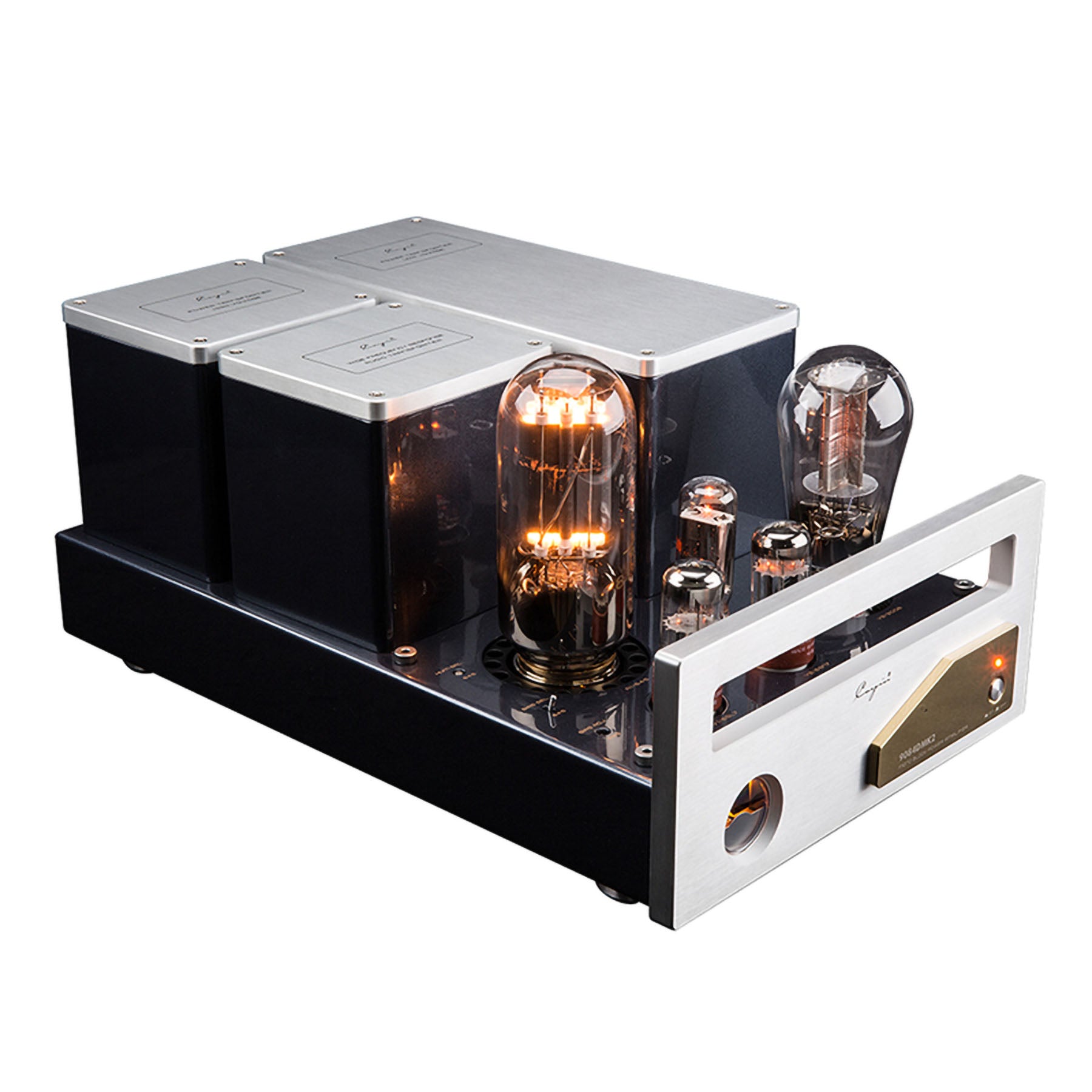

9084DMK2 Mono Block Power Amplifier

The 9084D MK2 monoblock amplifiers have gotten a new face lift. With 300B tubes in the driver stage, and in conjunction with the 845 power valves, these monoblocks from Cayin drive with a high single-ended output of 28 watt (Class A) per channel.

Each mono block uses hand-matched TUNG-SOL 6SL7 and 6SN7GTB tubes which after lengthy testing proved to be the absolute best musically.

Paired together with the SC-6LS MK2 (see here), these tube monoblock amplifiers creates sound imaging that is both organic and clean but have immense drive and control, reproducing dynamic realism of your musical input, whether is CD, vinyl, or MP3’s.

Externally accessible controls and display via the integrated meter allow the user to easily adjust the optimum operating bias point of the 845 tubes, making tube rolling is an absolute breeze!

Cayin developed two different transformers : A toroidal transformer, which has a high inductance and low resistance allowing for incredibly high efficiency in the power supply.

The EI transformer of the output transformer uses a special, multi-layer winding process to achieve particularly balanced and realistic sound – this design has proved to be the heart and soul of the Cayin sound.

Key Features

• 1 x 300B, 1 x 6SL7, 1 x 6SN7, 1 x 845, 1 x 22ED4 Tubes

• Class A Single Ended design

• Designed and tuned in Germany

• All handmade point to point silver wiring

• Perfect match for SC-6LS MK2 Pre-amp

• On-board Bias meter for easy adjustments

Output power

 28W (8Ω RMS)

Frequency response

15Hz ~ 33kHz (-3dB)

Harmonic distortion

 2% (1kHz)

Input Impedance

 100 KΩ

Output impedance

 4Ω, 8Ω

Overall power consumption

 200W

Power supply voltage

 ~220V ±5% 50Hz

Input sensitivity

 1000mV

Signal to noise ratio

 85dB

Vacuum tube

 6SL7 × 1, 6SN7 × 1, 300B × 1, 845 × 1, 22ED4 × 1

Operating conditions

 Temperature

0°C~40°C Temperature

20% ~ 80%

Storage conditions

 Temperature

-20°C ~ 70°C Humidity

20% ~ 90%

Dimensions

 286 × 239 x 482 mm

Net weight

 32.5kg

Warranty

2 years ( 3 months for tubes)
