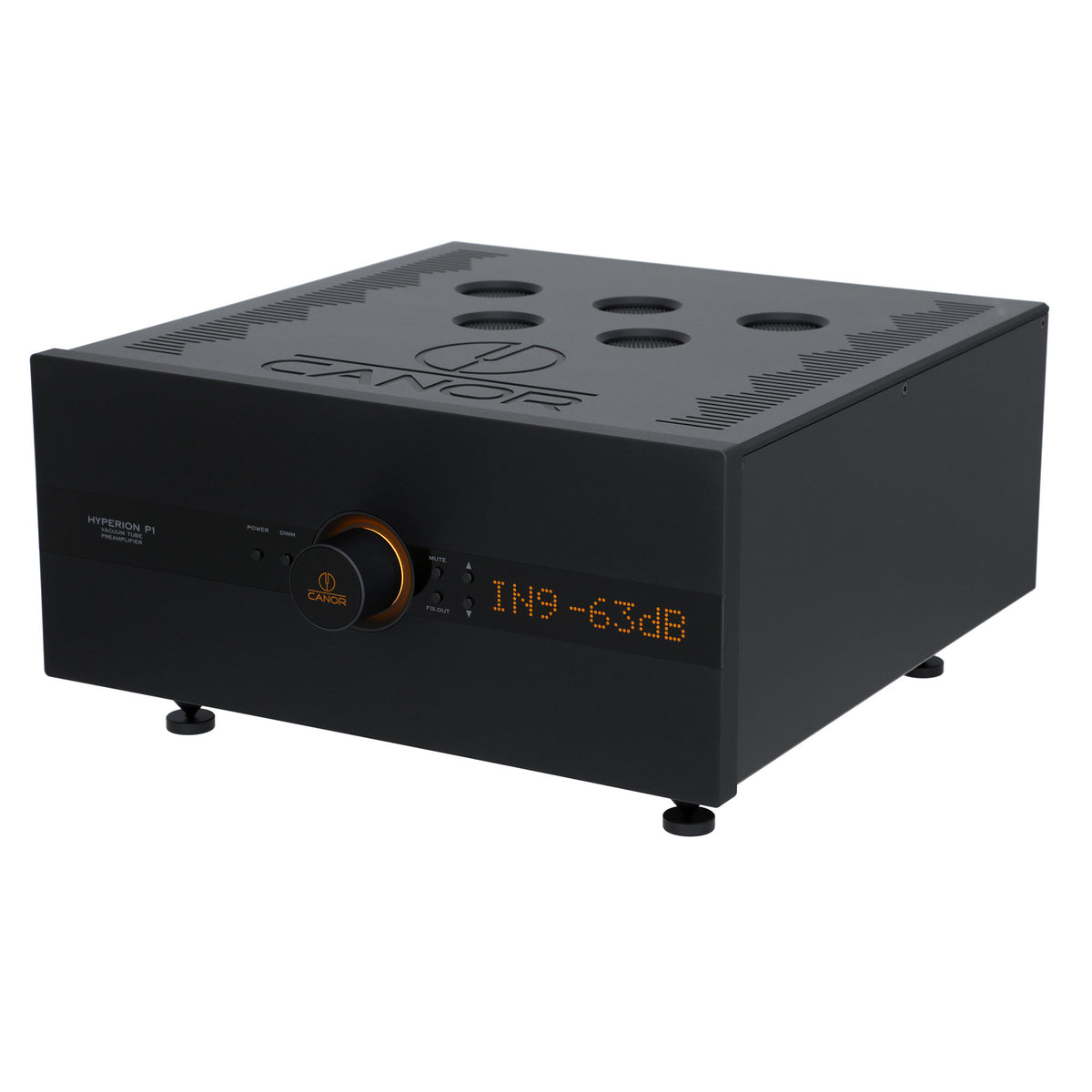

Canor Hyperion P1 Vacuum Tube Preamplifier
Canor Hyperion P1
Vacuum Tube Preamplifier
REFERENCE LINE
Hyperion P1 is a brand new vacuum tube preamplifier of pure A-class with zero feedback designed and produced by CANOR.
It is considered a reference preamplifier of the CANOR brand.
The name “Hyperion” origins in Greek mythology – the god of the sun; in later mythology identified with Apollo, and was distinguished for his beauty (the model of manly beauty, synonymous with Apollo).
Highlights
01 Solid aluminium chassis – overall robustness and elimination of vibrations
02 Zero global feedback – results in a sound that is more musical and realistic in numerous aspects

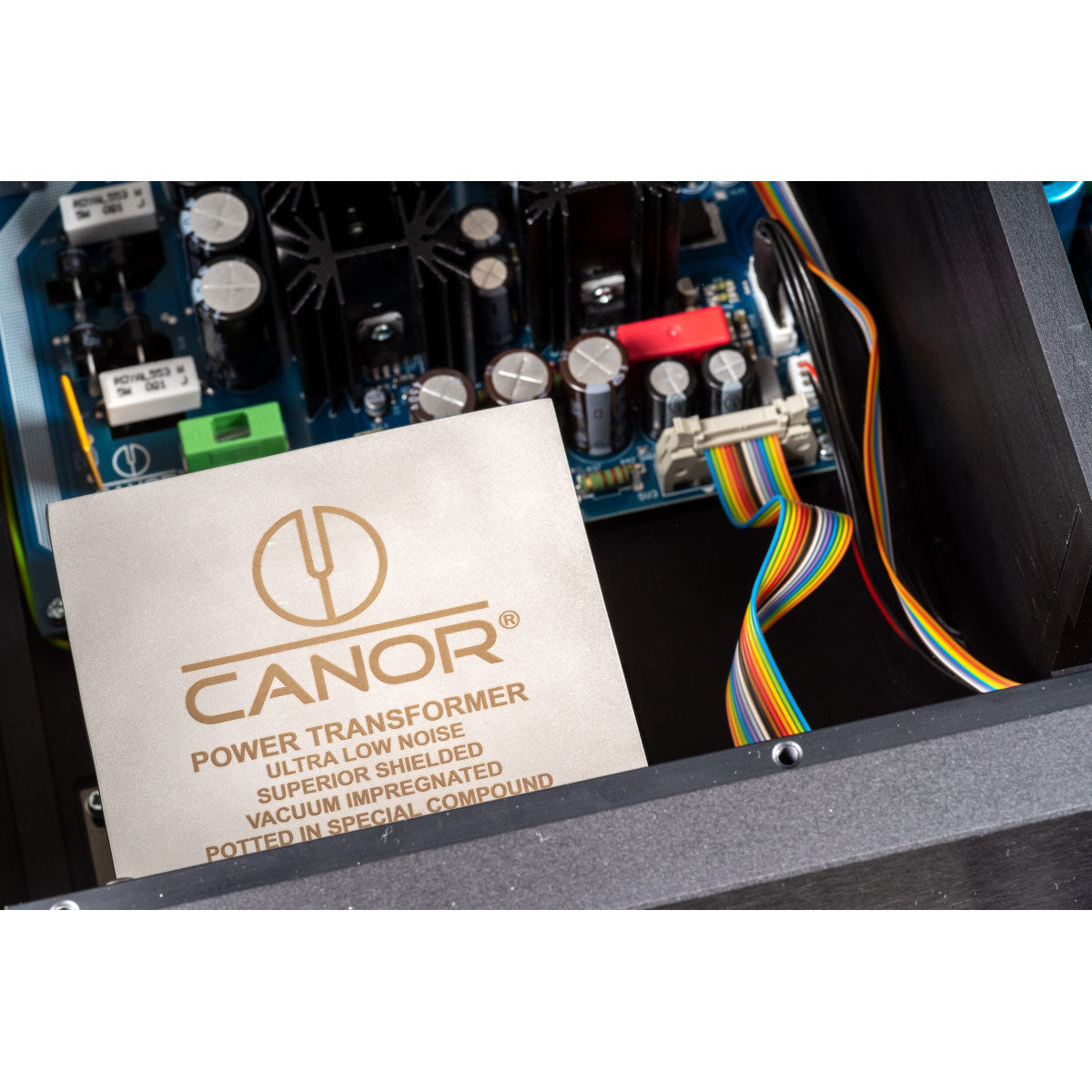

03 Perfect filtration solution – specially designed power transformer
Main Features

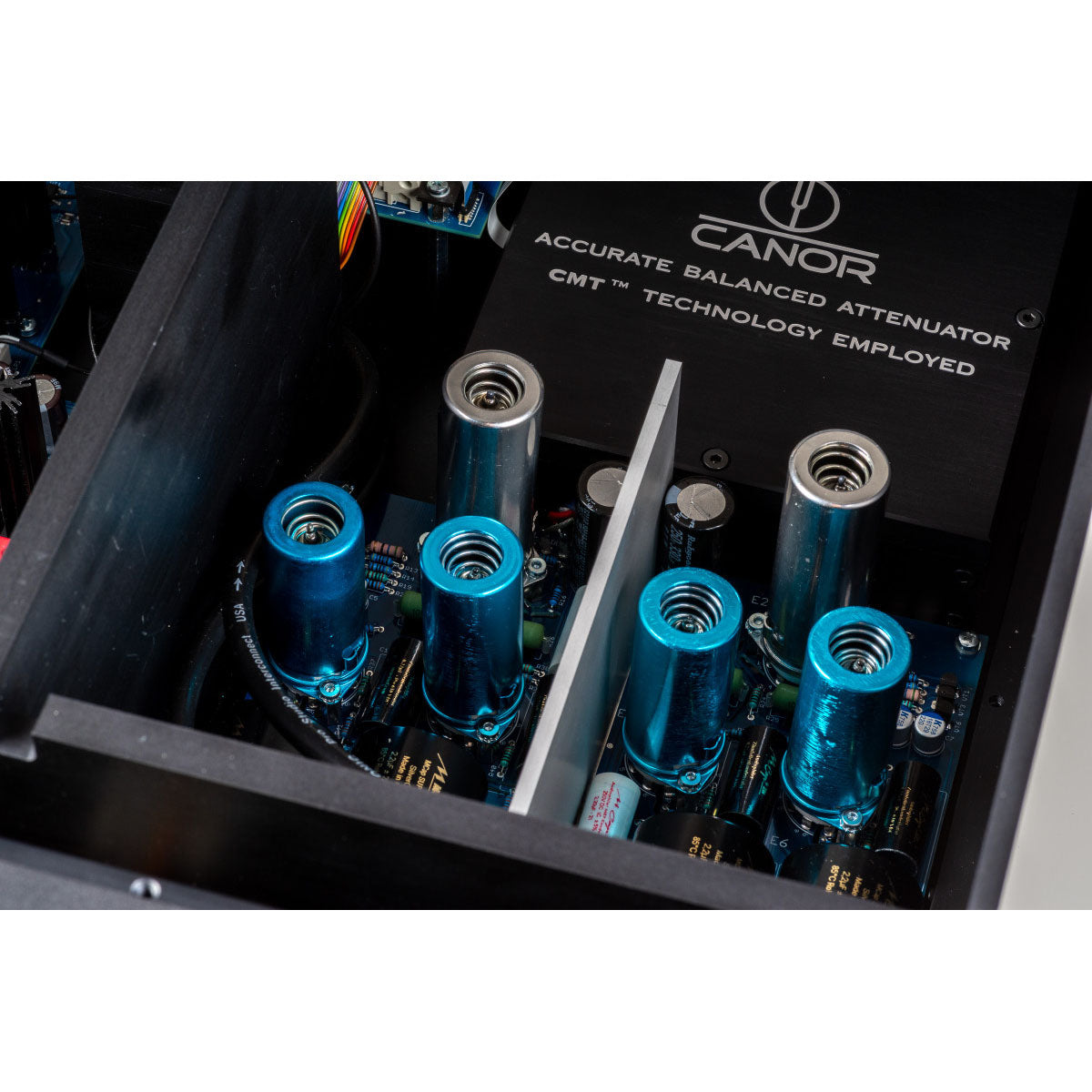

Accurate Balanced Attenuator
The attenuator is located in the special aluminium box (10mm thick walls) which provides perfect shielding and thanks to the special design it also absorbs the vibrations.
Zero Global Feedback
The Hyperion P1 is a Class-A preamplifier and was designed to avoid ANY global feedback
The anti-vibrations
The attenuator, as well as the electronic part, are installed on anti-vibration pads (columns) which contributes to the overall elimination of vibrations.
Interference elimination

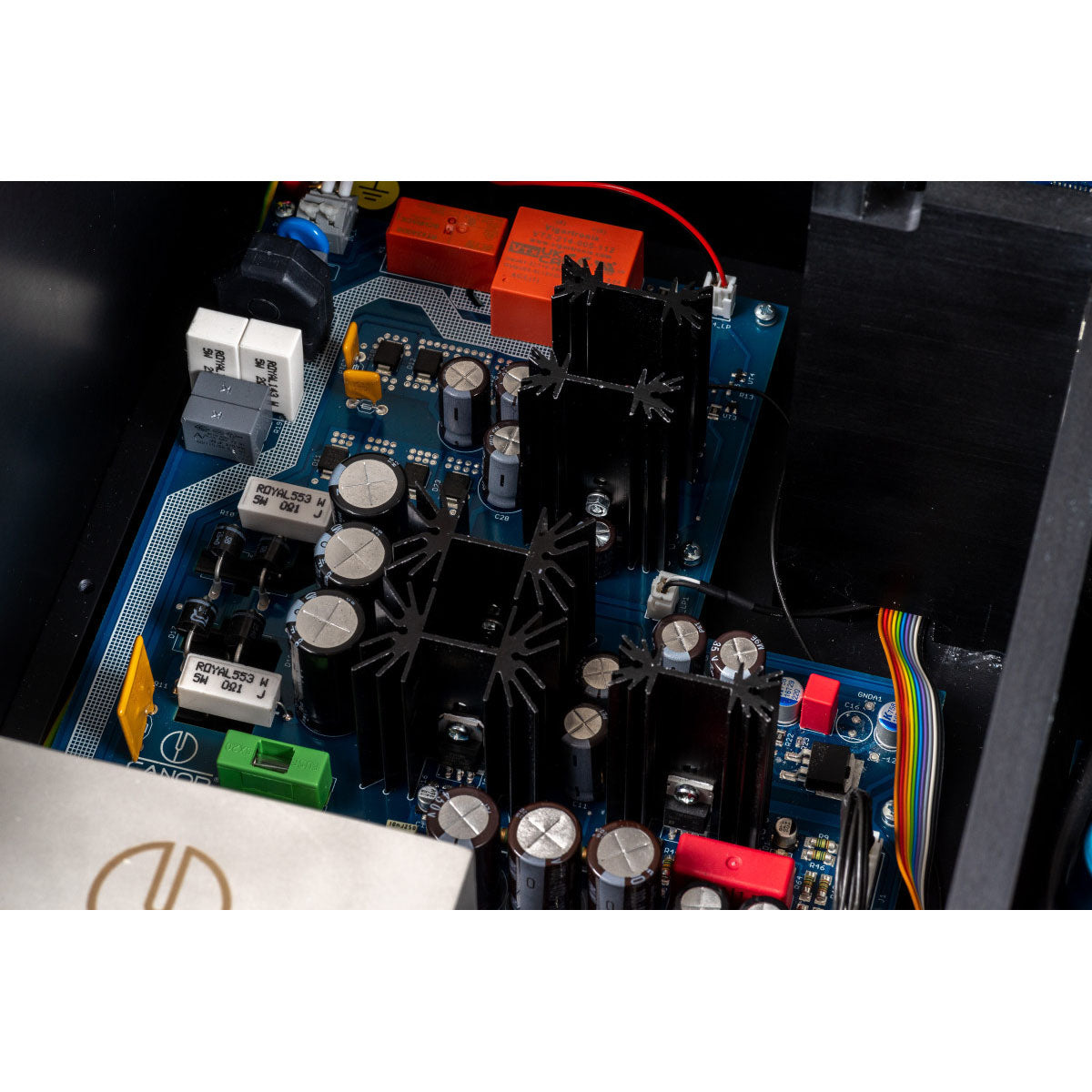

The analogue part is separated from the power part by a solid aluminium wall (10 mm thick) which contributes to the elimination of interference
The attenuator control
The attenuator controls are galvanically separated via optical drivers.
Product features
- the attenuator is located in the special aluminium box (10 mm thick walls) which provides perfect shielding and thanks to the special design it also absorbs the vibrations.
- the Hyperion P1 is a Class-A preamplifier and was designed to avoid ANY global feedback.
- the attenuator, as well as the electronic part, are installed on anti-vibration pads (columns) which contributes to the overall elimination of vibrations.
- the analogue part is separated from the power part by a solid aluminium wall (10 mm thick) which contributes to the elimination of interference.
- the attenuator control is galvanically separated via optical drivers.
Gain (XLR OUT) | 11 dB |
Output Impedance | < 150 Ω |
Frequency response | 10 – 80 000 Hz ± 0,1 dB |
Input impedance | 30 kΩ |

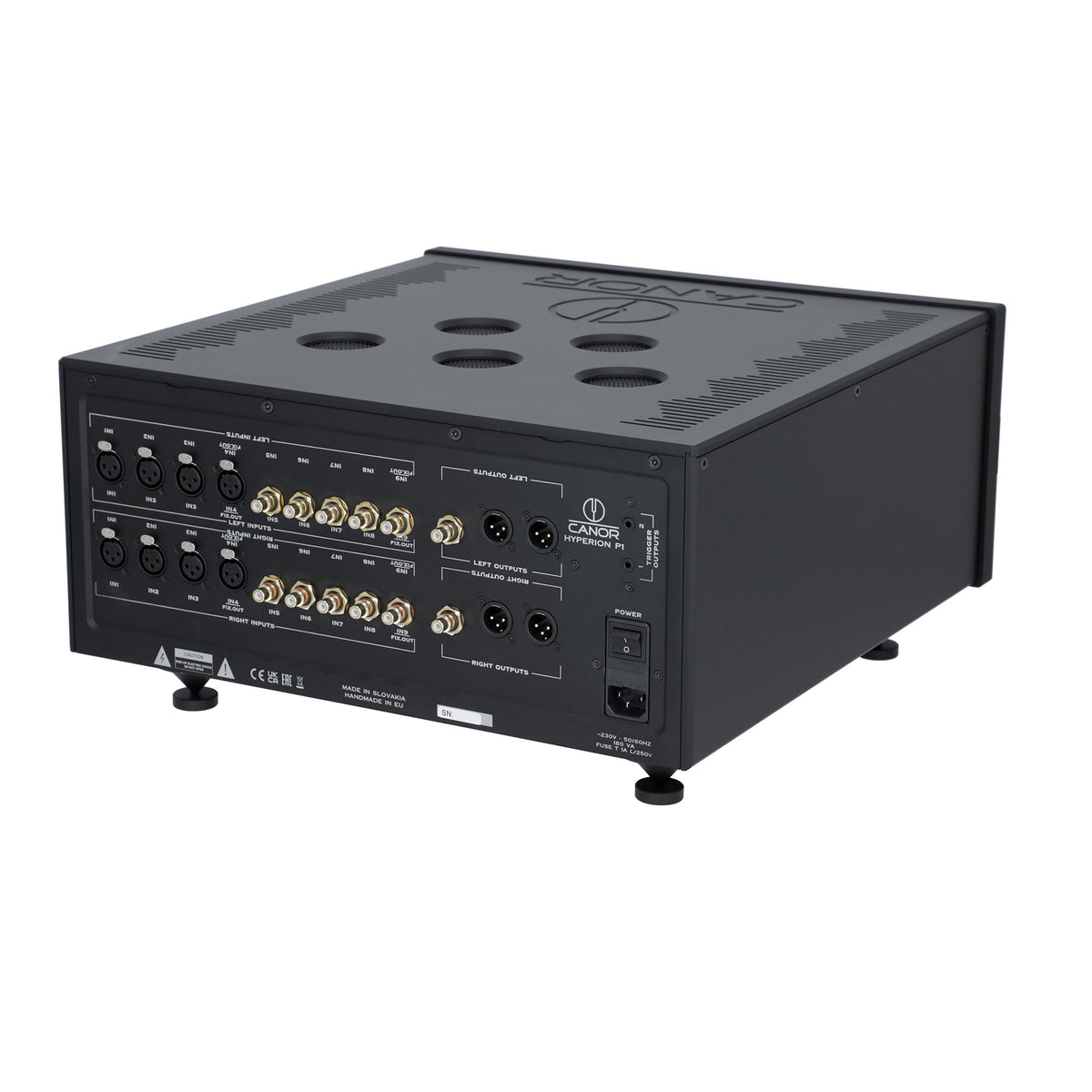

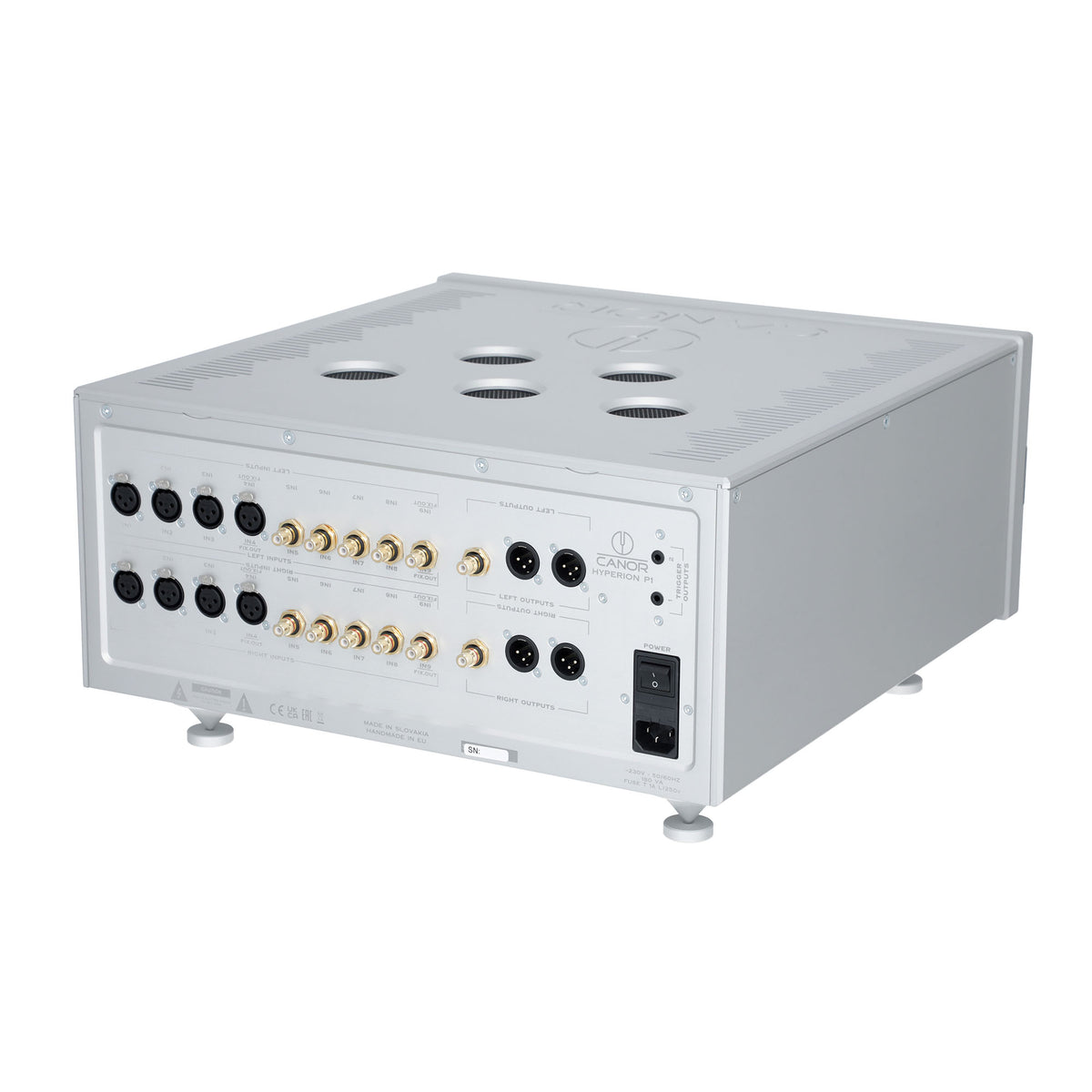

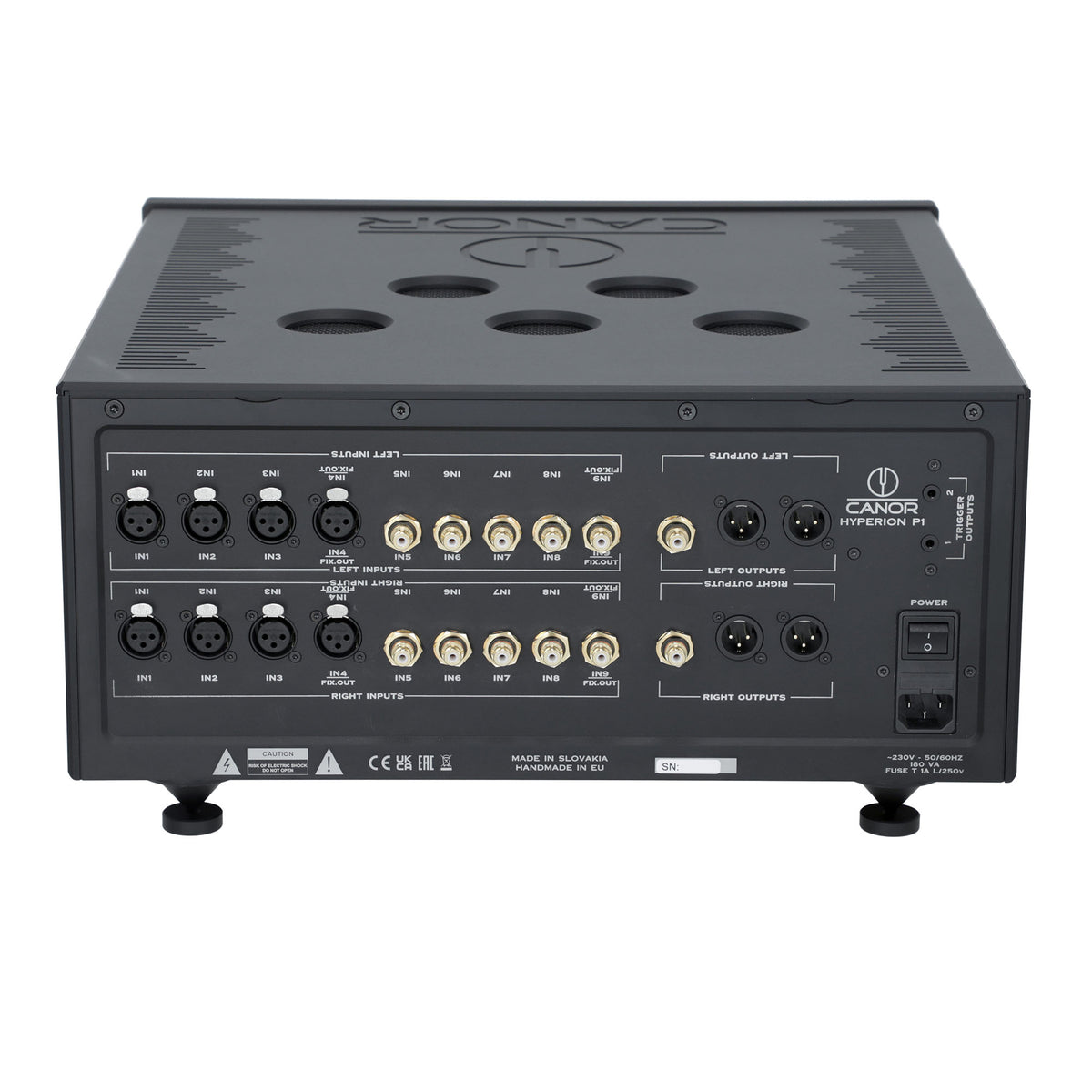

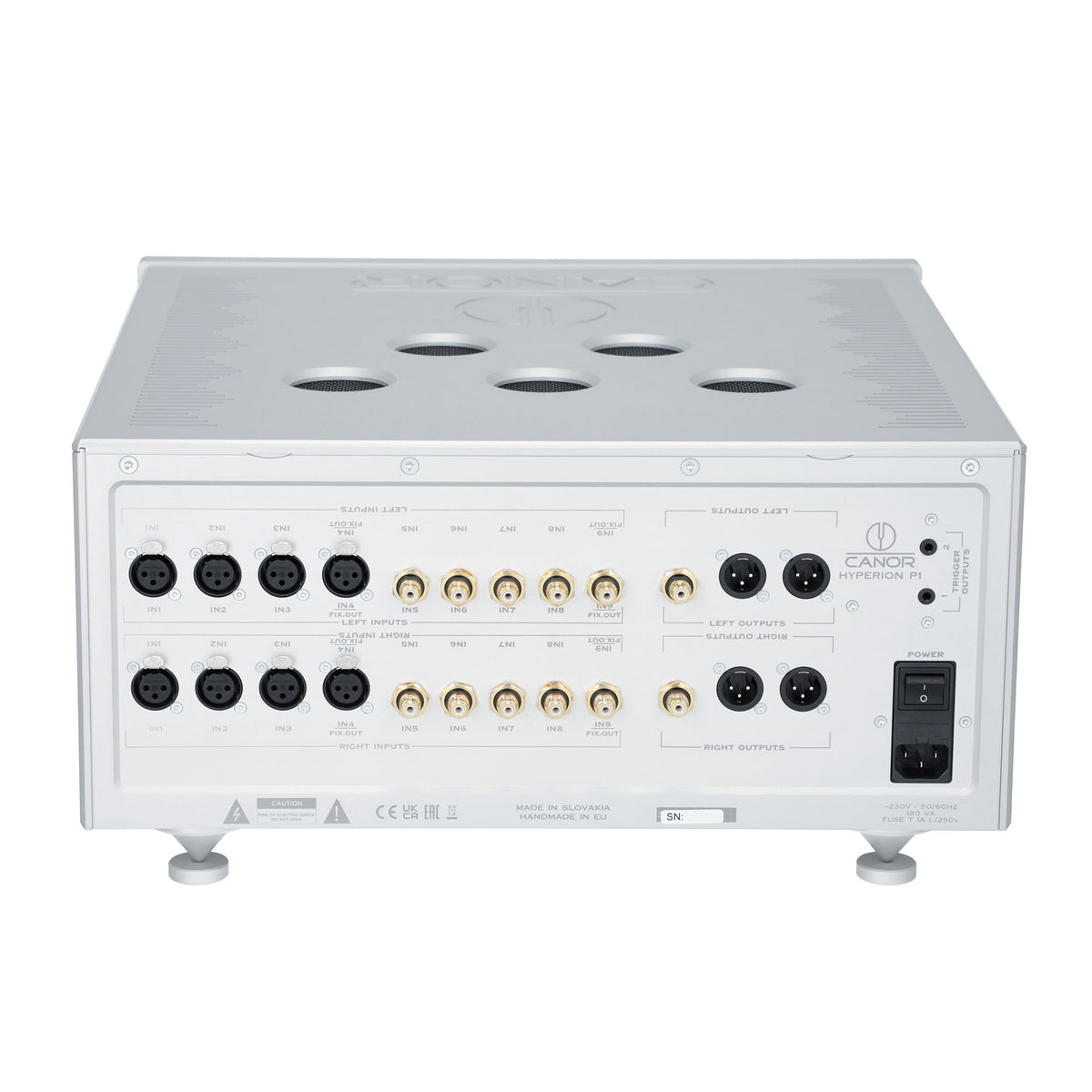

Inputs | 4x XLR, 5x RCA (1 x Fix.out) |
Total Harmonic Distortion | < 0,005% (1 kHz, 2 V RMS) XLR < 0,3 % (1 kHz, 49 V RMS) XLR |
Channel separation | > 110 dB |
Signal-to-noise ratio | > 115 dB (20 Hz – 80 kHz) |
Tube complement | 4x 6922, 2x 6H30PI |
Power | 230 V / 50-60 Hz / 180 VA |
Dimensions (w x h x d) | 450 x 190 x 465 mm |
Weight (net) | 29 kg |
