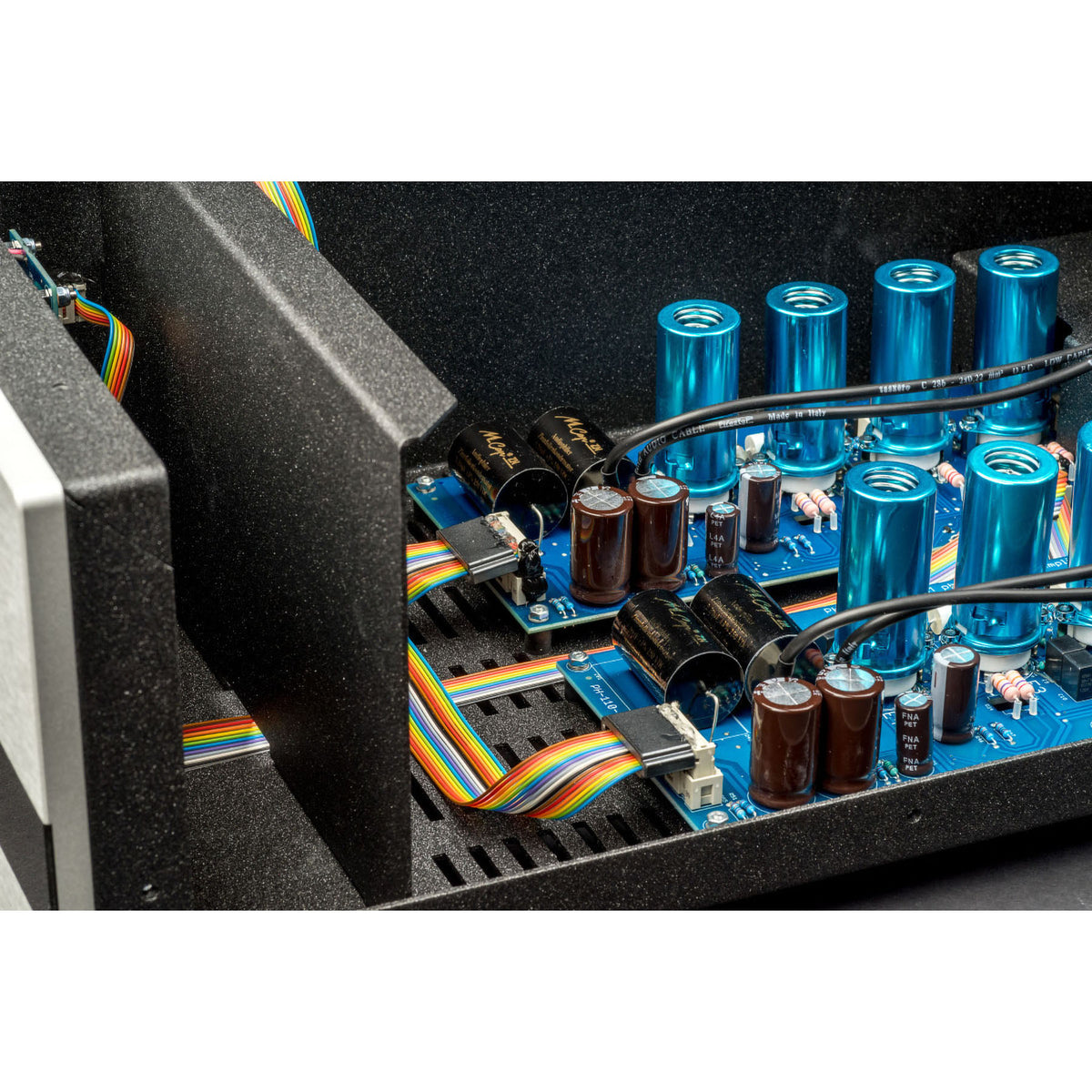

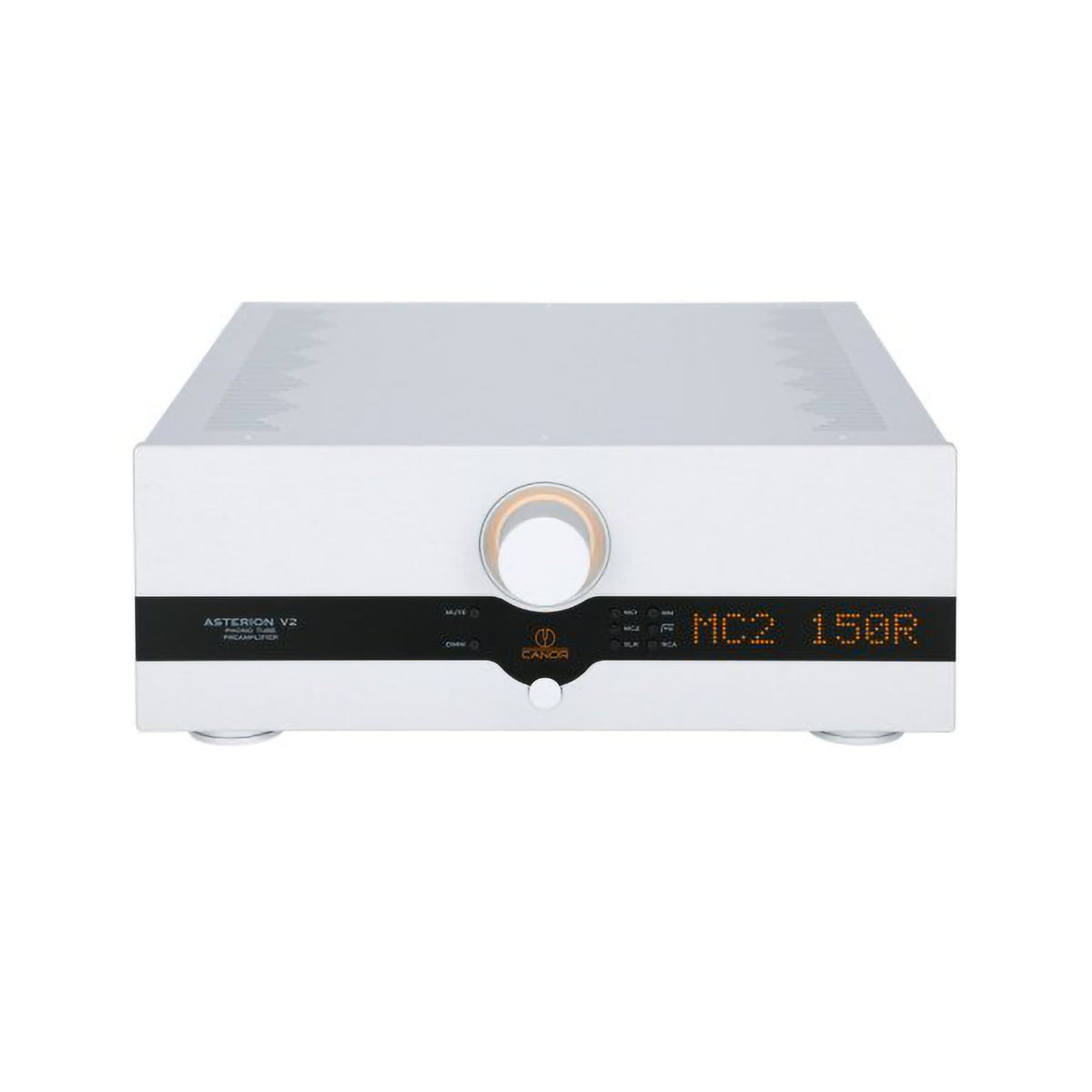

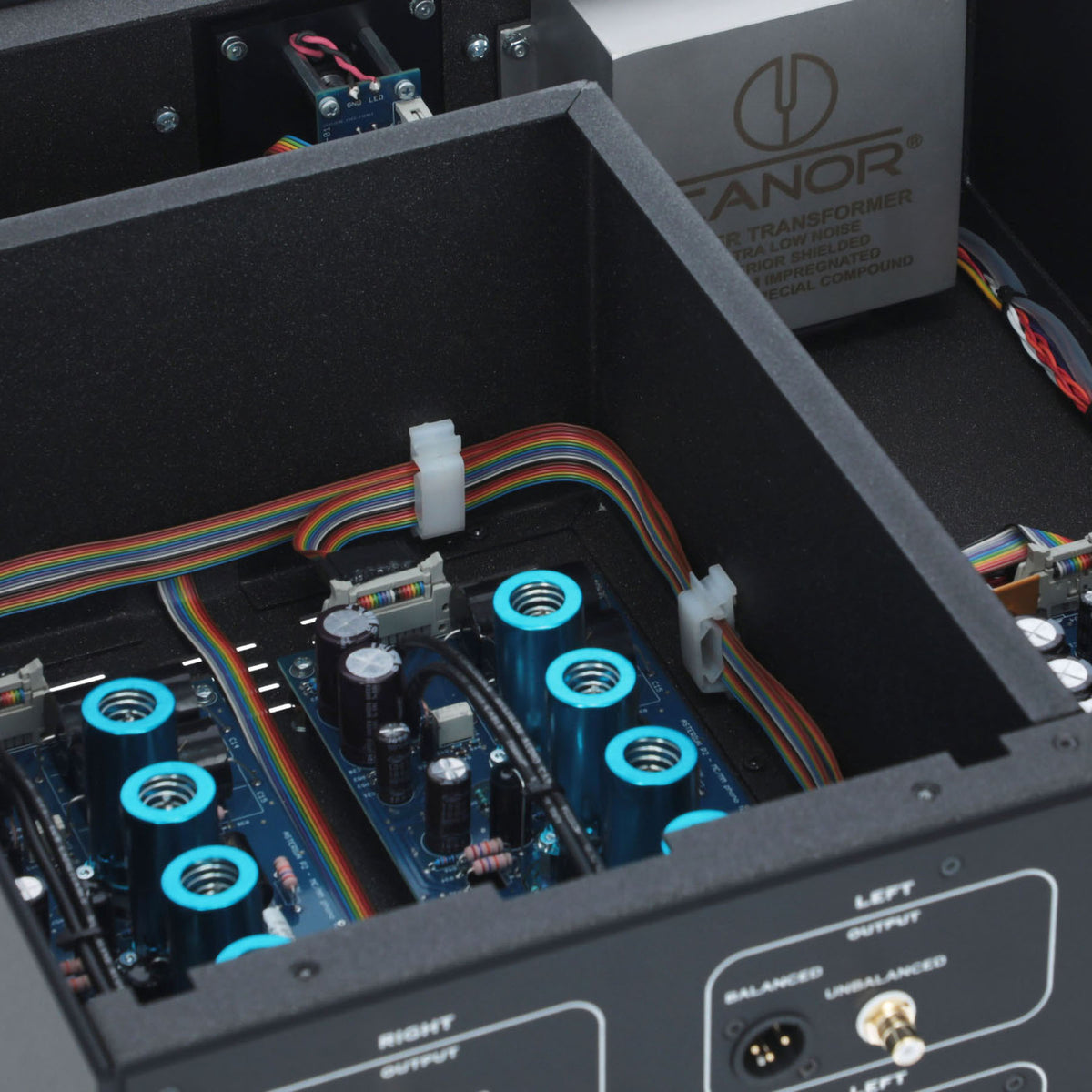

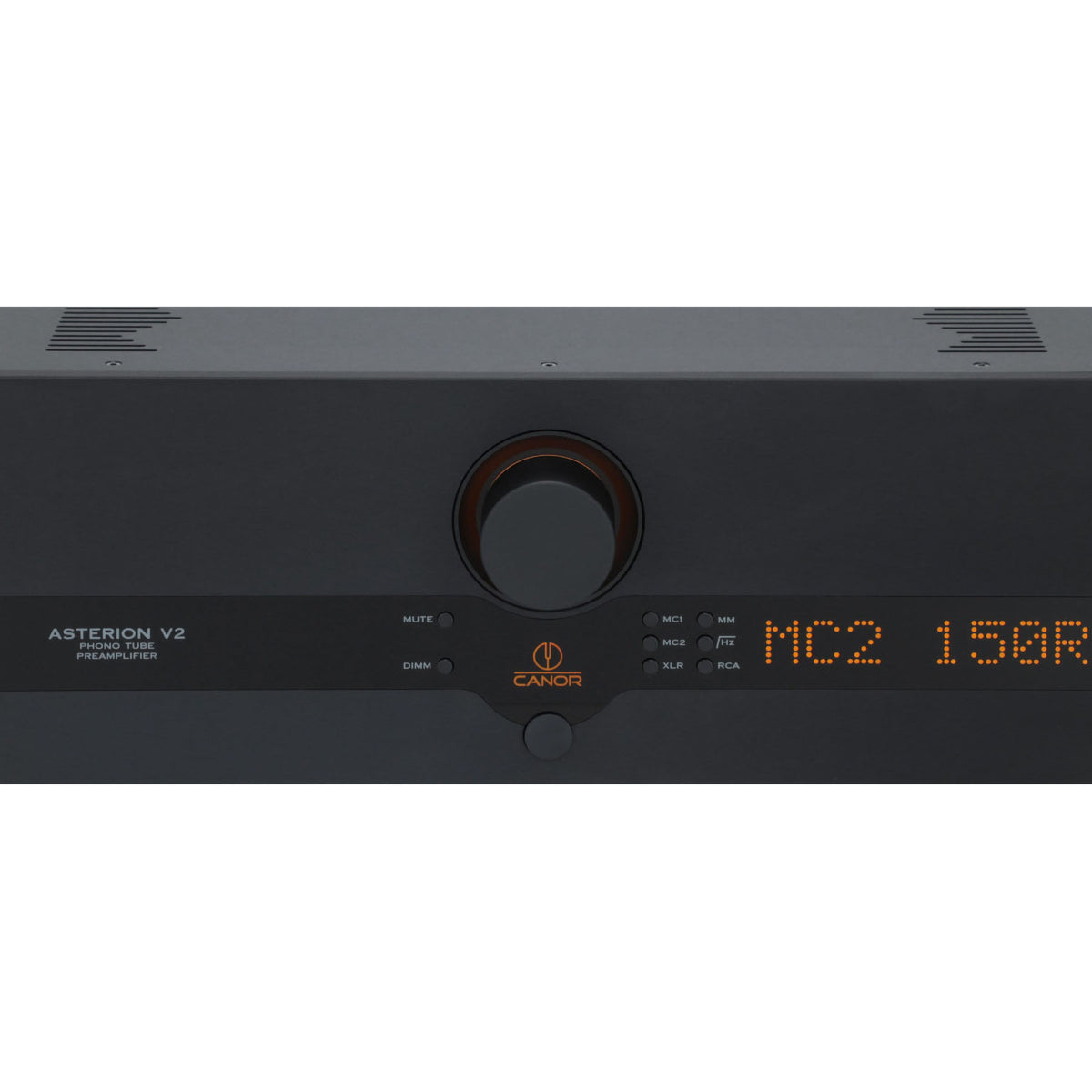

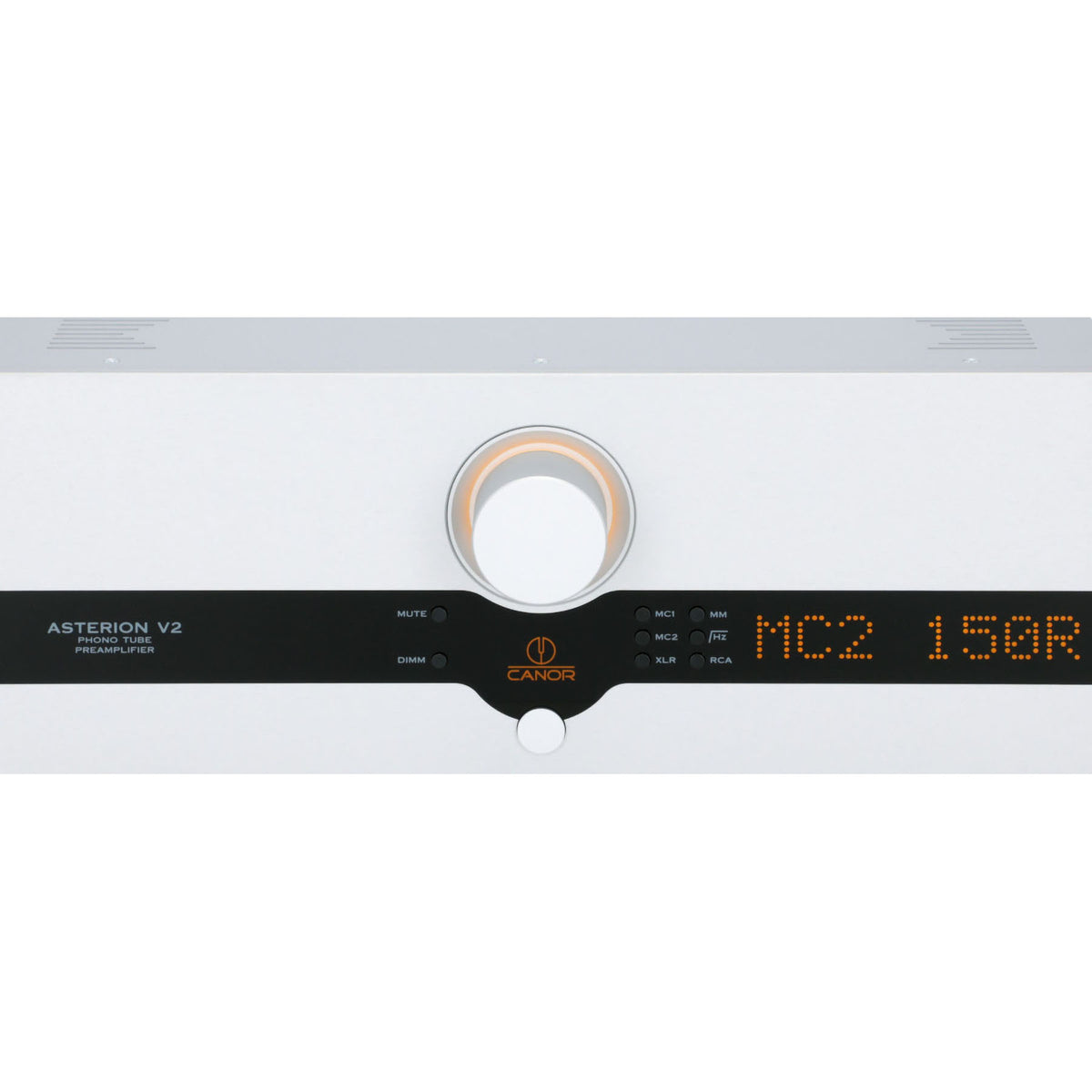

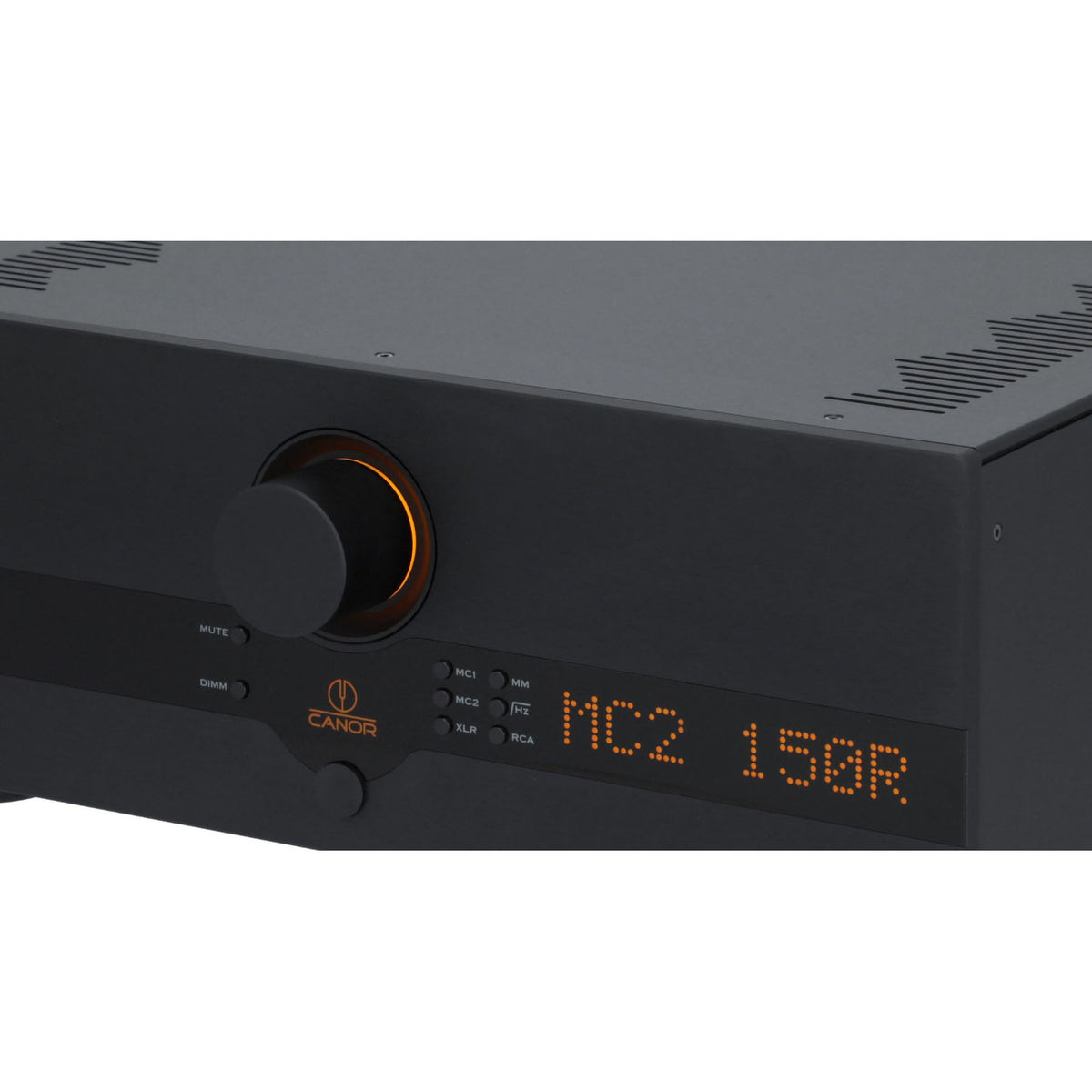

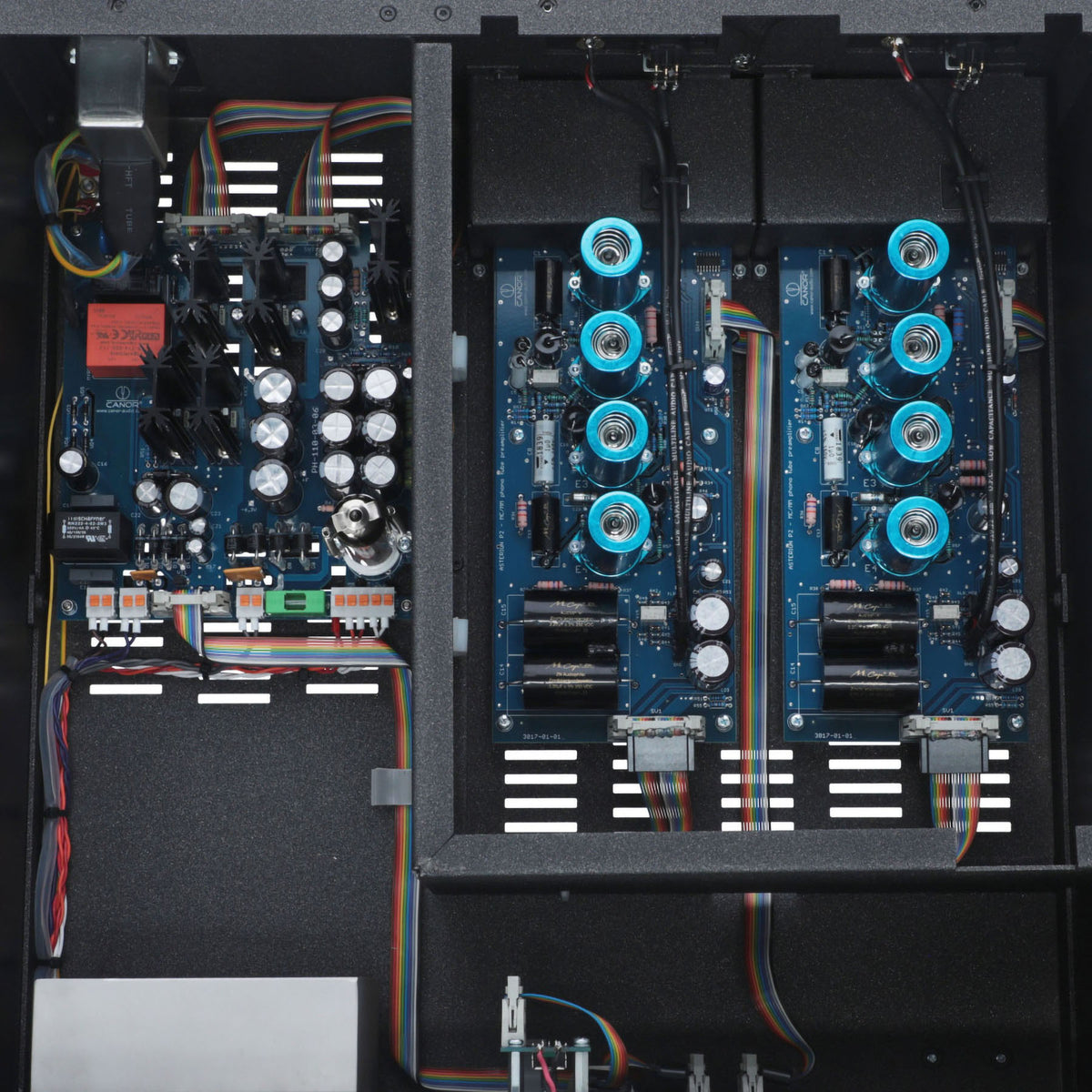

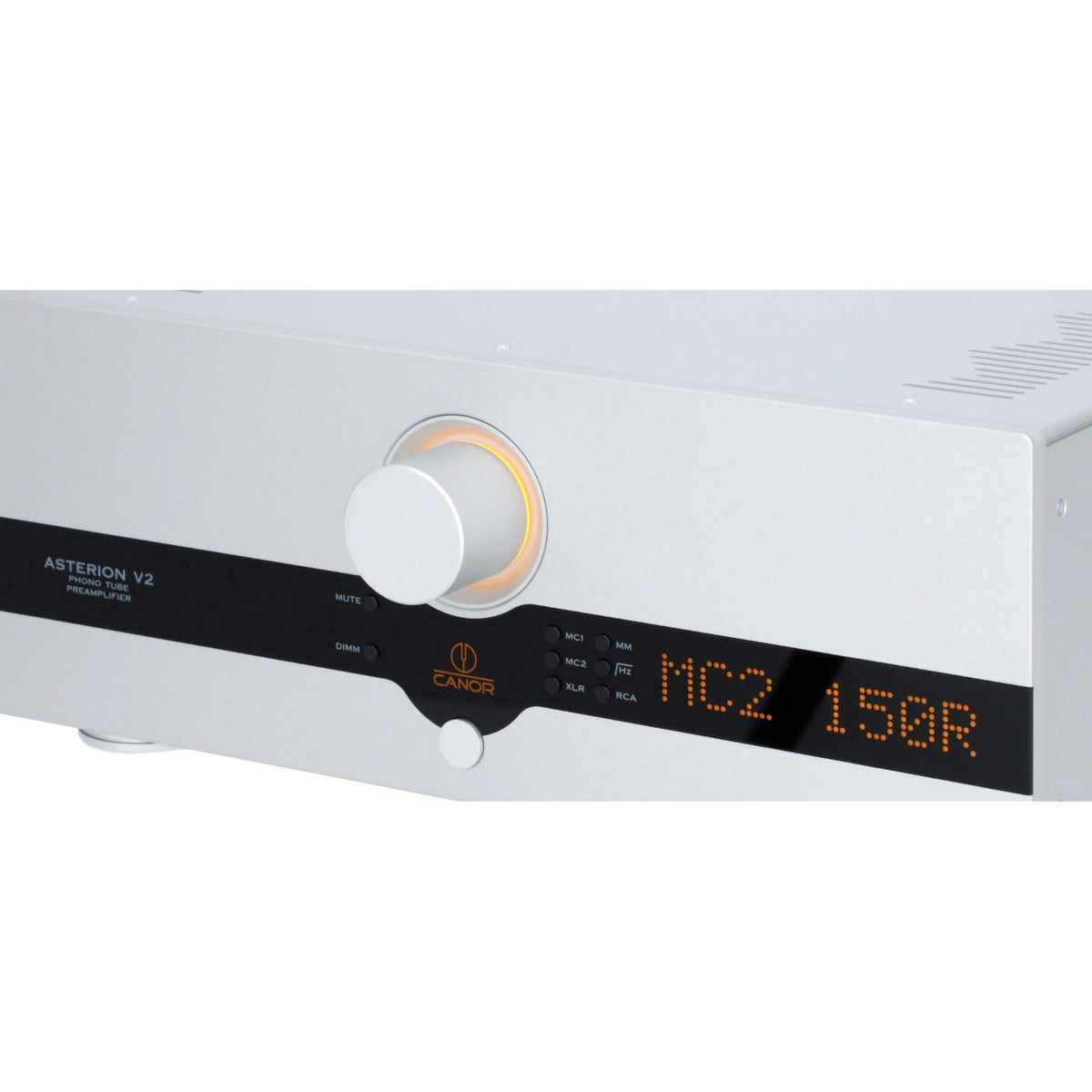

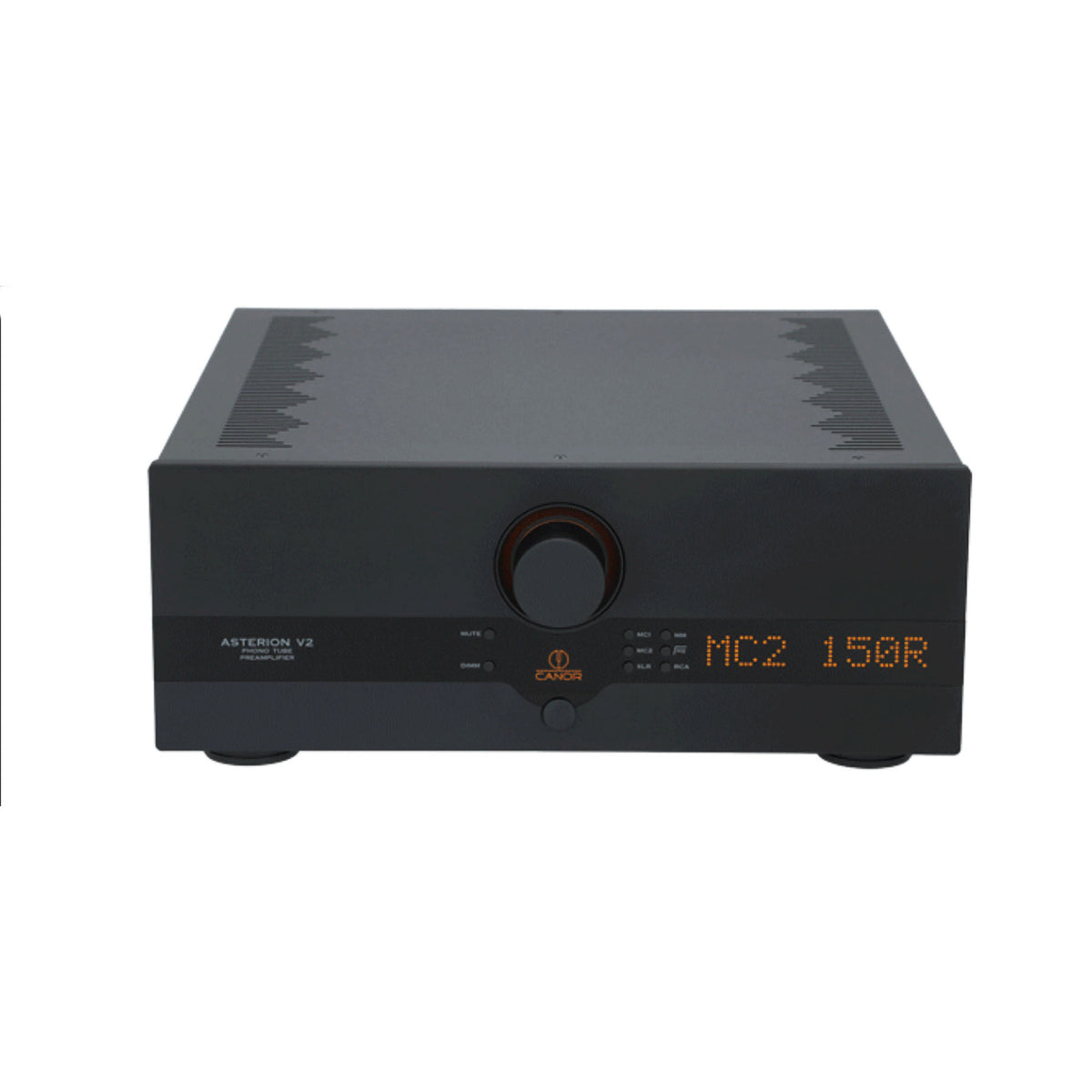

Canor Asterion V2 Tube Phono Preamplifier
SlovakiaCanor CD 2.10
Tube CD player / DAC
PERFORMANCE LINE
CANOR CD 2.10 is a tube DA converter / CD player utilizing AK4490 32-bit DA converter.
Highlights
01 It operates also as a high-quality DAC
02 Analogue and digital parts are strictly separated and independently powered
03 Super symmetrical passive filters optimized for the highest steepness
Main Features
Sample rate converter
The Canor CD 2.10 is equipped with a sample rate converter that up-samples all the sample rates (from all the inputs – USB, SPDIF as well as CD) on the level 192 kHz.
The sample rate converter provides the same low jitter for all inputs and sample rates. The jitter is up to 50 ps.
Input toroid transformer
Input toroid transformer is relatively small in size and is characterized by a low radiated magnetic field and low mechanical hum
Analogue and digital parts
The device is optimized for USB playback (USB – PCM 32 bit/768 kHz, DSD64, 128 and 256).
The coax SPDIF inputs and outputs are galvanically separated (coaxial input is separated by a high-frequency transformer) and analogue and digital parts are strictly separated and independently powered.
Product features
- A tube DA converter/CD player utilizing AK4490 32-bit DA converter
- A silent slot-in CD drive mechanism
- PCB’s utilize our premium CMT ™ technology
- Analog signal is being processed by strictly symmetrical tube circuits
- Coaxial input separated by a high-frequency transformer
- Super symmetrical passive filters optimized for the highest steepness
Reviews
Canor AI 2.10 & CD 2.10 – Review – Area DVD (DE)
Canor AI 2.10 & CD 2.10 – Top-Klang aus der Slowakei
09.12.2021
Canor AI 2.10 & CD 2.10 – Review – HiFi Voice (CZ)
Canor AI 2.10 & CD 2.10 – Test
03.11.2021
Canor AI 2.10 & CD 2.10 – Review – Stereoplay (DE)
Canor AI 2.10 & CD 2.10 – Zurück in die Zukunft
01.09.2021
Canor CD 2.10 – Review – Hi-Fi News (EN)
Canor CD 2.10 – CD Player/USB DAC
10.05.2021
Canor CD 2.10 – Review – HiFi-IFAs (DE)
Canor CD 2.10 – High End Röhren CD-Player mit Hi-Res D/A-Wandler
02.05.2021
Canor AI 2.10 & CD 2.10 – Review – HVT (NL)
Canor AI 2.10 & CD 2.10 – Canor in D groot en 6x 6922
15.01.2021
Canor CD 2.10 – Review – i-Fidelity (DE)
15.01.2021
Canor AI 2.10 & CD 2.10 – Review – Audio (DE)
Canor AI 2.10 & CD 2.10 – Crème brûlée
01.12.2020
Canor CD 2.10 – Review – Stereo (DE)
Canor CD 2.10 – Canors Röhrentraum
15.10.2020
Canor CD 2.10 – Review – Audiophile (FR)
Canor CD 2.10 – Bonne nouvelle: la marque Slovaque CANOR se rapproche de la France
01.10.2020
Canor AI 2.10 & CD 2.10 – Review – Lite-Magazin (DE)
Canor AI 2.10 / CD 2.10 – HiFi-Spezialisten der Moderne
15.05.2020
Canor AI 2.10 & CD 2.10 – Review – HiFi & Record (DE)
Canor AI 2.10 & CD 2.10 – Dream Team
15.04.2020
| Load capacity MM / Gain | 50, 150, 270, 370, 520, 620, 740, 840 pF / Gain: 46 dB |
| Input impedance MC1 / Gain | 10, 20, 40, 80, 150, 300, 600, 1.200 Ω / Gain: 70 dB |
| Input impedance MC2 / Gain | 2, 5, 10, 20, 40, 80, 150, 300 Ω / Gain: 76 dB |
| Output impedance | < 250 Ω |

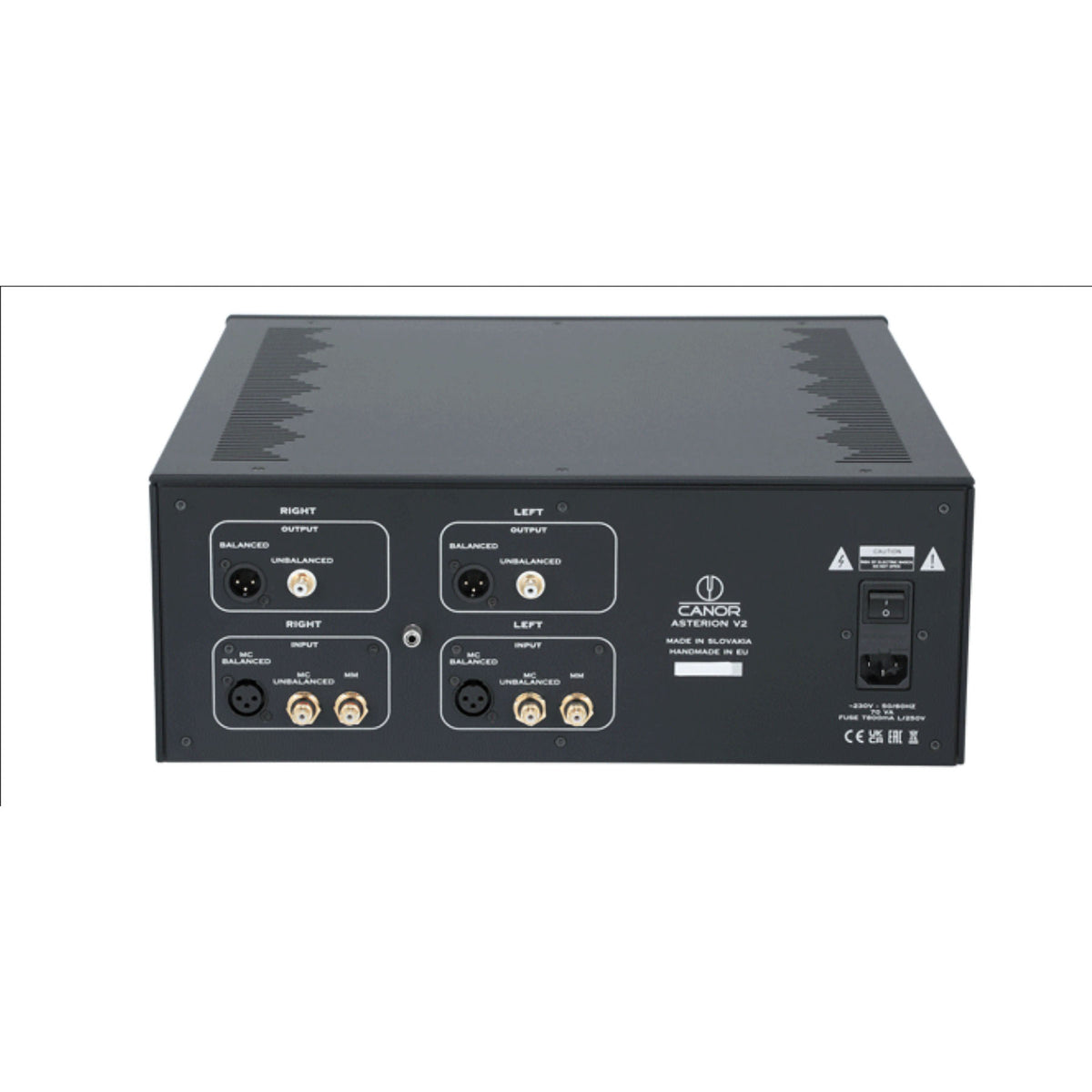

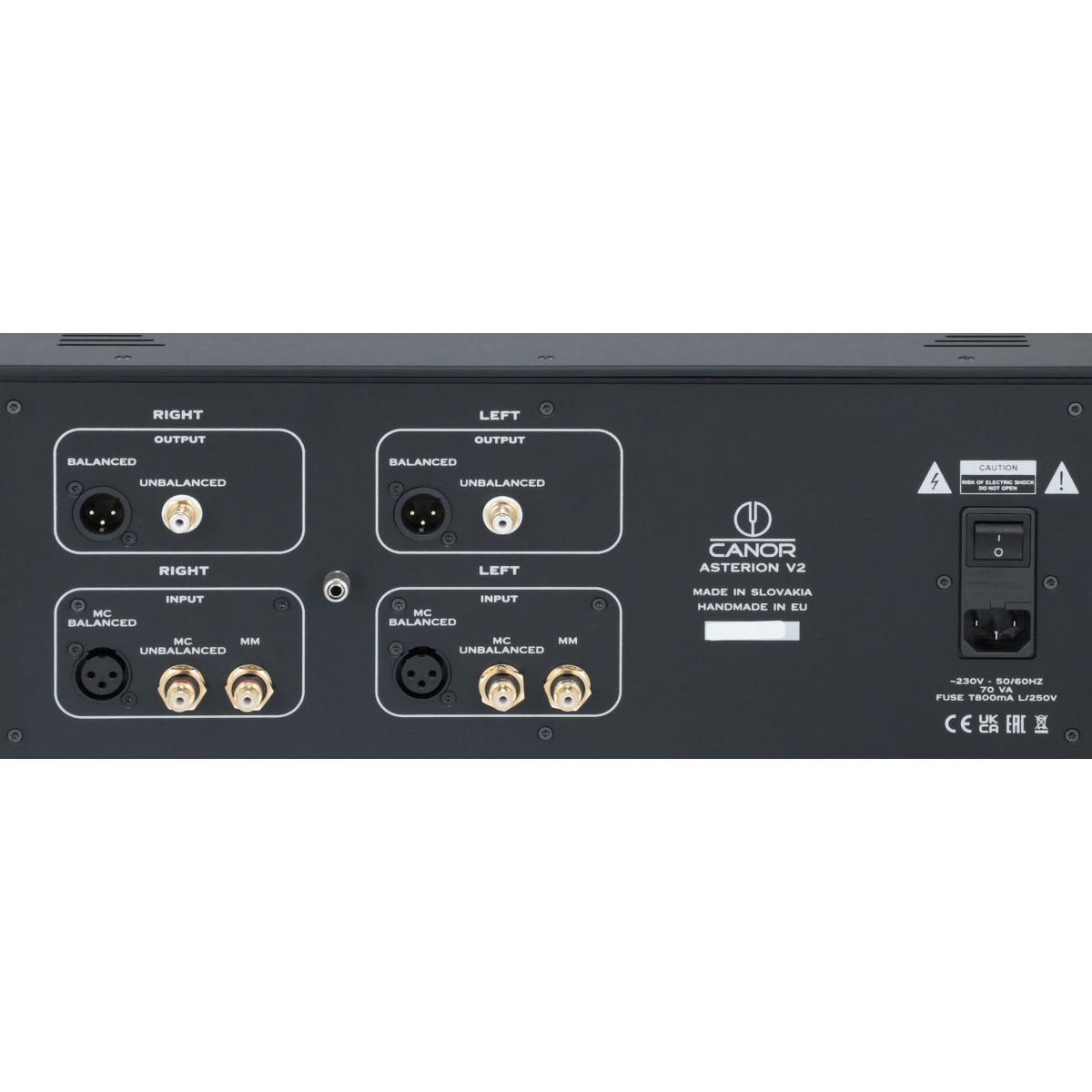

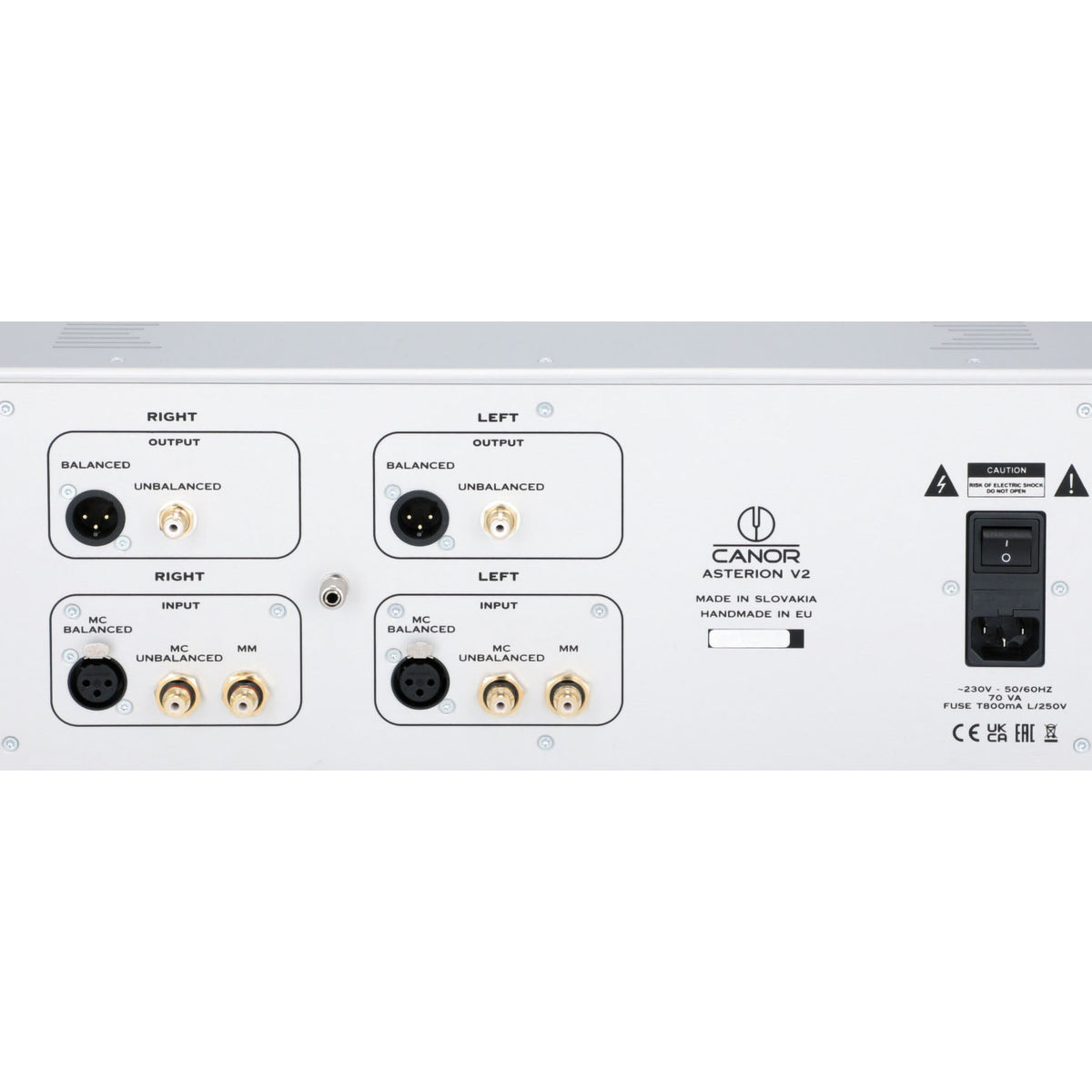

| Inputs | XLR -> MC; RCA -> MM / MC |
| Outputs | RCA / XLR |
| Total Harmonic Distortion | MM / MC <0,1% / 1 VRMS |
| Subsonic filter / threshold frequency | 18 dB / Octave / 18 Hz |
| RIAA accuracy | 0,3 dB / 20 Hz – 20 kHz |
| Signal-to-noise ratio MM | < 72 dBV (87 dBV – IEC – A) |
| Signal-to-noise ratio MC | < 72 dBV (87 dBV – IEC – A) |
| Tube complement | 8 x 6922EH, 1 x 6CA4EH |
| Power | 230 V / 50 Hz / 70 VA |
| Dimensions (w x h x d) | 435 x 170 x 485 mm |
| Weight (net) | 18 kg |
