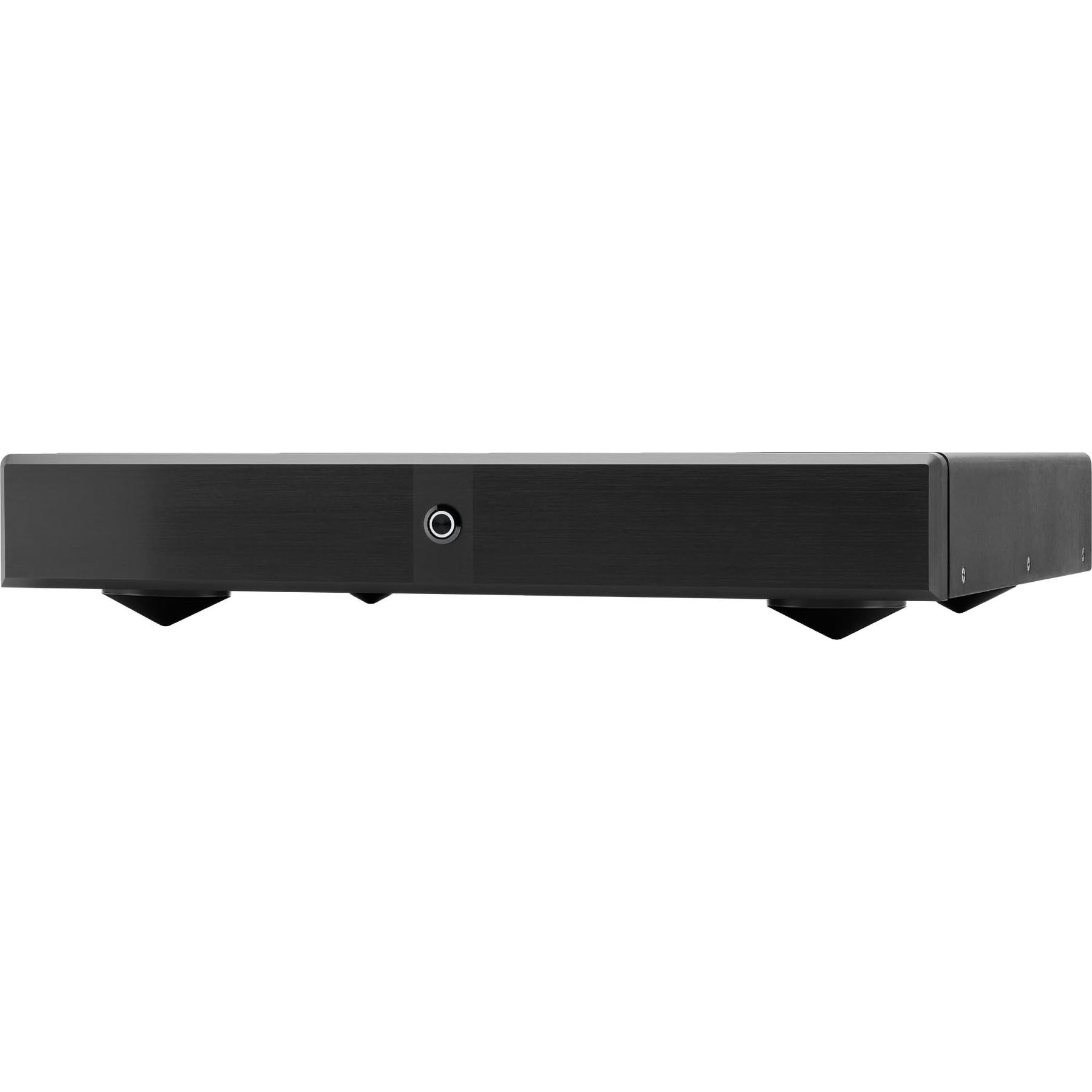

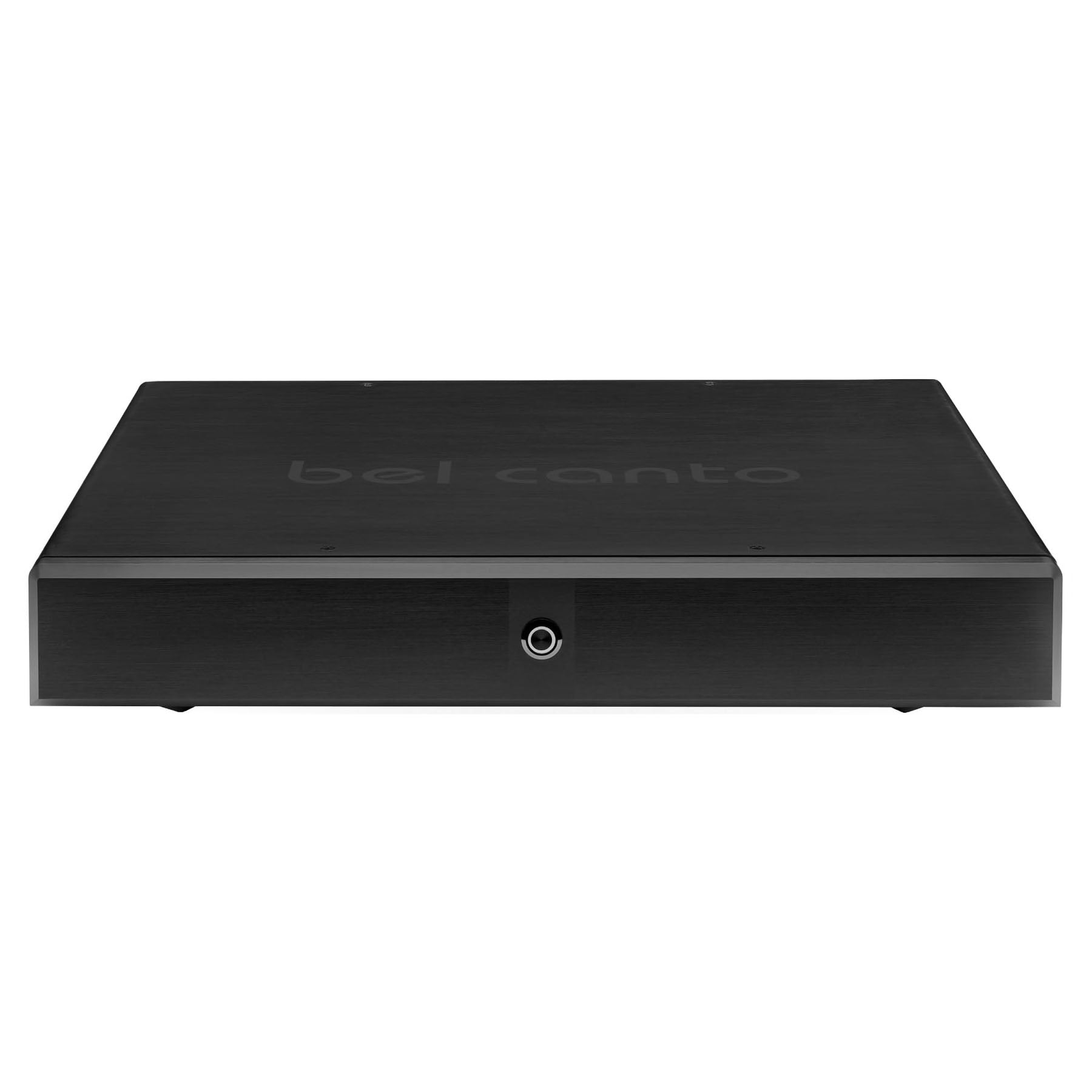

Bel Canto E1X Stereo Power Amplifier
USAE1X Stereo Amplifier
The E1X Stereo amplifier is designed in a sleek all-aluminum chassis using our unique constrained layer damping that provides the highest quality anti-vibration platform for high-power amplification. The E1X discrete SSHC (Single Stage High Current) input amplifier and output stage are combined with switch mode power that produces 250W 8 ohms and 500W into 4 ohms per channel, delivering incredible high-power accuracy and musicality to your loudspeaker.
The highly efficient E1X Amplifier is designed with many bespoke technologies and is always in a ready state for high performance operation. The E1X Amplifier is designed to drive any loudspeaker with ultra-low noise, high power amplification delivering full musical detail from your source to your loudspeaker.
The high efficiency of Class D eliminates thermal modulation, making the E1X amplifier resistant to output stage bias wander and sonic ghosting. The output power devices are operating as efficient switches, in that few output devices are needed to deliver considerable audio power. The E1X Amplifier is designed with ultra-short signal paths and uses the absolute minimum number of output devices to deliver over 500 watts of audio power without loss of dynamics, remaining true to the audio source.
High Dynamic Range - Low Noise and Distortion: The single stage architecture of our linear switching power stage has remarkable audio band noise characteristics. With high dynamic range and vanishingly low IMD and THD distortion hear-through performance is delivered.
E1X Amplifier Technology
Our proprietary SSHA (Single Stage High-Current Amplifier) interposer defines the sonic quality of the E1X Amplifier. This is a very fast, low noise amplifier with a single-stage folded cascode architecture and over 500mA of peak current output capability. It maintains constant very low distortion levels through the audio band because of its high open-loop bandwidth. The SSHA module brings a further element of dynamic resolution and contrast to the NCore Amplifier power buffer. The vertical modular design permits a tight, efficient Printed Circuit Board (PCB) layout that combines the best of IC based and discrete component design. The PCB represents a final degree of design refinement that is especially critical when the circuit is capable of 130dB of dynamic range or more.
Performance: |
|
| Power Output 1% THD per Channel: | 500W 4 ohms, 250W 8 ohms |
| Minimum Load: | 2 ohms |
| Peak Output Current: | 27 amperes |
| Frequency Response: | +/-3 dB 0Hz-50KHz, all loads |
| THD+N: | 0.002% 1W, 1KHz, 4 ohms |
| IMD (CCIF): | 0.0003%, 1W, 14:15KHz, 4 ohms |
| Output noise: | 35uVRMS A-weighted 10Hz-20KHz |
| Voltage gain: | 27dB (internal switches select for 33dB) |
| Damping factor: | >500 |
| Output Impedance at 100Hz: | <16 milliohms |
| Dynamic Range: | 126dB |
| Input Voltage for Max Output: | 2.3Vrms at 27dB gain |

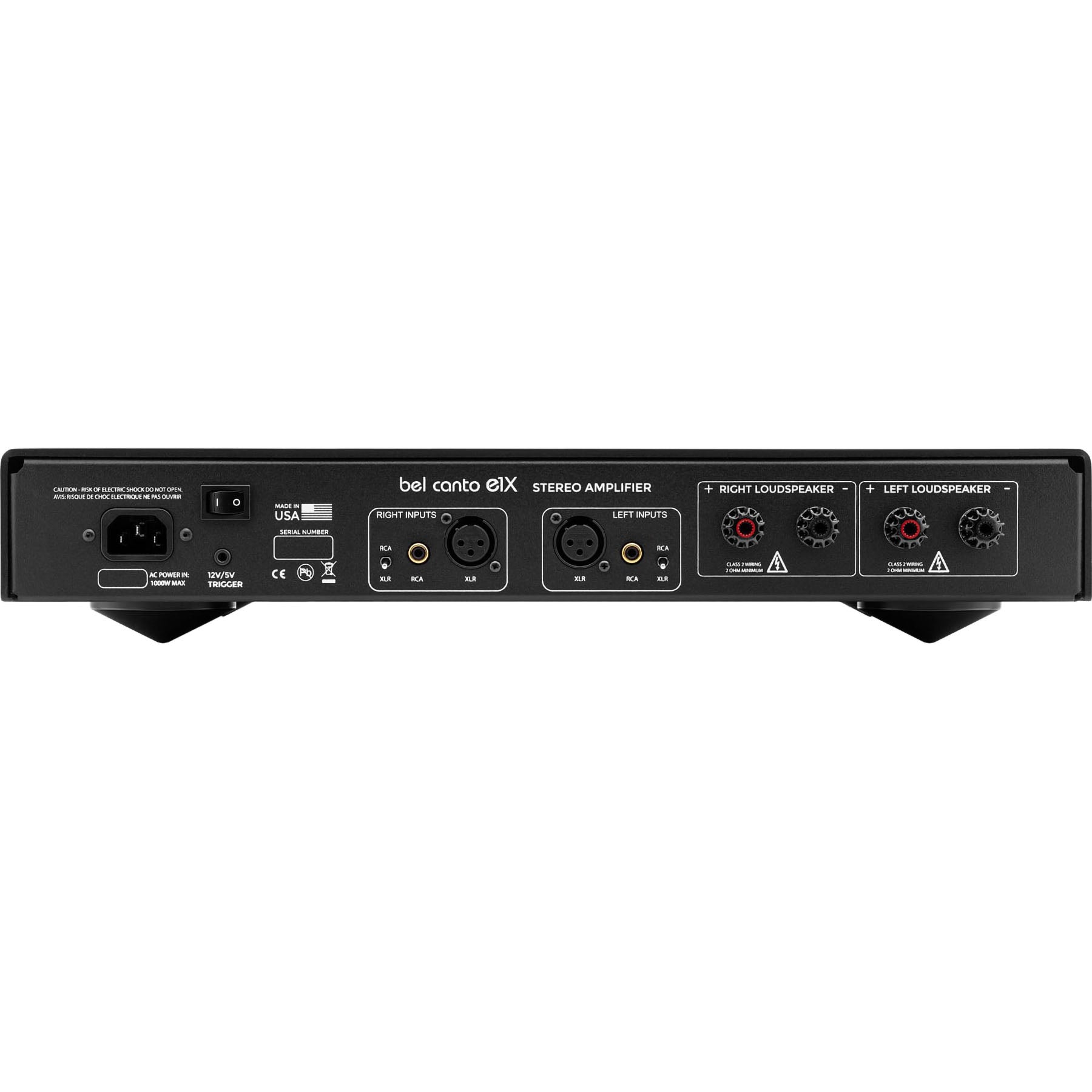

| Input connections: | Single-ended RCA or balanced XLR |
| RCA input impedance: | 10Kohms |
| Balanced input impedance: | 20Kohms |
| Output connections: | 2 sets WBT Nextgen 5-way binding posts |
General: |
|
| Power On usage: | 44W |
| Standby usage: | 0.5W |
| Internally Set Operating Voltages: | 100-120VAC or 230-240VAC 50/60 Hz |
| Size: | 17.75 W x 15.75 D x 3.25 H inches, 451 x 400 x 83 mm |
| Weight: | 13 lbs (5.9 kg) |
Features and specifications are subject to improvements and changes without prior notice.
