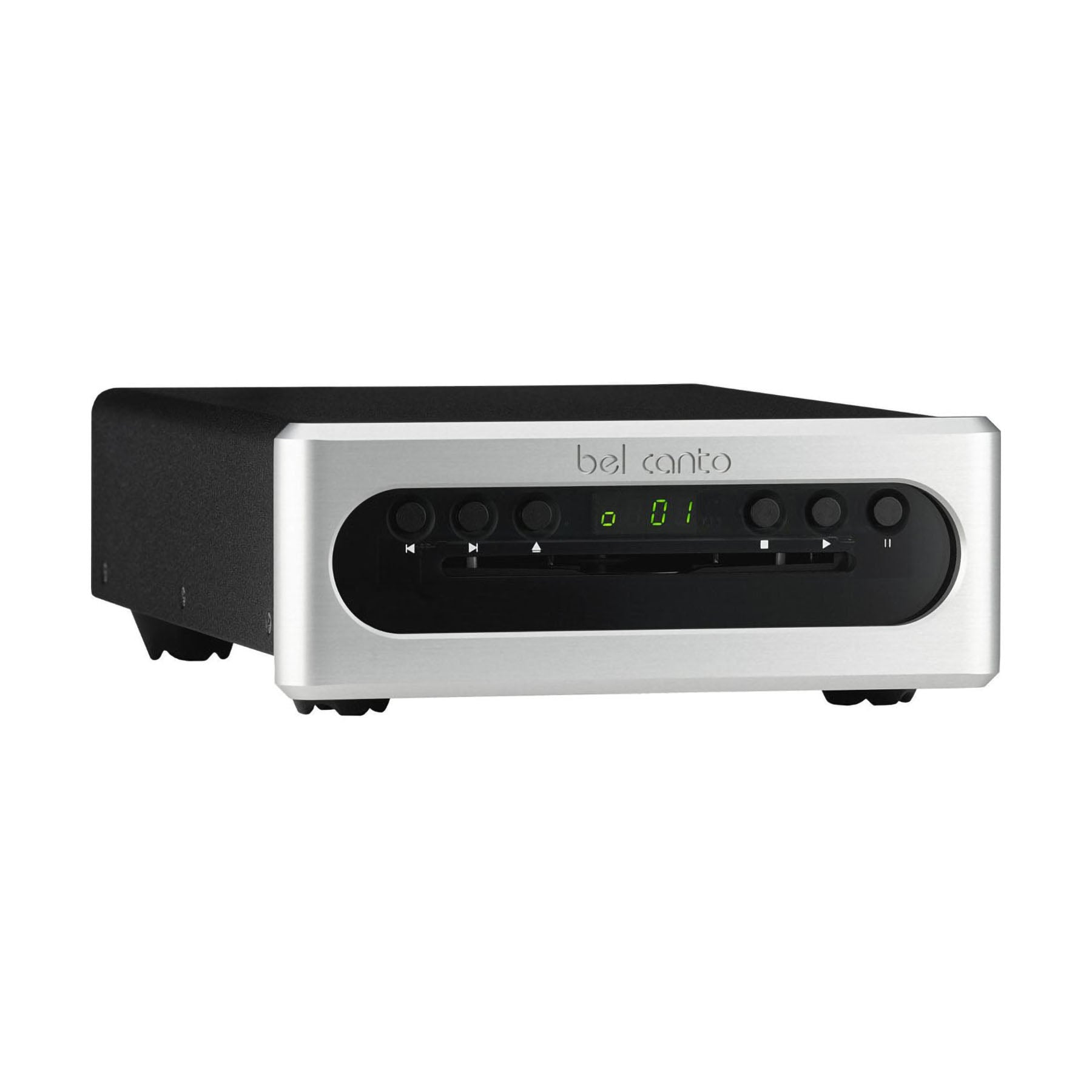

Bel Canto CD3t CD Transport
Faceplate Colour
Bel Canto CD3t CD Transport

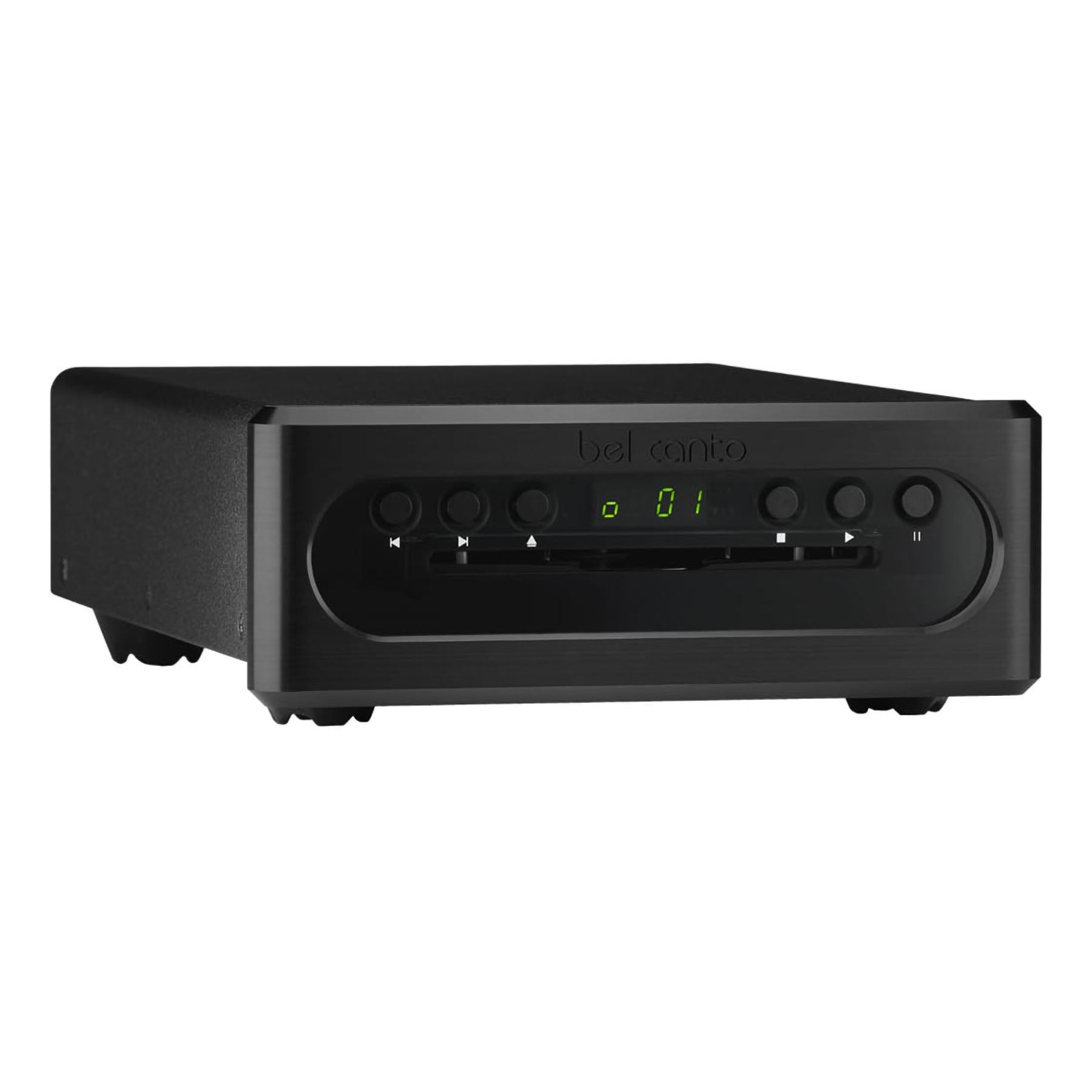

Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

Bel Canto

CD3t Transport
The CD3t CD transport provides the most direct digital path to your Digital to Analog converter with a convenient slot load drive.
- Front Panel Control
- Easy to Read 4 Character Display

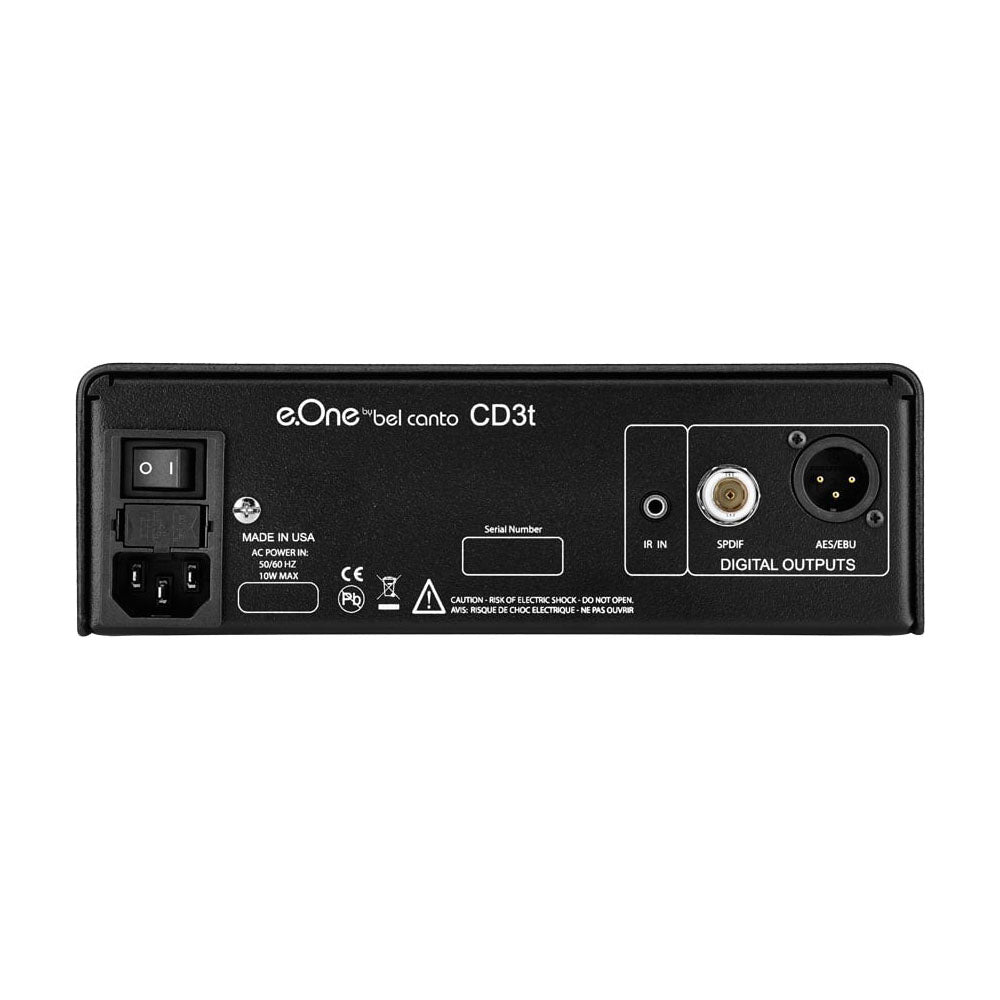

- 2 Digital Outputs: SPDIF and AES/EBU
- Remote Control
- Available in Silver or Black Faceplate
CD3t Transport Features
Bel Canto’s e.One CD3t plays your CD, CDR, CDRW collection with accuracy and simplicity. Connect to your DAC Preamp using AES/EBU XLR, SPDIF BNC (RCA adaptor included) for an accurate data transfer of 44.1kHz/ 16bit.
CD3t Transport Features
Bel Canto’s e.One CD3t plays your CD, CDR, CDRW collection with accuracy and simplicity. Connect to your DAC Preamp using AES/EBU XLR, SPDIF BNC (RCA adaptor included) for an accurate data transfer of 44.1kHz/ 16bit.
Disc Compatibility: | CD-DA (Red Book IEC908), CD-R and CD-RW discs |
Digital Outputs: |
|
Maximum Data Rate/Bit Depth: | 44.1kHz/16bit |
Digital Output types: | AES/EBU, XLR, SPDIF |
AES/EBU Digital Output Level: | 3V p-p, 110 ohms, 44.1K samples/second |
SPDIF Digital Output Level: | 0.6V p-p, 75 ohms, 44.1K samples/second |
Additive jitter: | < 100 pS RMS |
General: |
|
StreamUnlimited Slot-load mechanism | |
Power Draw: | 4W |
Sleep Mode power: | <0.5W |
Power Requirement: | Internally set for 100, 120, 220, or 240VAC; 50 or 60 Hz |
Dimensions: | 8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm) |
Weight: | 12lbs. (8.2 kg) |
Features and specifications are subject to improvements and changes without prior notice.
