R SERIES PRODUCTS

Designed for pure performance these products are crafted from the highest grade materials available for uncompromised musicality and are the culmination of our cutting-edge research and development. From the elegant machined chassis to their incredible technical attributes the R series products will delight and enchant you with every detail.

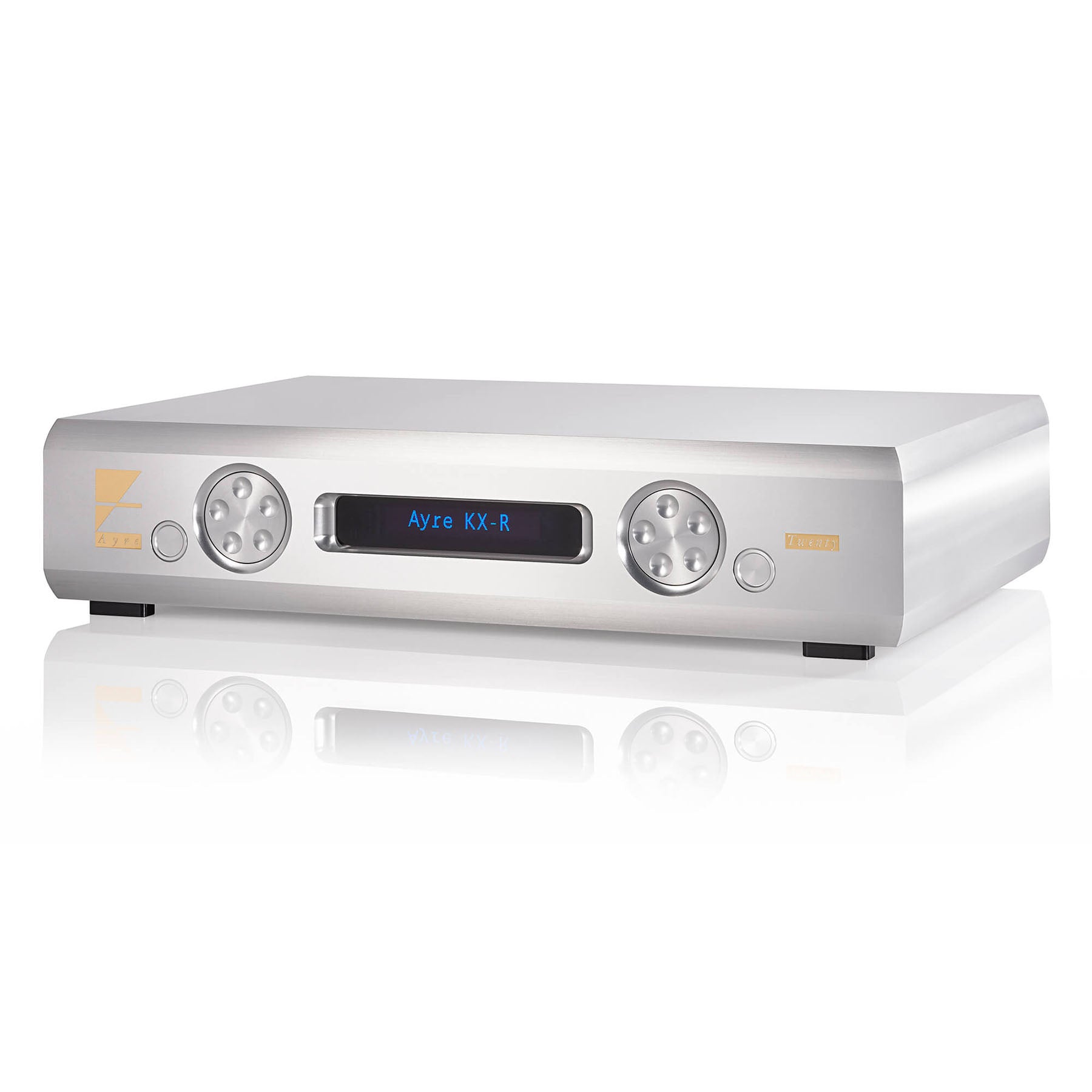

Ayre KX-R Twenty Line-level Preamplifier

Since the introduction of the KX-R preamplifier in 2008 we have embarked on many projects involving new technologies. While progressing along this musical journey, our collective knowledge base has grown immensely in all areas of audio circuit design. These new insights have been implemented at the highest level in our complete redesign of the KX-R Twenty. These technologies and upgrades to the KX-R have resulted in a preamplifier which is as revolutionary now as the KX-R was when it was originally introduced with the world’s first Variable Gain Transconductance (VGT) volume control.

The debut of our AyreLock power supply uses a new type of discrete voltage regulation with more than twice the capacitance of the old power supply, delivering powerfully layered dynamics—musically. Our optimizations of the current mirror and addition of the Ayre Diamond output stage impart such a stunning sense of realism that you will be captivated from the first note. The resolution of detail and ultimate sense of refinement you will discover in the KX-R Twenty both come from hundreds of hours of listening tests, allowing us to choose the absolute best part for every critical area along the audio circuit.

Finally, following our mantra that everything matters, we have explored each detail in the audio path from circuit trace length to part orientation and have included processes which many would consider fanatical, pushing this preamplifier to the brink of perfection. Celebrate twenty years of adventure and invention with the KX-R Twenty.

The sound was open and driving and rhythmic and dynamic—very dynamic. It was… it was… you had to be there. I'm sure glad I was.

-Wes Phillips, Stereophile Blog

Features

• Variable Gain Transimpedance (VGT) volume circuit

• Ayre’s exclusive Diamond output circuit

• AyreLock power supply

• Zero-feedback

• Fully-balanced discrete circuitry

• 60 step volume control, each of 1.0 dB

• Equilock circuitry for active gain devices

• Input ground switching for true source isolation

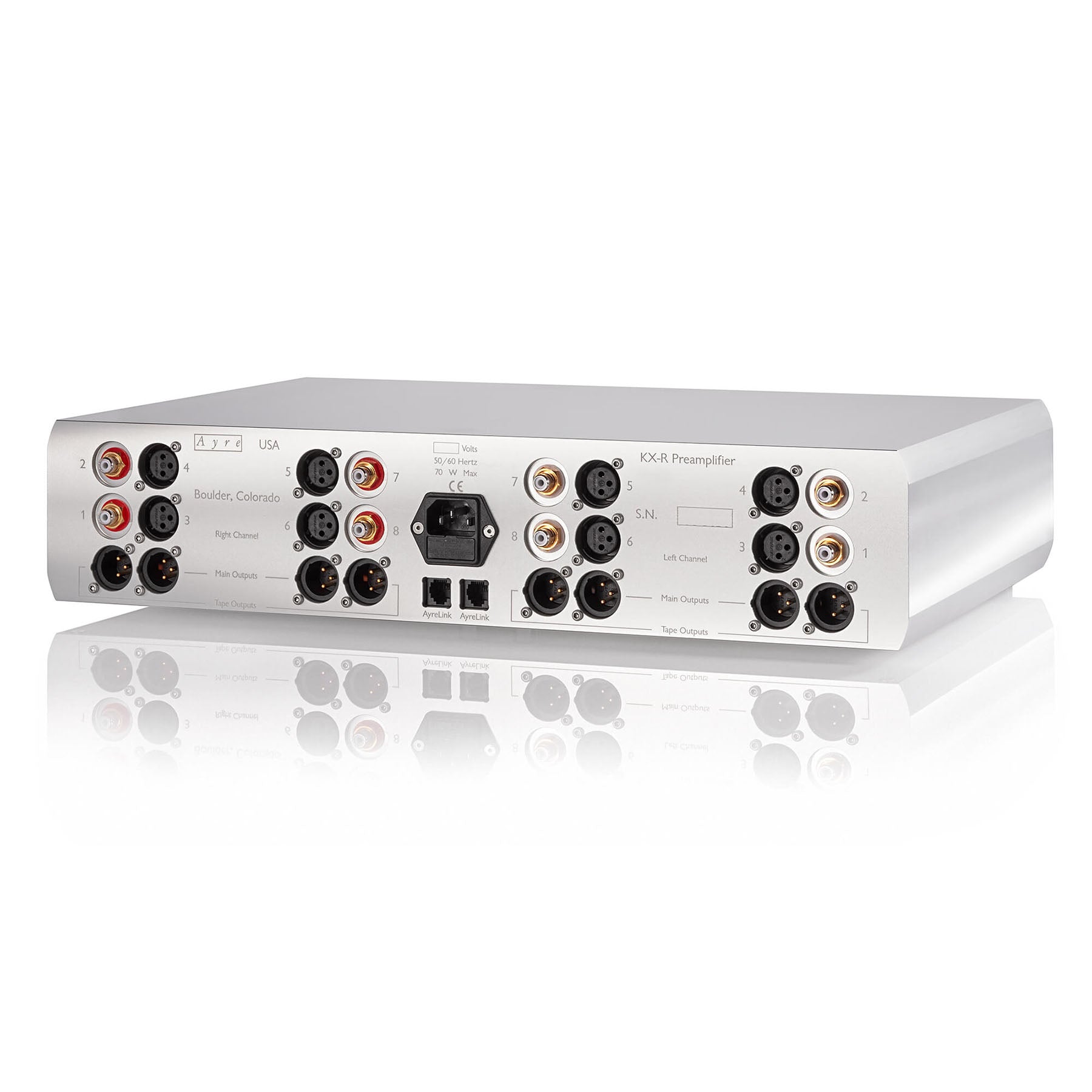

• Eight inputs: four balanced, four single-ended

• Two balanced outputs, two balanced tape outputs

• Dimmable silent-mode fluorescent display

• Ultra-high-speed circuit board material

• Fly-by-wire control system

• Solid aluminum monocoque chassis

• Ayre Conditioner Power-Line RFI Filter

• Programmable processor pass-through input

• Full-function remote control operation

Input Impedance

2 Mohm balanced (1 Mohm per phase)

Output Impedance

300 ohm balanced (150 ohm per phase)

Frequency Response

DC – 250 kHz

Power Consumption

35 watts in standby or normal operation

65 watts with remote control active

Dimensions

17.25″ W x 11.5″ D x 3.75″ H

(43.8cm x 29.2cm x 9.5cm)

Weight

18 kg
