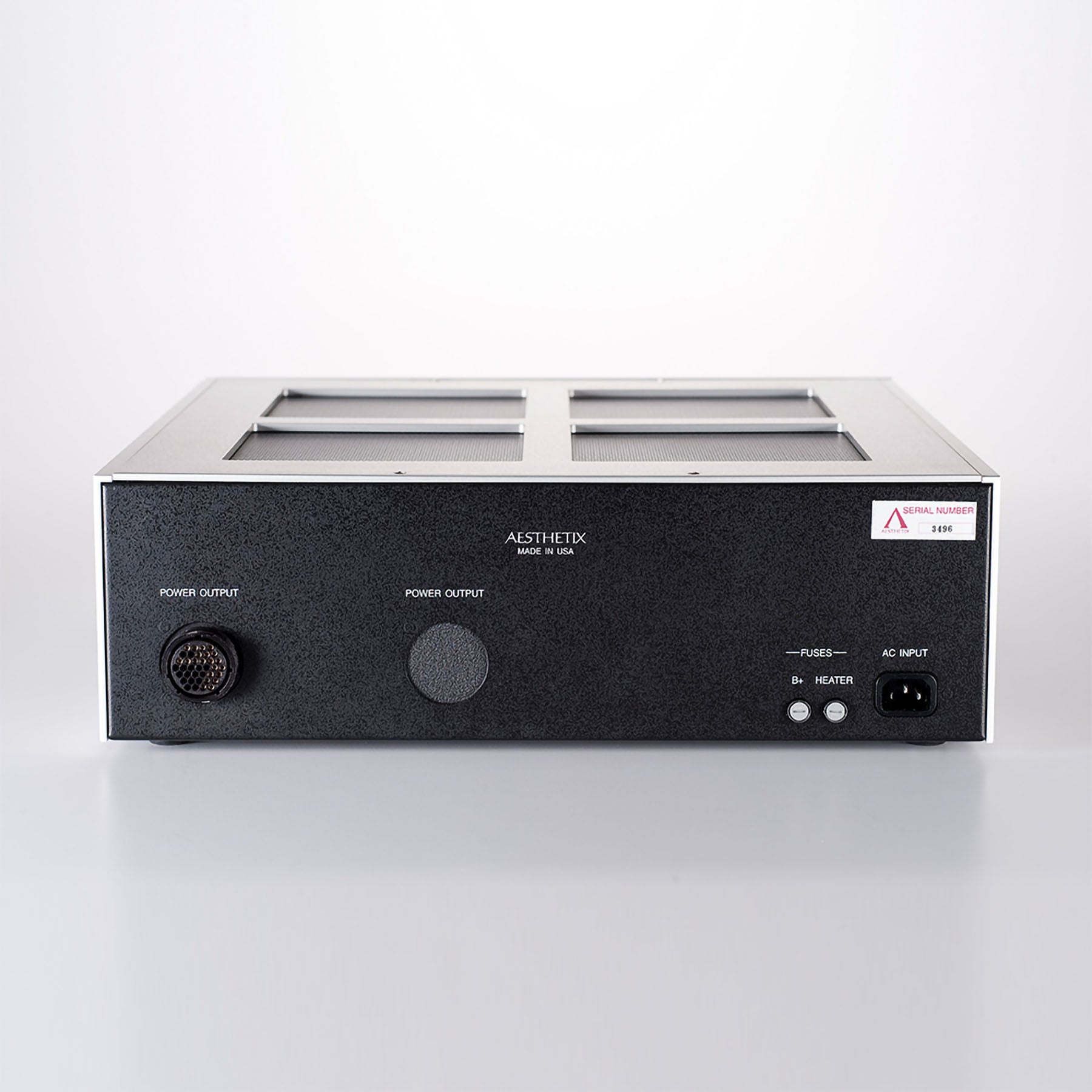

Aesthetix Jupiter Series Eclipse Power Supply

JUPITER POWER SUPPLY DETAIL

One defining characteristic of the Jupiter Series is separate power supplies. Each main unit, or audio chassis, is dual mono in construction; there are completely separate left and right audio boards and each has its own power connector on the rear of the chassis. Each main unit requires at least one power supply, a single power supply cannot power both an Io and a Callisto.

There are two versions of power supply available: Stereo or Dual Mono. In the stereo configuration, a single power supply powers both audio channels and has two power connectors on the rear. In the Dual Mono configuration, two separate power supplies are used, each with a single power connector. In the Dual mono configuration, the unit becomes pure dual mono, all the way down to the ac wall connection!

The Jupiter Series Power Supply is the size of a power amplifier and weighs approximately 50 pounds. The Power Supply has two main sections, the heater supply and the high voltage plus and minus supplies. At the heart of the heater supply is its massive, low flux, 210 VA power transformer which has fourteen separate secondary windings that are individually regulated and supply both the Power Supply and main unit heaters. The high voltage supply is composed of a similar massive 170 VA transformer which feeds a common-mode choke input filtering network and then high current vacuum tube regulators (one EL34/6CA7, three 12AX7 tubes per regulator). Each regulator is capable of supplying 600 volts at 100mA. There are two such regulators in the Power Supply. Each separate amplification or buffer stage has its own power supply filtering network and regulated heater supply to isolate individual sections and prevent stage interaction.
