Aesthetix Jupiter Series Callisto Two Chassis Eclipse Linestage
Aesthetix Jupiter Series Callisto Two Chassis Eclipse Linestage
Aesthetix Jupiter Series Callisto Two Chassis Eclipse Linestage

Aesthetix

Aesthetix Jupiter Series Callisto Two Chassis Eclipse Linestage

$56,700.00

Includes GST. 🚚 Free shipping on orders over $100 Australia wide at checkout.

Colour:Silver
Quantity:
Pickup available at 22 Saint Kilda Road Usually ready in 2-4 days

Aesthetix Jupiter Series Callisto Two Chassis Eclipse Linestage

Silver

22 Saint Kilda Road

Pickup available, usually ready in 2-4 days

22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

0395250022
We accept:
American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa Zip

Country of origin: USA

Ask Geoff

This product is not able to be added to your cart for one or more of these reasons.

  1. The supplier has a policy that prevents us from doing so.
  2. There are delays in supply, and I would prefer to make you aware of lead times;
  3. This is a bespoke item and I don't want you to pay in full and wait a long time for it to be made and shipped,
  4. I would like to discuss the synergy of the product matching with your system
  5. Due to fluctuating shipping and currency effects, the product may have come down in price. I can offer you a market price.

Please use this resource and contact me using the following form or call me.

Your Javascript is disabled

JUPITER ECLIPSE EDITION

Jupiter Series Io phono stage and Callisto linestage are available in (and factory upgradable to) an Eclipse Edition. The Eclipse transformation takes already industry standard setting products to a whole new level of performance. Io, Callisto and their respective power supply receive enhanced internal parts, improved chassis construction, and stunning customizable casework.

Stealthcap Capacitors

Musical signals passing through a capacitor are blurred or clouded as signal reflections bouncing off the capacitor plate corrupt the original musical signal. StealthCap capacitors created by Peter Moncrief aim to cure this problem by dramatically reducing reflections along the capacitor plate. The "Stealth Technology" is made possible by a combination of laborious precision handiwork and costly exotic materials including new conductors, dielectrics, and composite resins. The resulting signal has a quieter background, rich and detailed spatial imaging, time focused musical coherence, and a broader more impactful dynamic range. The Io Eclipse uses eight .22uF / 600v Stealth coupling capacitors made of exotic copper foil. These are used between the second and third gain stages, and the third gain stage and output stage. The Io and Callisto Eclipse output stages also use eight 4uF / 400v Stealth capacitors in a unique balanced configuration.

Chassis Construction

Eclipse Edition chassis feature an extremely rigid and acoustically damped design, delivering new levels of articulation and clarity. Three separate side and top panels are machined from aluminum billet. Each panel is constrain layer damped with advanced 3M adhesives, requiring a labor intensive application of heat and pressure for proper mating. Advanced interlock material and machine screws are used to attach the panels for easy tube access. Harmonic Resolution Systems Nimbus Couplers, specially made for Aesthetix, are used to intimately couple the chassis with the equipment rack, greatly reducing mechanical noise.

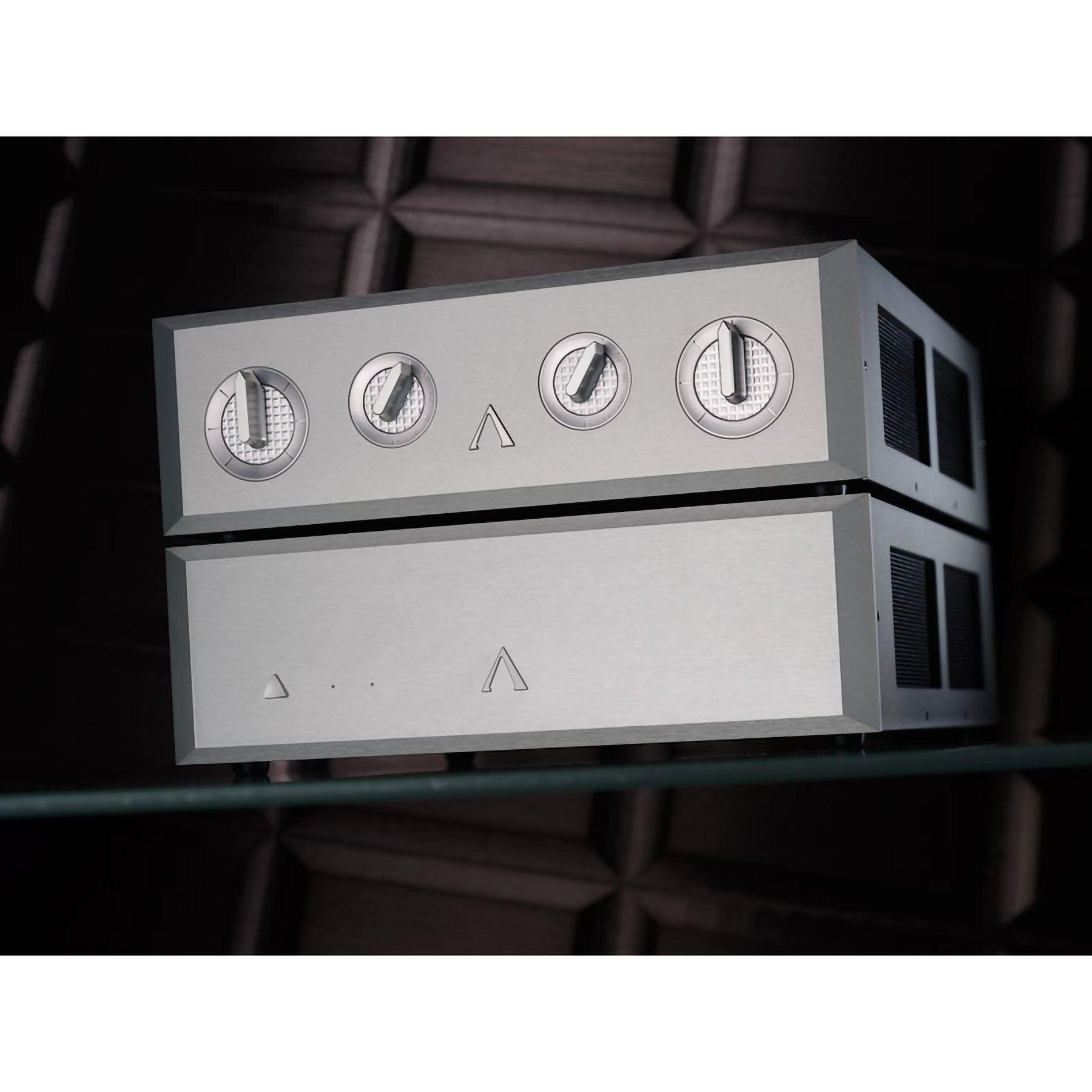

Casework Design and Customization

Eclipse editions feature a stunning multi-piece front panel which includes detailed machining of the front panel casing, inlay and logo. Jupiter Eclipse customers may personalize the appearance of their unit by selecting metal finishes for the faceplate, rings, knobs, dials and logo. Use our interactive online tool to design your own Io or Callisto Eclipse.
