Rotel A11MKII Integrated Amplifier
ChinaA11MKII
The A11MKII Integrated Amplifier delivers the ideal combination of power and connectivity for anyone seeking to elevate their listening experience.

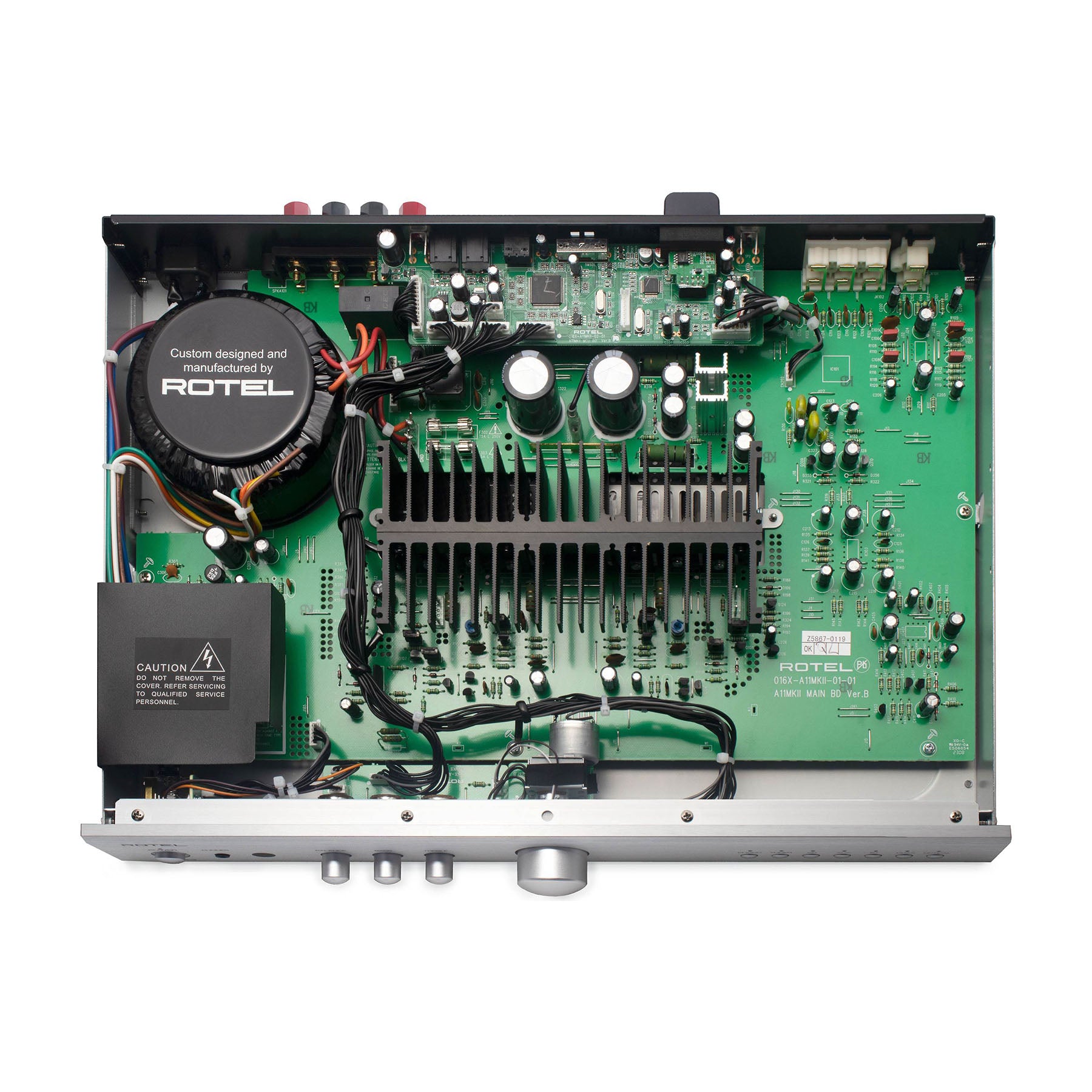

Constructed around a massive Rotel-built toroidal power transformer, the A11MKII delivers 50 Watts per channel of Class A/B power into 8 ohms supporting analog, digital and Moving Magnet Phono stage inputs.

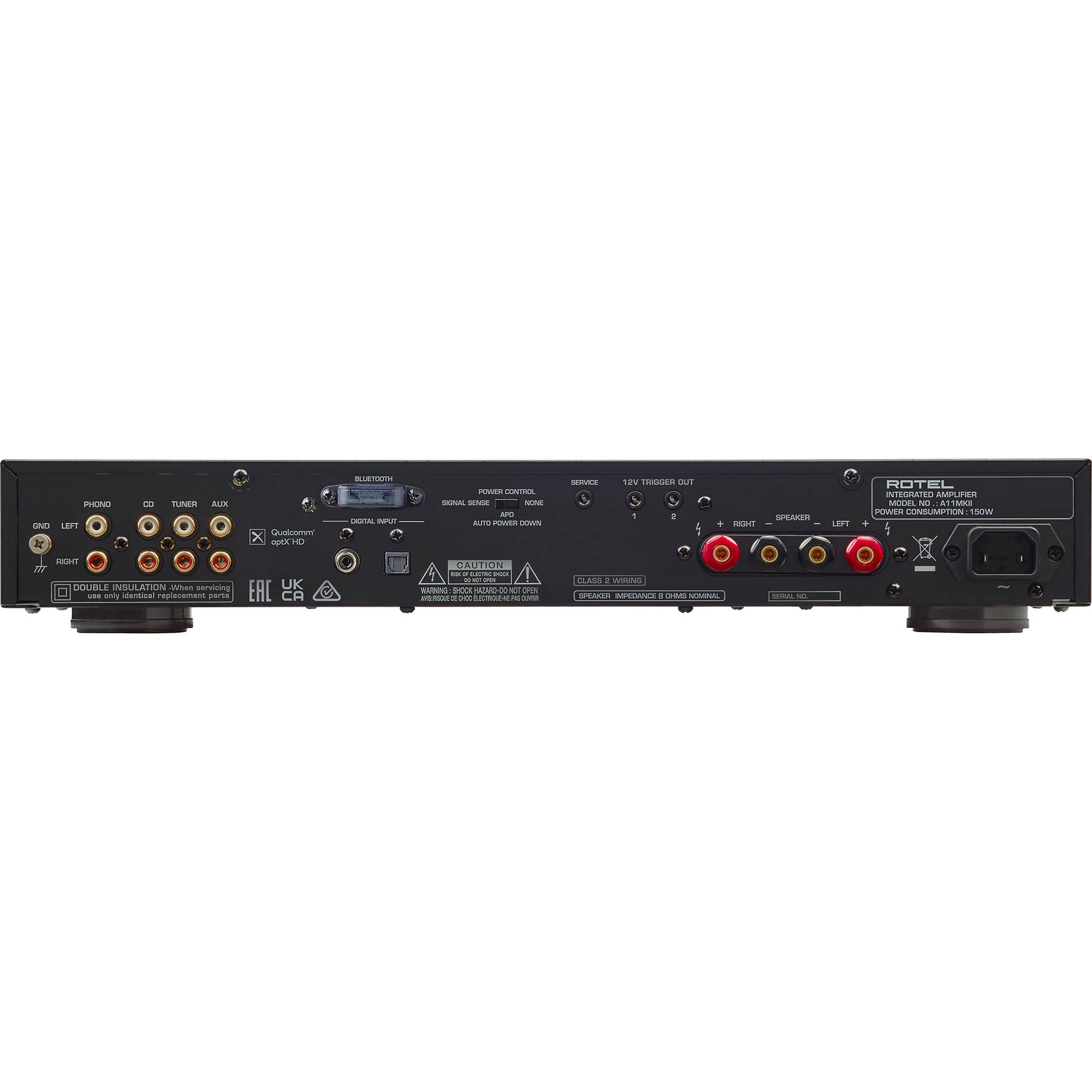

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

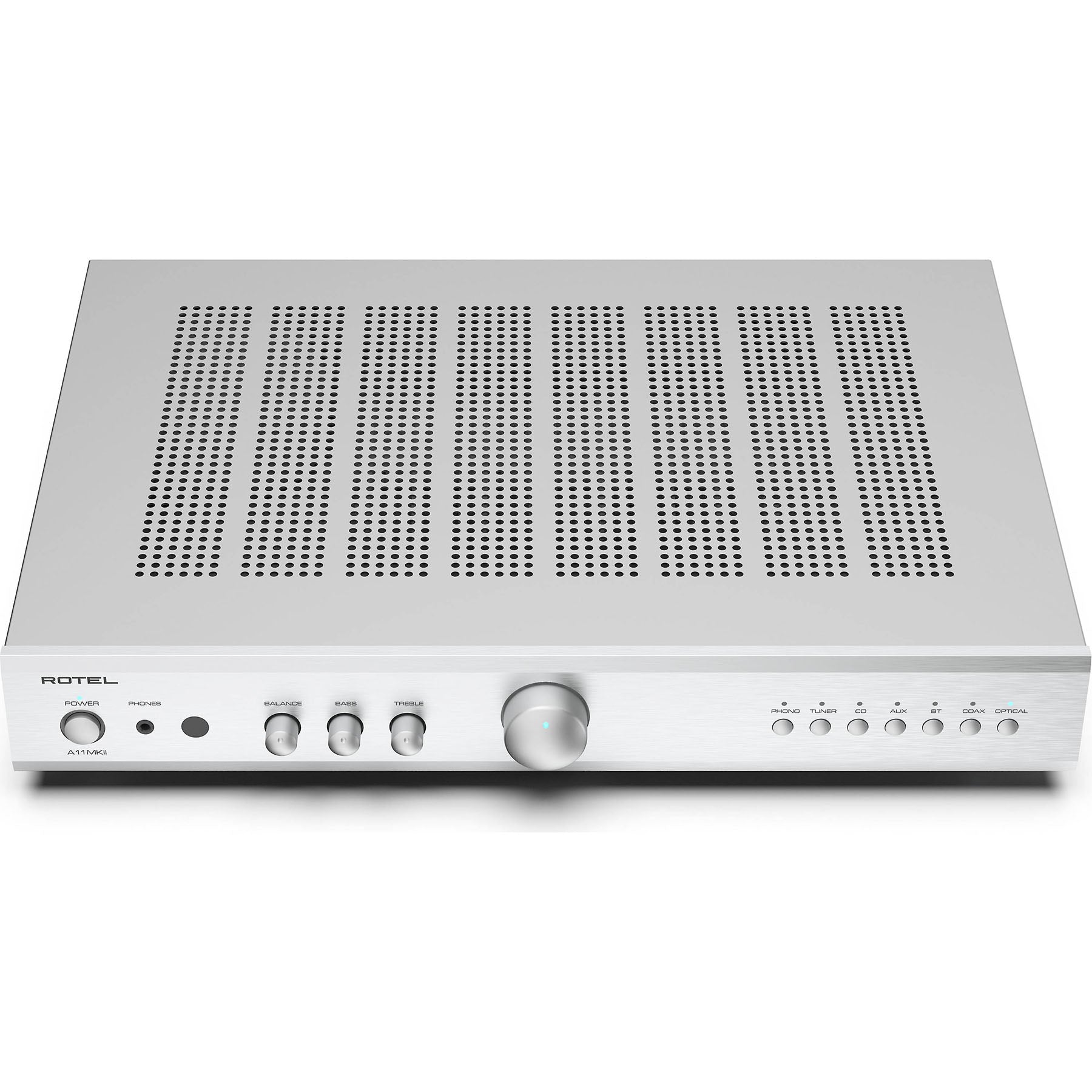

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.

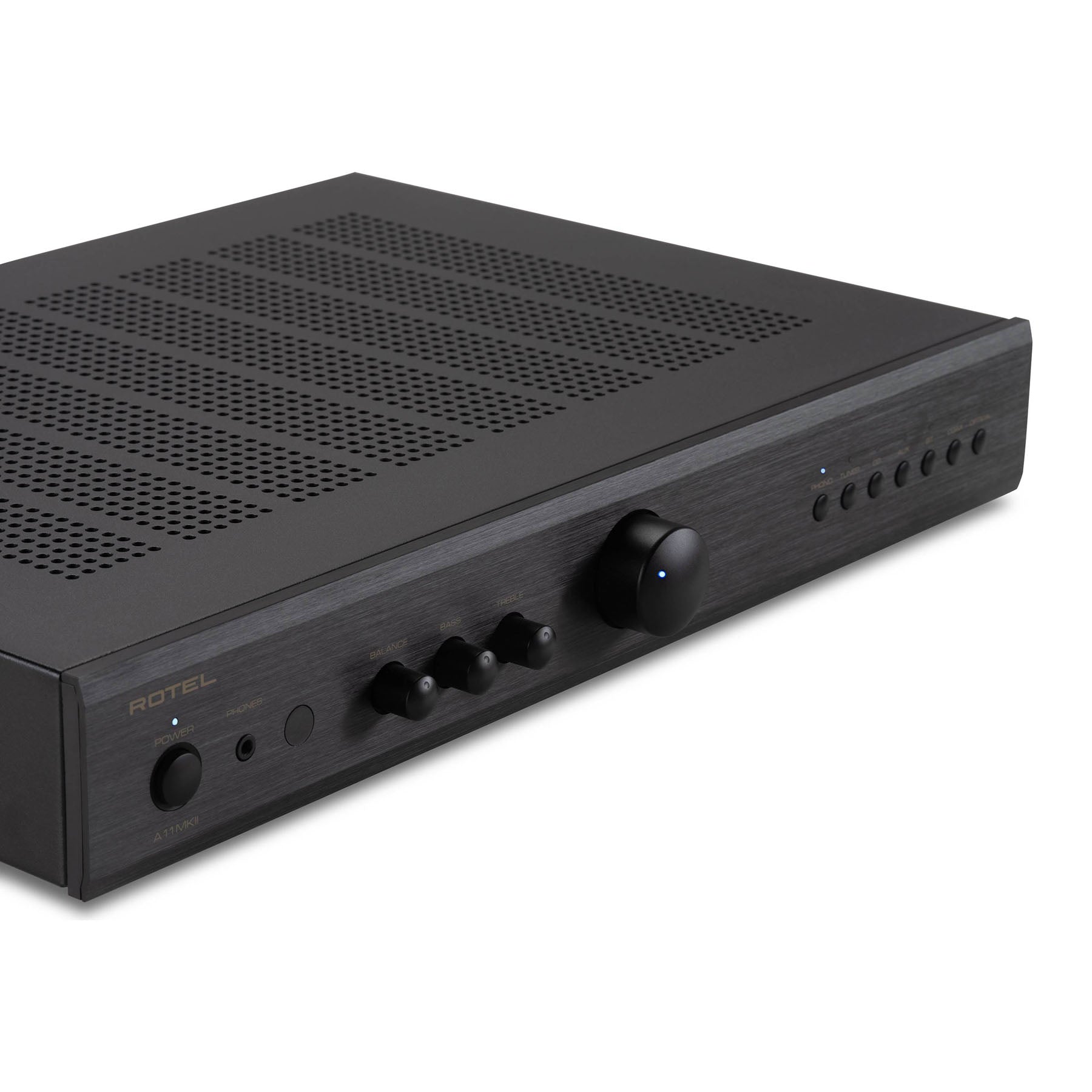

The A11MKII is available in both black and silver colors.
Dimensions (W × H × D)
430 × 73 × 347mm
17” x 2 7/8” x 13 5/8”
Front Panel Height
60 mm (2 3/8”)
Power Requirements
120V, 60Hz
Power Consumption
150W
Standby Power Consumption
<0.5W
Net Weight
6.8kg (15lbs.)
BTU Rating (4Ω, 1/8th power)
450 BTU/h
Power Output
50W/Ch (8Ω)
62W/Ch (4Ω)
Total Harmonic Distortion (THD)
<0.03%
Frequency Response
Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB
Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 90dB
Phono Input: 85dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%
Damping Factor
120
Input Sensitivity
Line Level Inputs: 130mV
Phono Input (MM): 1.6mV
Input Impedance
Line Level Inputs: 45kΩ
Phono Input (MM): 43kΩ
Input Overload
Line Level Inputs: 4V
Phono Input: 50mV
Tone Controls
±6dB at 100Hz / 10kHz
