T3x

Better value than ever!

Packing more than ever into the sleek T-series chassis, T3X includes some serious upgrades!

Why LUMIN T3X

LUMIN T3X takes our award-winning platform and adds even more technology from our flagship players. Now featuring a toroidal linear power supply and optical fibre networking, the new T3X is better value than ever!

Main features

• Features our latest processing system
• Dual ES9028Pro SABRE DAC featuring dual-mono operation
• New integrated toroidal linear power supply
• Fibre Network provides complete isolation from network digital noise
• Dual-Network interface with built-in Network Switch
• Dual USB ports for additional flexibility and digital audio output
• Upsampling and downsampling to every supported format up to DSD256/PCM384
• Leedh Processing Volume control
• Roon Ready, Spotify Connect, MQA, TIDAL, TIDAL Connect, Qobuz, TuneIn and AirPlay-compatible

New upgraded components

Internal ultra-low-noise linear power supply

• First LUMIN T-series player with a built in linear power supply
• Ultra-low-noise and high dynamic range
• Extra large toroidal transformer

Dual Network with Optical Fibre Network support

• Fibre SFP provides complete isolation from network noise
• Use simultaneously with RJ45 as a network switch (e.g. connect one to router and one to LUMIN L1/L2 or NAS)

The latest LUMIN processing system

• The now-proven LUMIN hardware and software system provides all the power needed for the latest streaming technologies.
• Superior processing power and storage capacity provide greater resampling flexibility and future-proofing.

Precision analogue output stage

• Analogue buffer includes LUMIN X1 technology
• Dual-mono circuitry throughout
• Ultra-low-noise and high dynamic range

CNC chassis construction

• The thick CNC panelled construction offers upgraded structural rigidity and sheilding compared to the D3
• CNC milling techniques from LUMIN X1 provide the high-end LUMIN family aesthetic

Upgraded version of the award-winning LUMIN T3

Following the incredible reviews of LUMIN T3, We've now combined it with some of the best features from the rest of our range to make it one of the best value LUMIN Players ever!

T3X features the toroidal linear power supply from the U2, the fibre networking of our flagship players and adds an extra USB port for even more flexibility.

All the usual LUMIN refinements

• From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
• Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
• The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
• LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

Advanced streaming services & technologies

Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Spotify, KKBox, QQMusic, FLAC Radio Stations and more...

Some services may require a subscription payment.

Lossless volume control for all LUMIN players.

An innovative new digital volume adjustment algorithm that eliminates rounding errors is now included (at no additional cost) on all LUMIN players!

DSD Support:

• Up to DSD512 22.6MHz, 1-bit

PCM Support:

• Up to 384kHz, 16–32-bit, Stereo

Analog Output Stage:

• Dual ESS SABRE³² ES9028Pro DAC chips
• Fully balanced layout with high-quality components
• Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range
• Discreet clock system for precision timing
• Precision 32-bit internal digital volume

Upsampling rates & bit depths:

• DSD256 upsampling option for all files
• PCM 384kHz upsampling option for all files

Digital Output Stage:

• USB:

  • Native DSD512 support
  • PCM 44.1–384kHz, 16–32-bit, Stereo

• BNC SPDIF:

  • PCM 44.1kHz–192kHz, 16–24-bit
  • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

• Optical Network:
  • Industry-standard SFP
  • 1000Base-T Gigabit Ethernet
  • Adapter may be needed for your particular switch/cables
  • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

Power Supply:

• Internal toroidal linear
• Low-noise linear regulator
• Shielded power supply compartment for reduced interference with delicate electronics

Physical:

• Finish:

  • Black anodised aluminium
  • Raw anodised aluminium

  Dimensions

  • 350mm (W), 350mm (D), 60.5mm (H), 6kg

Streaming Protocol:

• UPnP AV protocol with audio streaming extension (OpenHome)
• Roon Ready
• TIDAL Connect
• Spotify Connect
• Plāys with Audirvāna
• AirPlay-compatible
• QPlay-compatible for QQMusic
• Gapless Playback
• On-Device Playlist

App Features:

• Native support for TIDAL, MQA, Qobuz, KKBox and TuneIn Radio.
• Tidal MAX and MQA icons to identify high-res music
• Qobuz high-res icons to identify high-res music
• Volume control
• High-resolution artwork
• Artwork caching
• Search
• Multiple tag handling
• Composer tag support
• Album-grouping in playlist
• Automatic internet links to artists/album/songs
• Saving and restoring of playlists (including Tidal and Qobuz)

Supported Audio File Formats:

• DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
• PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
• Compressed (lossy) Audio: MP3
• MQA

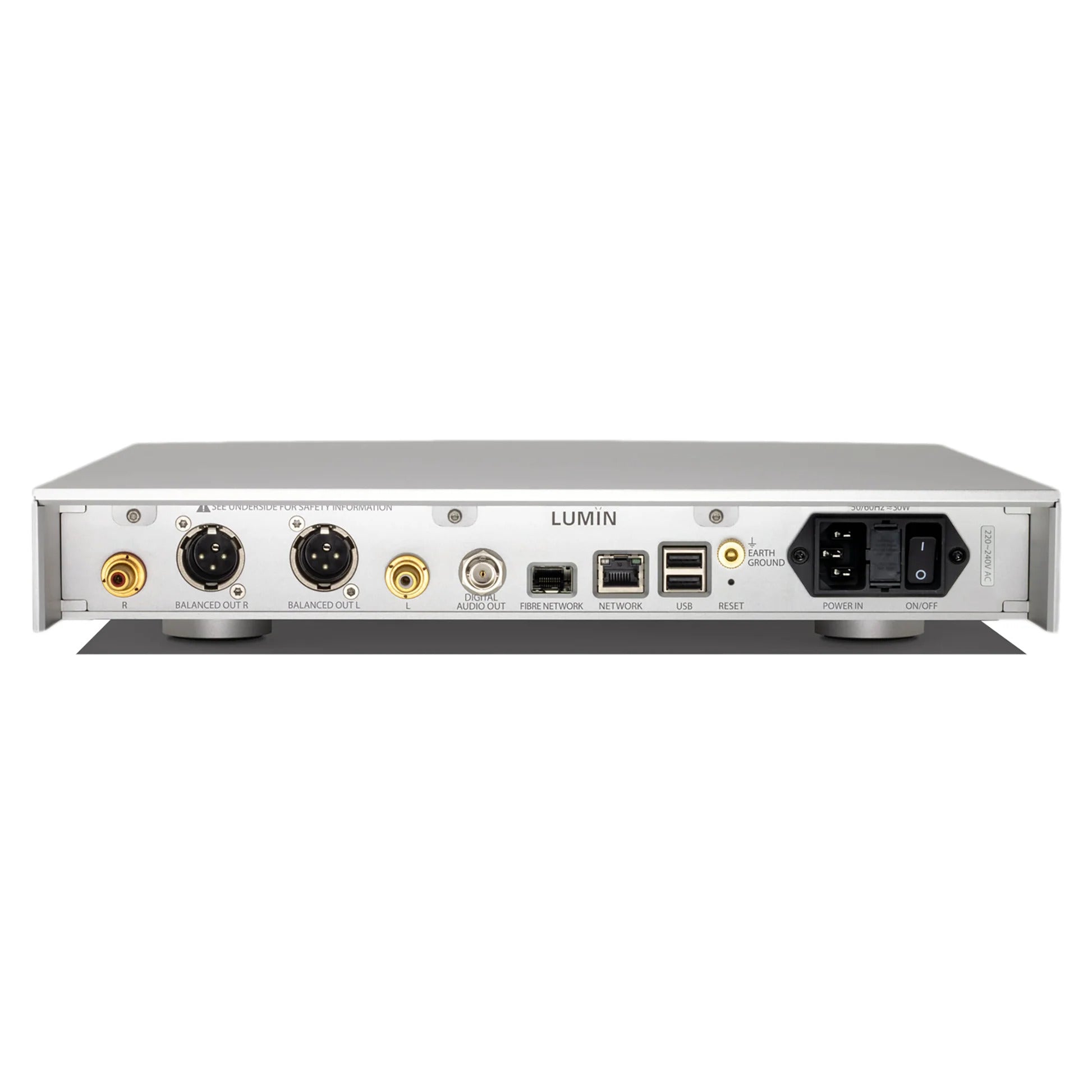

Input:

• Ethernet RJ45 network 1000Base-T
• USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

Analogue Audio Outputs:

• XLR balanced, 6Vrms, pin 2 Hot
• RCA unbalanced, 3Vrms

Supported Control Devices:

• Apple devices. iOS 11.0 or later (List of supported devices)
• Android devices. Android 4.0 (Ice Cream Sandwich) or later required
• Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
• Chromebook. Google Play Store required.

Other:

• Leedh Processing lossless digital volume control
• Programme of Continuous Development – Firmware-upgradable for further features and enhancements
